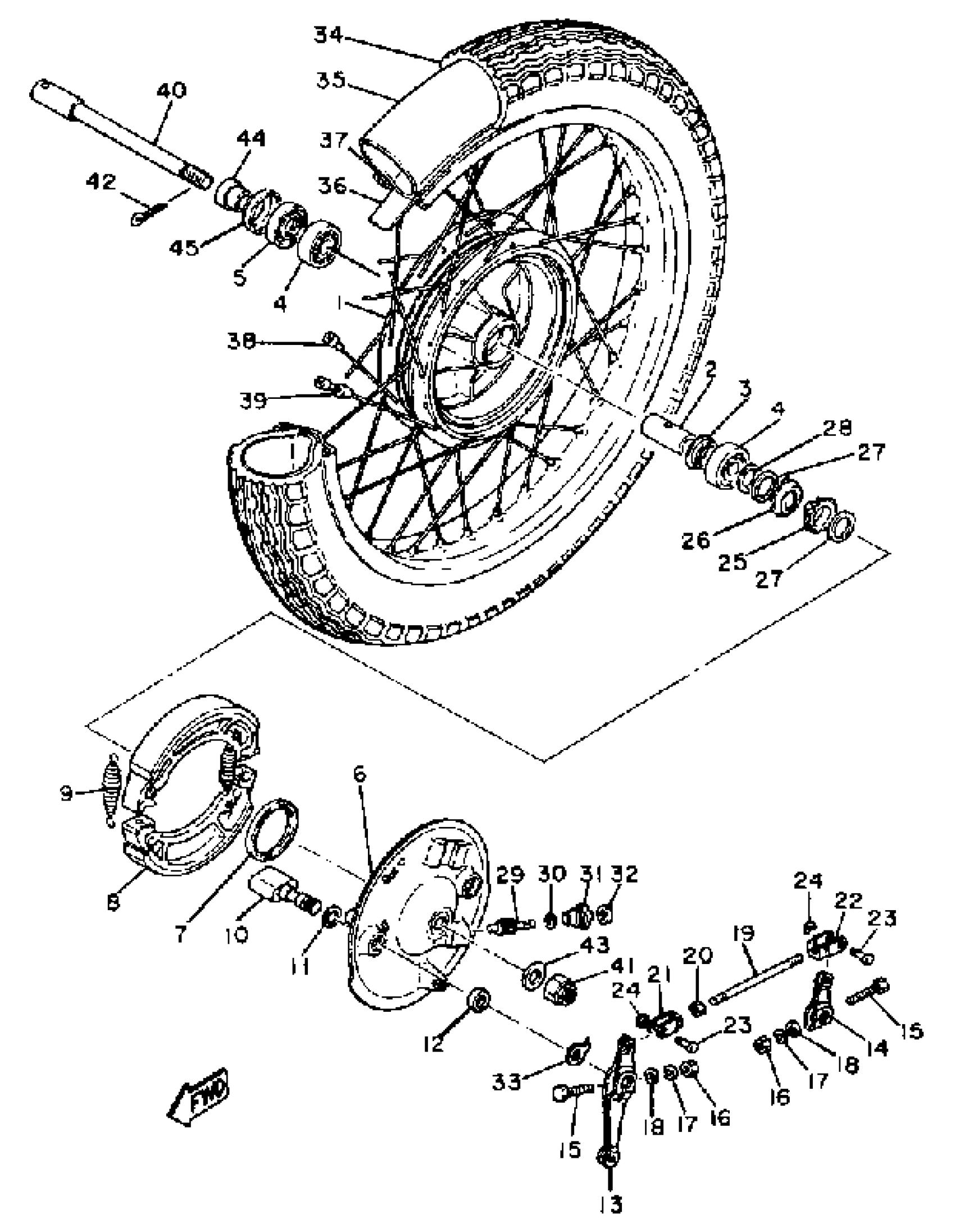

Yamaha XS400H (XS400) XS400H 1981 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

246-25111-00-38

Unavailable

2

SPACER 136253170000

90560-15136-00

Unavailable

3

FLANGE, SPACER

146-25115-00-00

$6.99

4

BEARING

93306-30212-00

$40.99

5

OIL SEAL (22X42X7)

93102-22014-00

$12.49

6

PLATE, BRAKE SHOE

278-25121-01-38

Unavailable

7

OIL SEAL, SDD-TYPE

93105-53013-00

Unavailable

8

BRAKESHOE SET-2PCS

168-W2535-00-00

Unavailable

9

SPRING, TENSION 2462533300

90507-20002-00

$8.49

10

CAMSHAFT

4R5-25151-00-00

Unavailable

11

SHIM, CAM SHAFT

148-25353-00-00

$6.99

12

SEAL, CAM SHAFT

148-25359-00-00

$4.78

13

LEVER,CAMSHAFT 1

168-25155-00-00

Unavailable

14

LEVER, CAMSHAFT 2

246-25156-00-00

Unavailable

15

BOLT(3RV)

97014-06035-00

$2.75

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

ROD, CONNECTING

152-25161-00-00

Unavailable

20

NUT(650)

95380-06700-00

Unavailable

21

END, ROD 1

152-25163-00-00

Unavailable

22

END, ROD 2

152-25164-00-00

Unavailable

23

PIN, SPEC'L SHAPE

90249-06095-00

Unavailable

24

CIRCLIP (EU0)

99080-04600-00

Unavailable

25

GEAR, DRIVE

246-25135-00-00

Unavailable

26

CLUTCH, METER

246-25149-00-00

Unavailable

27

WASHER PLATE 214251470000

90201-22283-00

Unavailable

28

CIRCLIP(1EY)

99009-22400-00

Unavailable

29

GEAR, METER

214-25138-00-00

Unavailable

30

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

31

BUSHING

109-25136-00-00

Unavailable

32

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

33

PLATE, INDICATOR

4R5-2513A-00-00

Unavailable

34

300-18 YOKO Y986

94130-18363-00

Unavailable

35

TUBE (5H5)

94227-18195-00

Unavailable

36

BAND, RIM (2J4)

94340-18086-00

Unavailable

37

RIM 1.60X18

94416-18013-00

Unavailable

38

SPOKE SET, FRONT

152-25104-00-00

Unavailable

39

BALANCER, WHEEL

3HT-25398-00-00

Unavailable

40

AXLE, WHEEL

2V6-25181-00-00

Unavailable

41

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

42

PIN, COTTER

91490-30030-00

Unavailable

43

WASHER, PLAIN

92990-14200-00

Unavailable

44

COLLAR

90387-15586-00

Unavailable

45

COVER, DUST

401-25367-00-00

Unavailable
