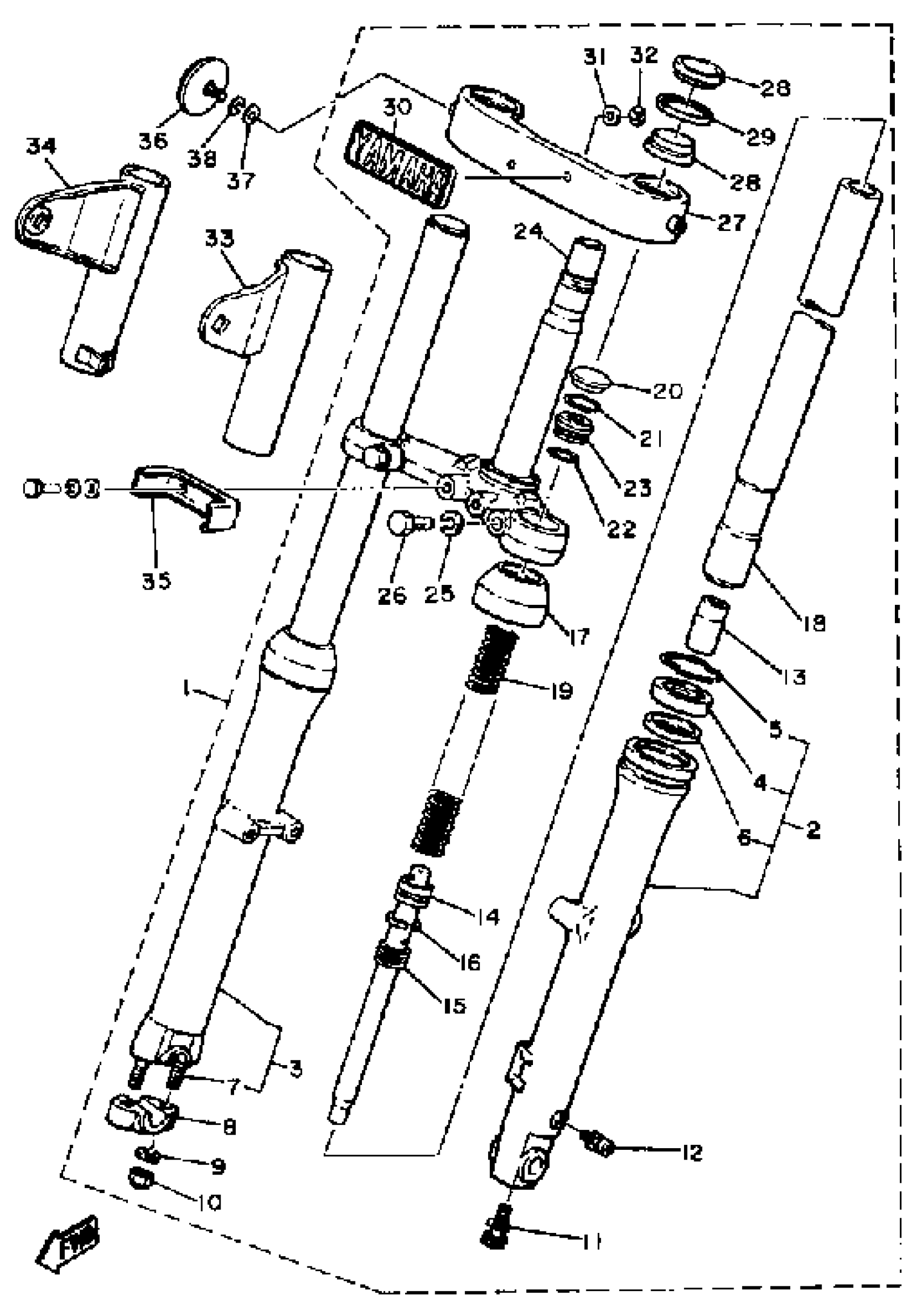

Yamaha XS400H (XS400) XS400H 1981 FRONT FORK Diagram

#

Description

Price

1

FRONT FORK ASY

3F8-23101-00-00

Unavailable

2

TUBE, OUTER 1

1T6-23126-00-38

Unavailable

3

TUBE, OUTER 2

1T6-23136-00-38

Unavailable

4

OIL SEAL

1L9-23145-00-00

$25.99

5

. CLIP, OIL SEAL

1L9-23156-00-00

Unavailable

6

. WASHER, OIL SEAL

1L9-23146-00-00

Unavailable

7

.. BOLT, STUD

90116-08260-00

Unavailable

8

. HOLDER, AXLE

1E7-23167-00-00

Unavailable

9

.. WASHER, PLATE

92990-08600-00

Unavailable

10

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

11

BOLT

3M7-23181-00-00

$8.99

12

. PLUG, DRAIN

1E7-23119-00-00

Unavailable

13

. SPACER, OIL LOCK

1L9-23166-00-00

Unavailable

14

CYLINDER, FRONT FORK

1L9-23170-02-00

Unavailable

15

SPRING, REBOUND

1E7-23151-00-00

Unavailable

16

RING, PISTON FRONT FORK

1E7-23157-00-00

Unavailable

17

SEAL, DUST

1L9-23144-00-00

Unavailable

18

. INNER TUBE 1

2L0-23110-00-00

Unavailable

19

. SPRING, FRONT FORK

2L0-23141-00-00

Unavailable

20

. CAP, FRONT FORK

1L9-23168-00-00

Unavailable

21

RING, STOPPER

1L9-23183-00-00

Unavailable

22

O-RING

1L9-23114-00-00

Unavailable

23

SEAT, SPRING

1L9-23111-00-00

Unavailable

24

. UNDER BRKT

3N6-23340-30-90

Unavailable

25

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

26

BOLT(N02)

97070-10035-00

Unavailable

27

. COVER, OUTER 1

2L0-23122-00-93

Unavailable

28

. GASKET

2L0-23163-00-00

Unavailable

29

. GUIDE, COVER LOWER

2L0-23116-00-00

Unavailable

30

. EMBLEM

2M0-23395-00-00

Unavailable

31

WASHER PLATE 174283160000

90202-04003-00

Unavailable

32

NUT SPRING 116283170100

90183-04005-00

Unavailable

33

COVER, UPPER 1

3F9-23121-00-93

Unavailable

34

COVER, UPPER 2

3F9-23131-00-93

Unavailable

35

HOLDER, CABLE 1

2L0-23318-00-00

Unavailable

36

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

37

. WASHER, PLAIN

92990-05200-00

Unavailable

38

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable
