Description

Price

1

MUFFLER ASY L

3F9-14710-80-00

Unavailable

2

BOLT, SOCKET

91317-08025-00

$8.49

3

MUFFLER ASY R

3F9-14720-80-00

Unavailable

4

GASKET, EXHAUST

1L9-14613-10-00

$14.49

5

FLANGE, EXST PIPE

1J7-14614-00-00

Unavailable

6

NUT(6L2)

95333-08600-00

$2.49

7

GASKET, MUFFLER

3YF-14714-00-00

$36.99

8

STAY, MUFFLER 1

4R4-14771-01-00

Unavailable

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

NUT(6L2)

95333-08600-00

$2.49

11

DAMPER, FOOTREST

4R4-27414-00-00

Unavailable

12

COLLAR (2H7)

90387-10636-00

$14.99

13

BOLT, FLANGE

95814-10040-00

$4.72

14

WASHER, PLATE (2H7)

90201-10669-00

$8.49

15

STOPPER MAIN STAND

278-27114-00-00

$8.99

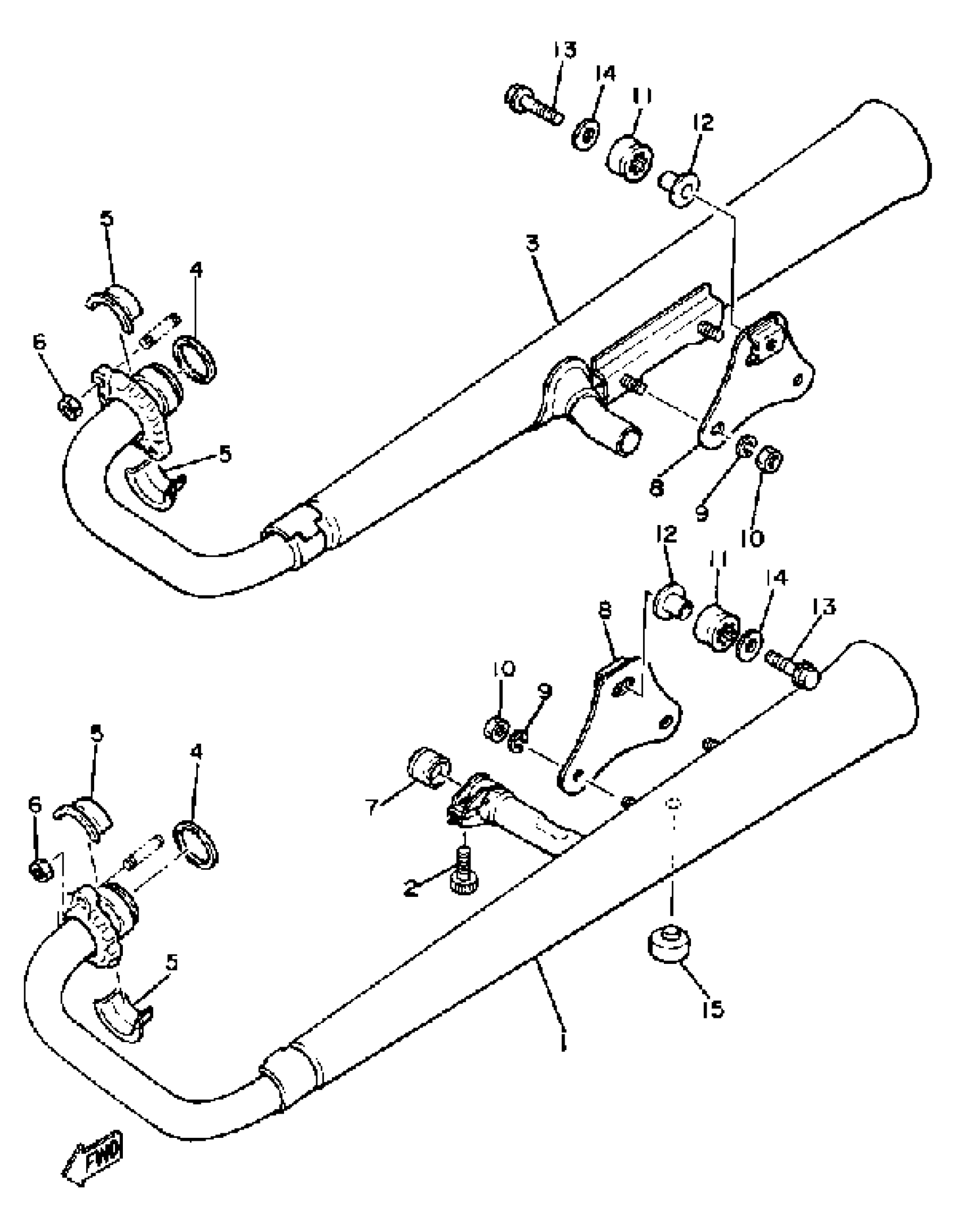

Yamaha XS400H (XS400) XS400H 1981 EXHAUST Diagram

MUFFLER ASY L

BOLT, SOCKET

MUFFLER ASY R

GASKET, EXHAUST

FLANGE, EXST PIPE

NUT(6L2)

GASKET, MUFFLER

STAY, MUFFLER 1

YBS67-8 WASHER, SPRING

NUT(6L2)

DAMPER, FOOTREST

COLLAR (2H7)

BOLT, FLANGE

WASHER, PLATE (2H7)

STOPPER MAIN STAND
