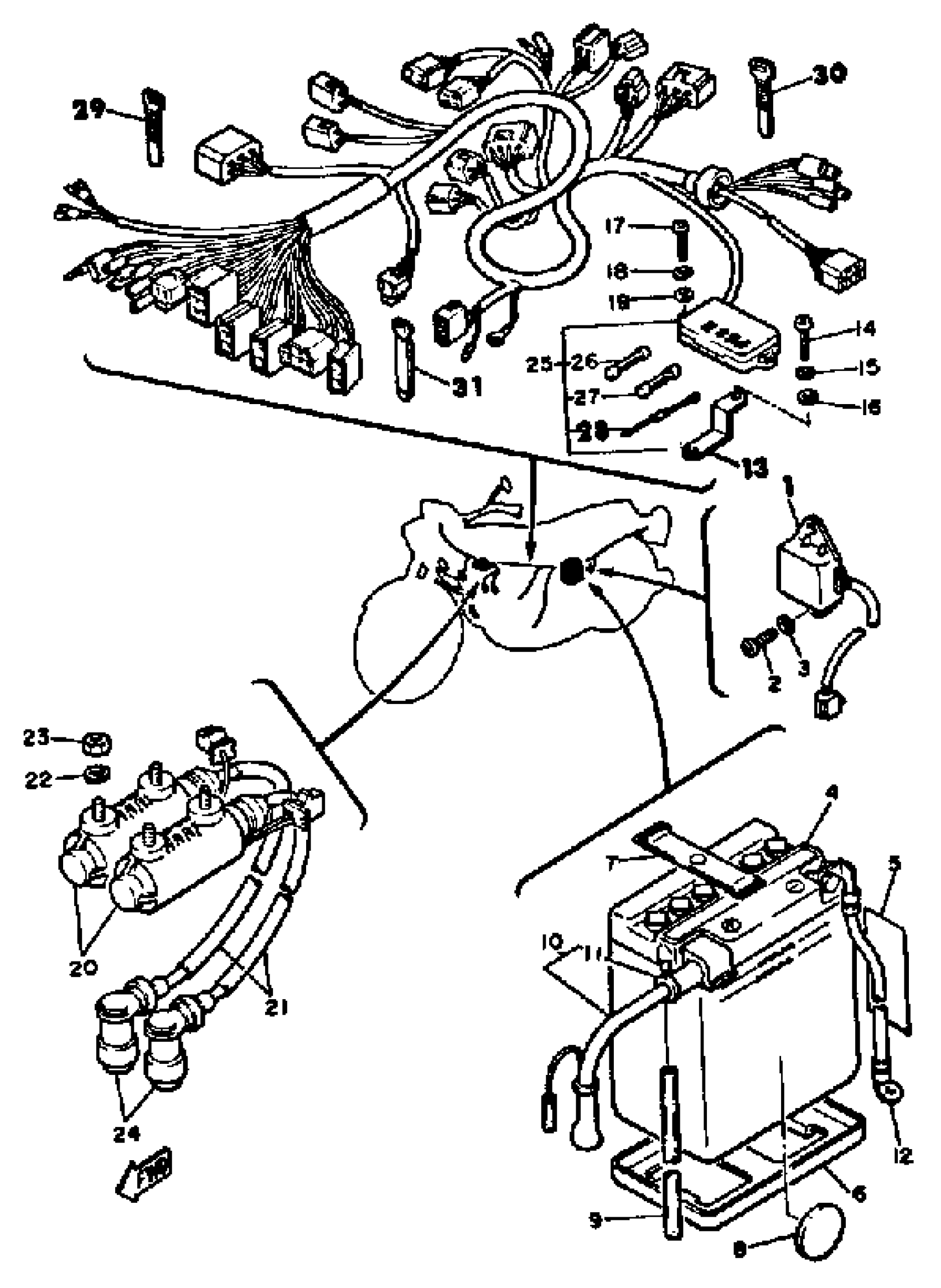

Yamaha XS400H (XS400) XS400H 1981 ELECTRICAL 1 Diagram

#

Description
Price

1

VOLTAGE REG ASSY

2L0-81910-50-00

Unavailable

2

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

3

WASHER, SPRING

92995-06100-00

Unavailable

4

12N12A-4A-1 YUASA BATTERY

12N-12A4A-1Y-00

Unavailable

5

LABEL, BATTERY

40A-82141-G0-00

Unavailable

6

SEAT, BATTERY

1L9-82122-00-00

Unavailable

7

BAND, BATTERY

26L-82131-00-00

$7.99

8

PAD, BATTERY

371-82121-00-00

$8.99

9

HOSE (L1500)

90445-084J0-00

$18.99

10

WIRE, PLUS (POS) LEAD

2L0-82115-00-00

Unavailable

11

COVER, LEAD WIRE

1L9-82119-00-00

Unavailable

12

WIRE, EARTH LEAD

1L9-82116-01-00

Unavailable

13

STAY, FUSE BOX

2L0-82171-00-00

Unavailable

14

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

18

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

19

WASHER, PLAIN (646)

92990-05600-00

Unavailable

20

IGNITION COIL ASSY

4GR-81958-00-00

Unavailable

21

CORD, HIGH TENSION 1

4X7-82341-00-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

25

WIRE HARNESS ASSY

4R4-82590-51-00

Unavailable

26

FUSE

1A0-82161-00-00

Unavailable

27

FUSE

1A0-82151-00-00

Unavailable

28

RECTIFIER 2

3H5-81980-00-00

Unavailable

29

BAND, SWITCH CORD

437-83936-01-00

Unavailable

30

BAND, SWITCH CORD

437-83936-11-00

Unavailable

31

BAND

341-26397-01-00

Unavailable
