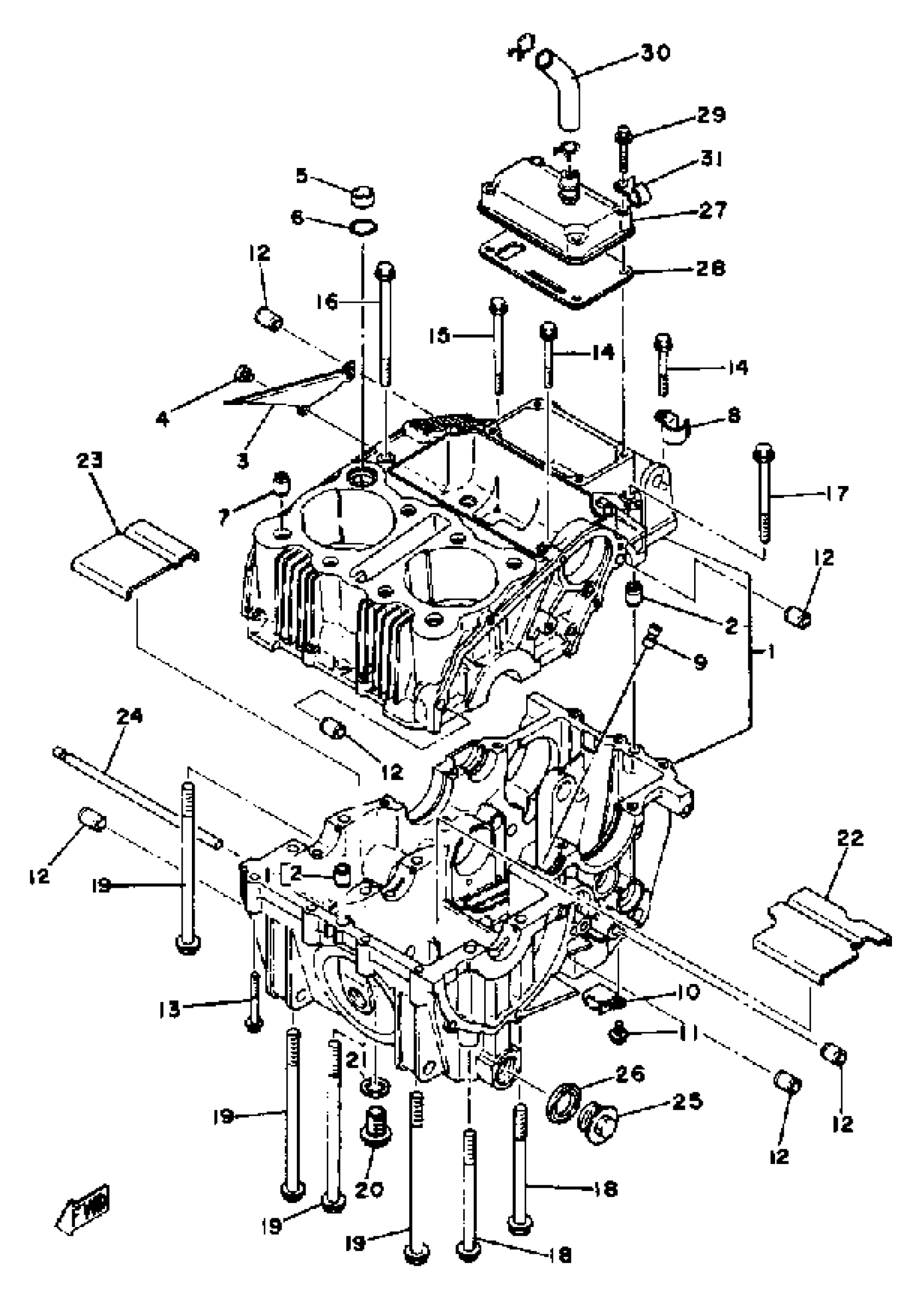

Yamaha XS400H (XS400) XS400H 1981 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASY
4R4-15100-00-00
Unavailable
3
COVER, OIL PUMP
1L9-15412-00-00
Unavailable
4
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
8
CLAMP (1L9)
90465-10092-00
Unavailable
9
NOZZLE 1
1L9-15138-01-00
Unavailable
10
CLAMP
90465-10110-00
Unavailable
11
BOLT, WASHER BASED HEXAGON 1L9
90105-06069-00
Unavailable
15
BOLT, WASHER BASED
90105-06076-00
Unavailable
16
BOLT, WASHER BASED
90105-06077-00
Unavailable
17
BOLT, FLANGE(JF2)
95817-08080-00
Unavailable
18
BOLT, WASHER BASED
90105-08082-00
Unavailable
19
BOLT, WASHER BASED
90105-08084-00
Unavailable
20
BOLT
90109-14385-00
Unavailable
21
GASKET 256131670000
90430-14043-00
Unavailable
22
PLATE, BUFFLE 1
1L9-15123-00-00
Unavailable
23
PLATE, BUFFLE 2
1L9-15124-00-00
Unavailable
24
BAR, BFL PLATE FXD
1L9-15122-00-00
Unavailable
25
PLUG, STRAIGT SCREW (2A2)
90340-22047-00
Unavailable
26
GASKET (1L9)
90430-22144-00
Unavailable
27
BREATHER COVER ASY
1L9-11108-00-00
Unavailable
28
GASKET, BRTHR COVER
1L9-11169-00-00
Unavailable
29
BOLT, FLANGE
95817-06030-00
Unavailable
30
PIPE, BREATHER 1
2L0-11166-00-00
Unavailable
31
CLAMP
90465-08111-00
Unavailable
