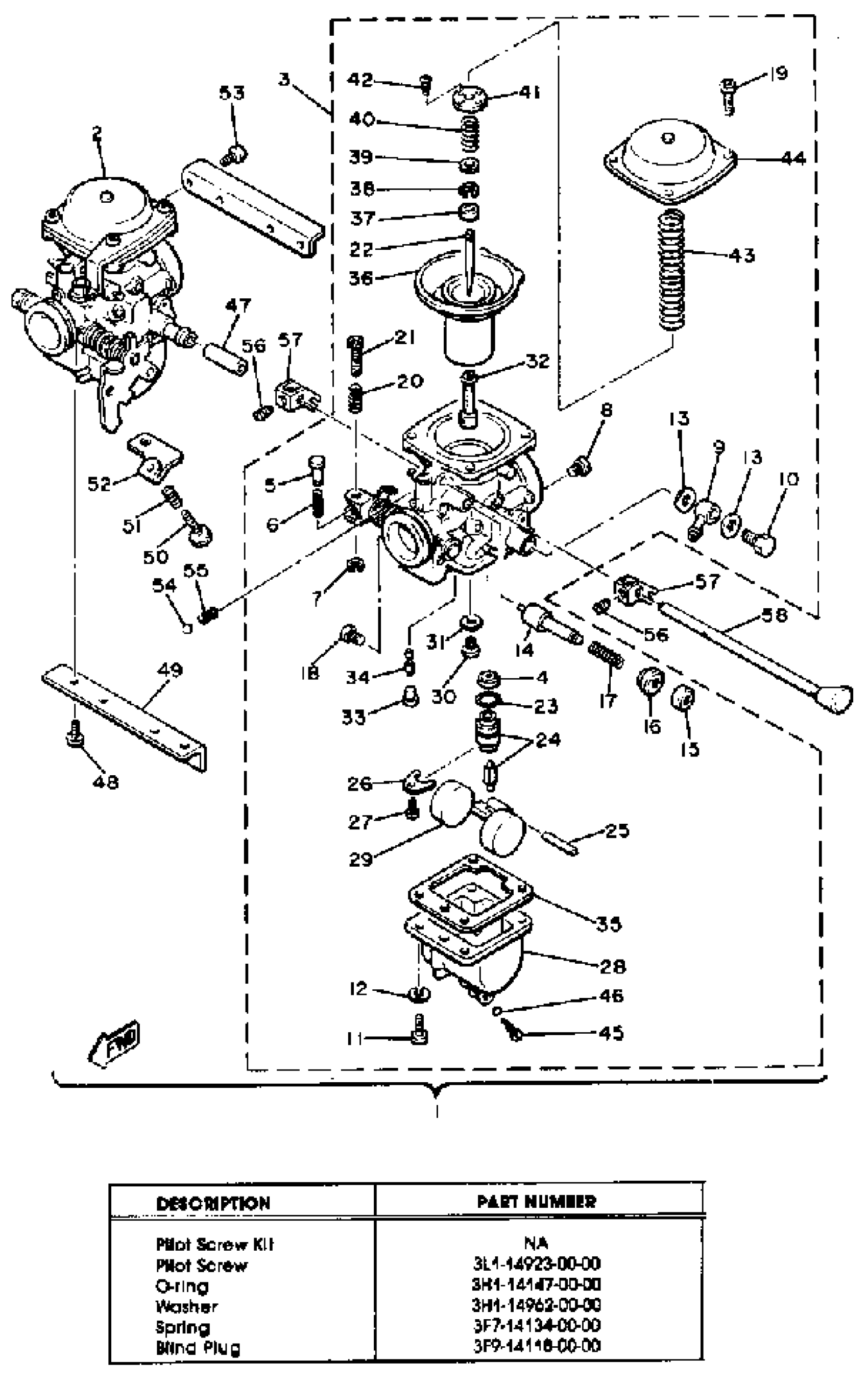

Yamaha XS400H (XS400) XS400H 1981 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY COMPLETE

3F9-14900-00-00

Unavailable

2

. CARBURETOR ASSY 2

3F9-14902-00-00

Unavailable

3

. CARBURETOR ASSY 1

3F9-14901-00-00

Unavailable

4

NET, FILTER

1J7-14994-00-00

$27.99

5

. ROD, PUSH

584-14992-00-00

Unavailable

6

. SPRING, ADJUSTER

584-14934-00-00

Unavailable

7

. CLIP

256-14937-00-00

Unavailable

8

JET, MAIN (#160)

3G2-14231-32-00

Unavailable

9

PIPE, STARTER CON

3F7-14988-00-00

Unavailable

10

.. BOLT, BANJO

1L9-14166-00-00

Unavailable

11

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

WASHER

256-14956-01-00

$7.99

14

.. PLUNGER, STARTER

3F7-14171-00-00

Unavailable

15

.. COVER, PLUNGER CAP

3F7-14173-00-00

Unavailable

16

.. CAP, PLUNGER

3F7-14174-00-00

Unavailable

17

.. SPRING, PLUNGER

3F7-14135-00-00

Unavailable

18

SCREW, CYL. HEAD

98302-05006-00

Unavailable

19

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

20

. SPRING, THROTTLE STOP

3F7-14133-00-00

Unavailable

21

. STOP SCREW SET

12R-1490K-00-00

Unavailable

22

NEEDLE

452-14116-09-00

Unavailable

23

O-RING

8F2-14147-00-00

Unavailable

24

NEEDLE VALVE SET

25G-14107-20-00

Unavailable

25

PIN, FLOAT

537-14186-00-00

Unavailable

26

. PLATE

2H0-14146-00-00

Unavailable

27

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

28

BODY, FLOAT CHAMBER

3F7-14981-07-00

Unavailable

29

FLOAT

3F7-14985-00-00

Unavailable

30

.. JET,MAIN #135

620-14231-27-A0

Unavailable

31

WASHER,MAIN JET

137-14153-00-00

Unavailable

32

NOZZLE, MAIN

2A2-14941-92-00

Unavailable

33

SCREW, PLUG

3F7-14991-00-00

Unavailable

34

.. JET, PILOT #425

256-14142-42-A0

Unavailable

35

GASKET, FLOAT CHAMBER

3F7-14984-00-00

Unavailable

36

.. DIAPHRAGM ASY

3F7-14940-01-00

Unavailable

37

RING, NEEDLE

3F7-14918-00-00

Unavailable

38

CLIP

256-14919-00-00

Unavailable

39

WASHER, PLATE (7Y2)

90201-037F2-00

Unavailable

40

SPRING, NEEDLE

3F7-14589-00-00

Unavailable

41

PLATE, DIAPHRAGM

3F7-14936-00-00

Unavailable

42

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

43

.. SPRING, DIAPHRAGM

3F7-14933-00-00

Unavailable

44

. COVER, DIAPHRAGM

3F7-14958-01-00

Unavailable

45

SCREW

2L1-14191-00-00

Unavailable

46

O-RING

214-14147-00-00

Unavailable

47

HOSE

1L9-14987-00-00

Unavailable

48

SCREW, PAN

98507-06014-00

Unavailable

49

PLATE

1L9-14146-00-00

Unavailable

50

. THROTTLE SCREW SET

11H-14103-00-00

Unavailable

51

. , SPRING, THROTTLE STOP

3F7-14934-00-00

Unavailable

52

BRACKET

3F7-14995-00-00

Unavailable

53

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

54

BALL

93501-08001-00

Unavailable

55

SPRING

583-14589-00-00

Unavailable

56

. SCREW

2F3-14991-00-00

Unavailable

57

. LEVER, STARTER

3F7-14905-00-00

Unavailable

58

. SHAFT, STARTER LVR

2A2-14977-00-00

Unavailable
