1980 Yamaha XS400 (XS400G) Headlight Diagram

← All diagrams

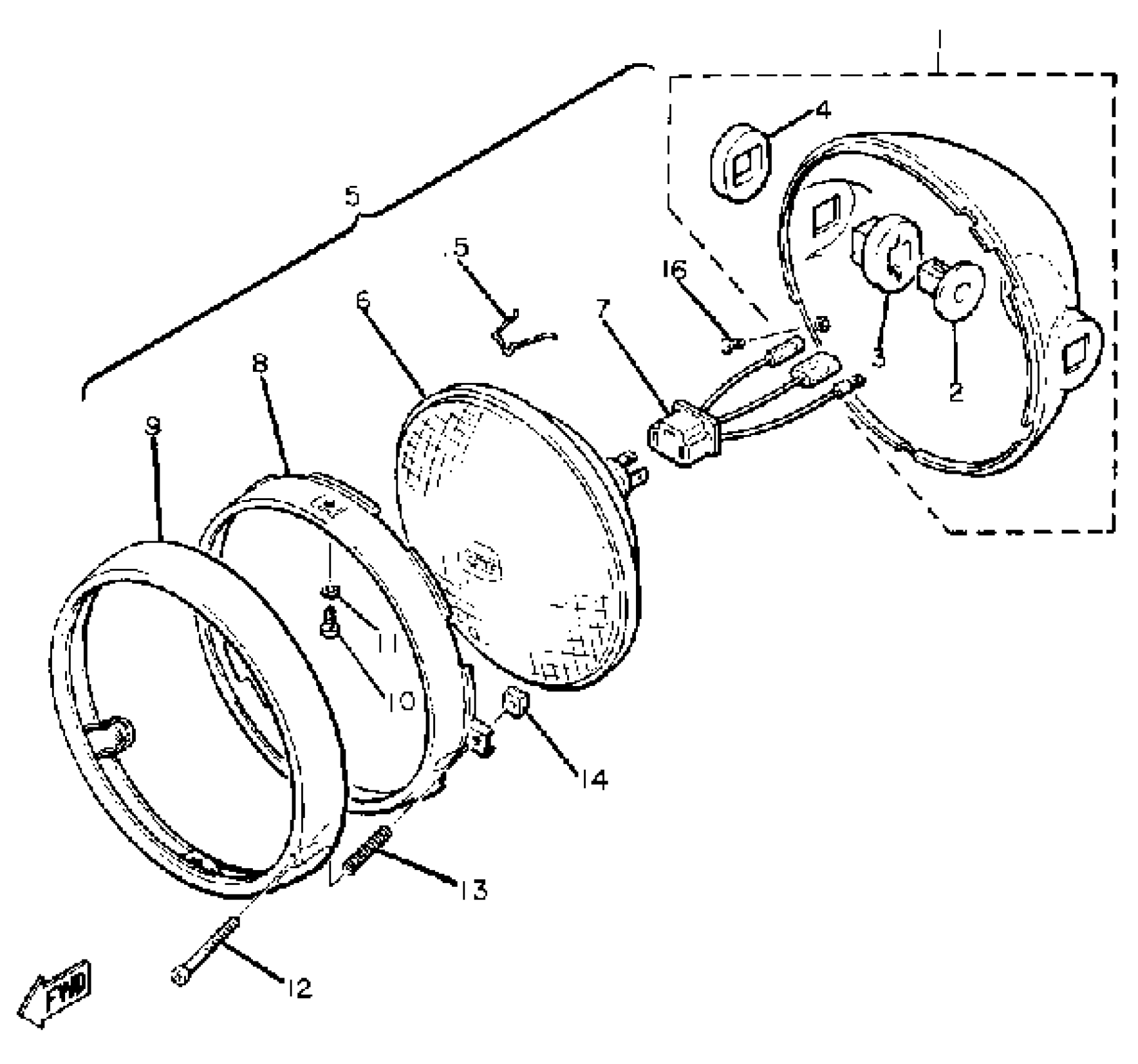

Find the part on the Headlight diagram for your 1980 Yamaha XS400 (XS400G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha XS400 (XS400G) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY

1A0-84330-60-33

1
Out of stock

2

COLLAR, BODY FITTING

498-84145-60-00

1
Out of stock

3

DAMPER, HEAD LAMP A

498-84163-60-00

1
Out of stock

4

DAMPER, HEAD LAMP B

498-84164-60-00

1
Out of stock

5

HEADLIGHT UNIT ASSY

1A0-84310-61-00

1
Out of stock

6

. LENS ASSY

1A0-84320-61-00

1
Out of stock

7

SOCKET

371-84312-60-00

—
Out of stock

8

. RING, RETAINING

1A0-84395-60-00

1
Out of stock

9

. RIM, HEADLIGHT

1A0-84315-60-00

1
Out of stock

10

. SCREW

438-84194-60-00

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

SCREW 214841316100

90157-04001-00

1
Out of stock

13

SPRING, COMPRESSION (ITALY)

447-84332-60-00

1
Out of stock

14

NUT, ADJUST

198-84334-60-00

1
Out of stock

15

SPRING, SET

1UY-84124-00-00

1
Out of stock

16

SCREW, OVAL HEAD (1A0)

90152-05005-00

—
Out of stock
