1980 Yamaha XS400 (XS400G) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1980 Yamaha XS400 (XS400G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

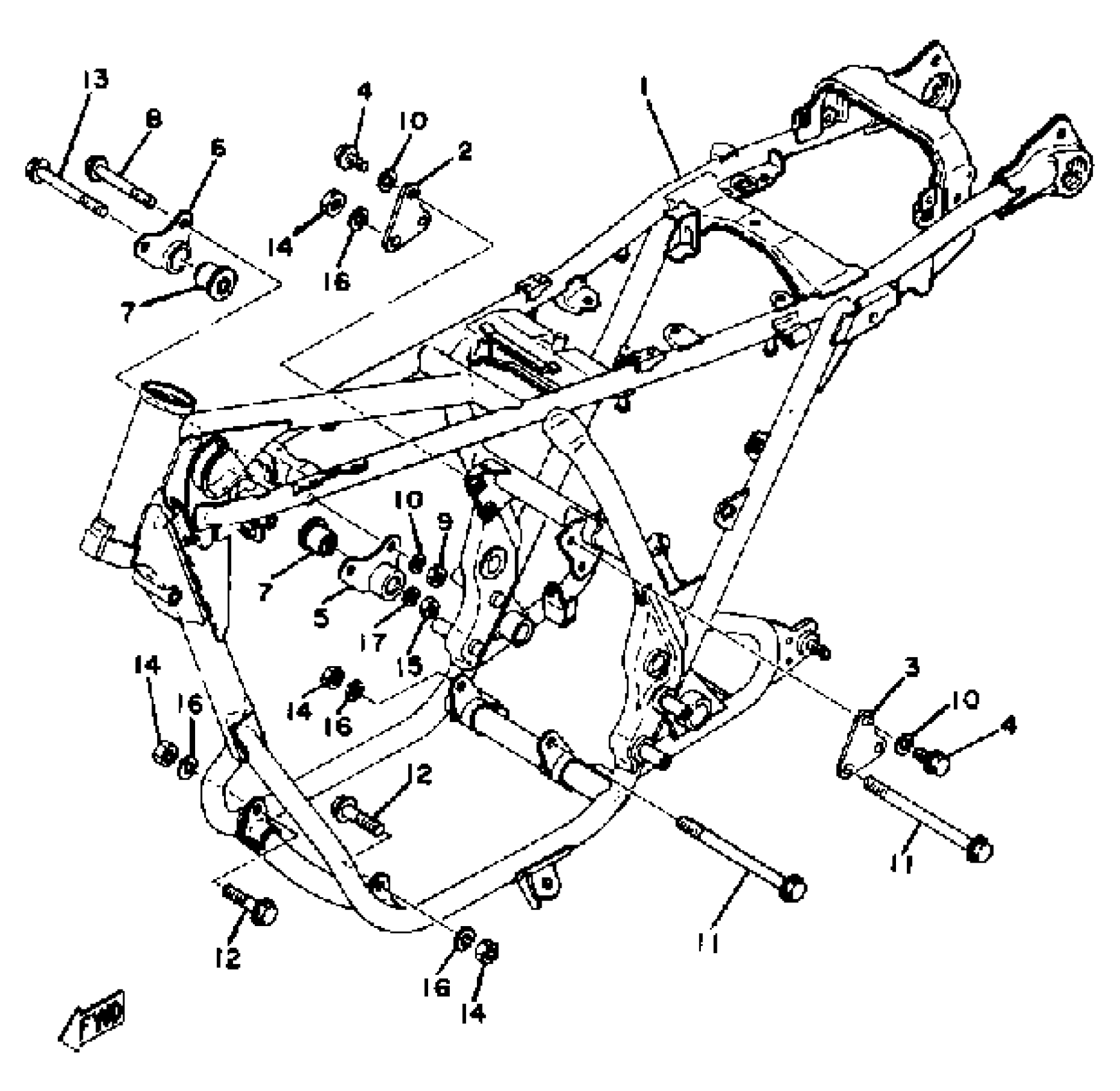

1980 Yamaha XS400 (XS400G) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(3F9-21110-00-33)

1
Out of stock

2

STAY, ENGINE 2

(1L9-21315-00-00)

1
Out of stock

3

STAY, ENGINE 2

(2A2-21315-00-00)

1
Out of stock

4

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

5

STAY, ENGINE 3

1L9-21316-01-00

1
Out of stock

6

STAY, ENGINE 4

(1L9-21317-01-00)

1
Out of stock

7

DAMPER, ENG MOUNT 1

1A1-15316-00-00

1
Out of stock

8

BOLT, FLANGE(JN5)

95817-08070-00

1

$3.20

In stock

9

NUT(6L2)

95333-08600-00

1

$3.20

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

BOLT, FLANGE

(95821-10145-00)

1
Out of stock

12

BOLT, FLANGE(4GB)

95817-10045-00

1

$4.52

In stock

13

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

14

NUT

90170-10011-00

1

$6.29

In stock

15

NUT(6L2)

95333-08600-00

1

$3.20

In stock

16

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock
