1979 Yamaha XS400 (XS400F) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1979 Yamaha XS400 (XS400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

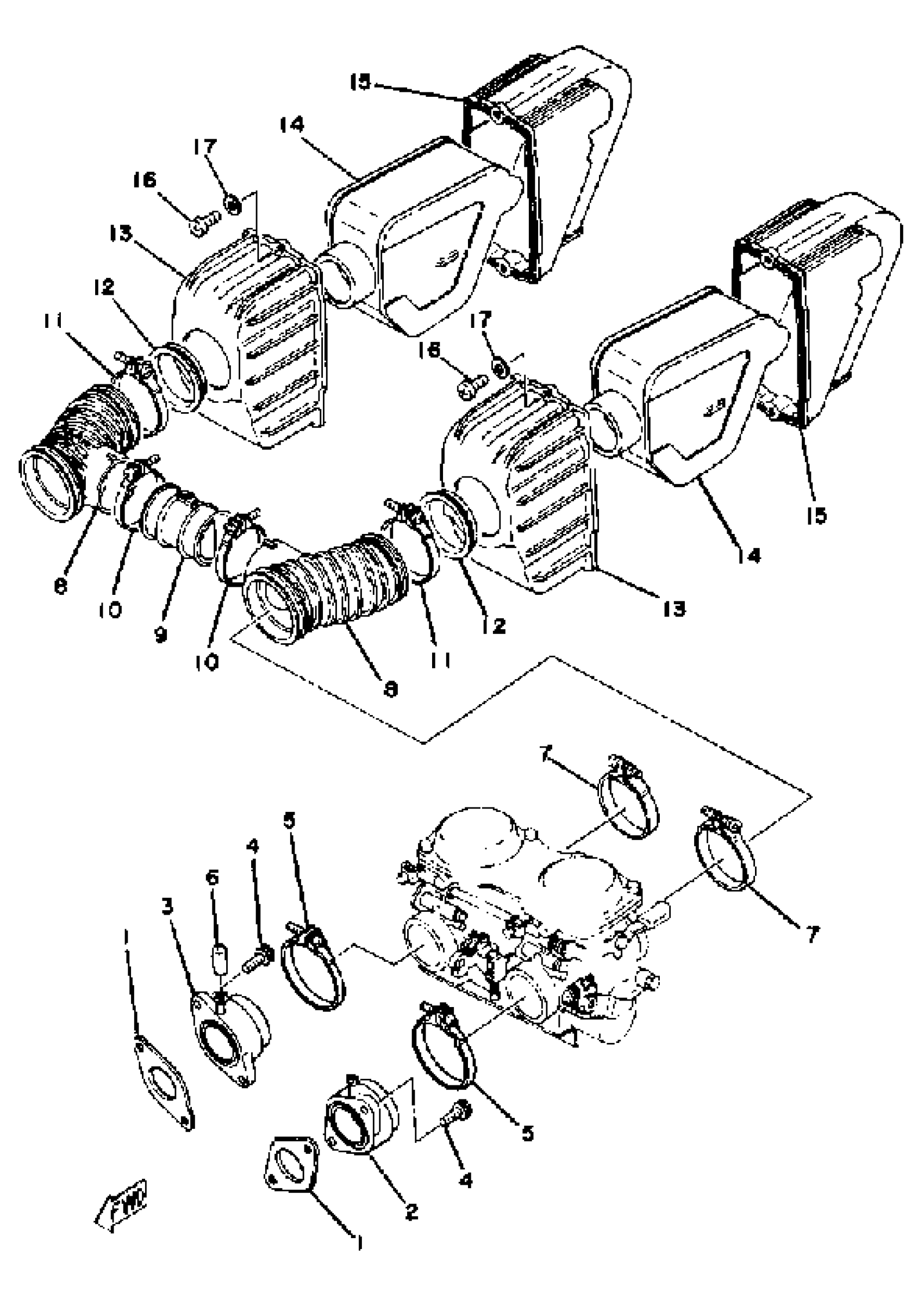

1979 Yamaha XS400 (XS400F) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

1L9-13556-10-00

1

$5.38

In stock

2

JOINT, CARBURETOR 1

2A2-13586-00-00

1
Out of stock

3

JOINT, CARBURETOR (R.H)

2A2-13596-00-00

1

$78.35

In stock

4

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

5

CLAMP, HOSE

90460-51131-00

1
Out of stock

6

PLUG, BLIND

16G-13569-00-00

1
Out of stock

7

HOSE CLAMP ASSY

90450-58002-00

1

$15.11

In stock

8

JOINT, AIR CLNR 1

2L0-14453-00-00

1
Out of stock

9

WAY, 3

90413-40002-00

1
Out of stock

10

HOSE CLAMP ASSY(10F)

90450-45075-00

1

$4.15

In stock

11

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

12

GROMMET

90480-50194-00

1
Out of stock

13

CASE, AIR CLEANER 1

2A2-14411-00-00

1
Out of stock

14

ELEMENT, AIRFILTER

1L9-14451-00-00

1

$31.61

In stock

15

CASE, AIR CLEANER 2

2A2-14421-00-00

1
Out of stock

16

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

17

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock
