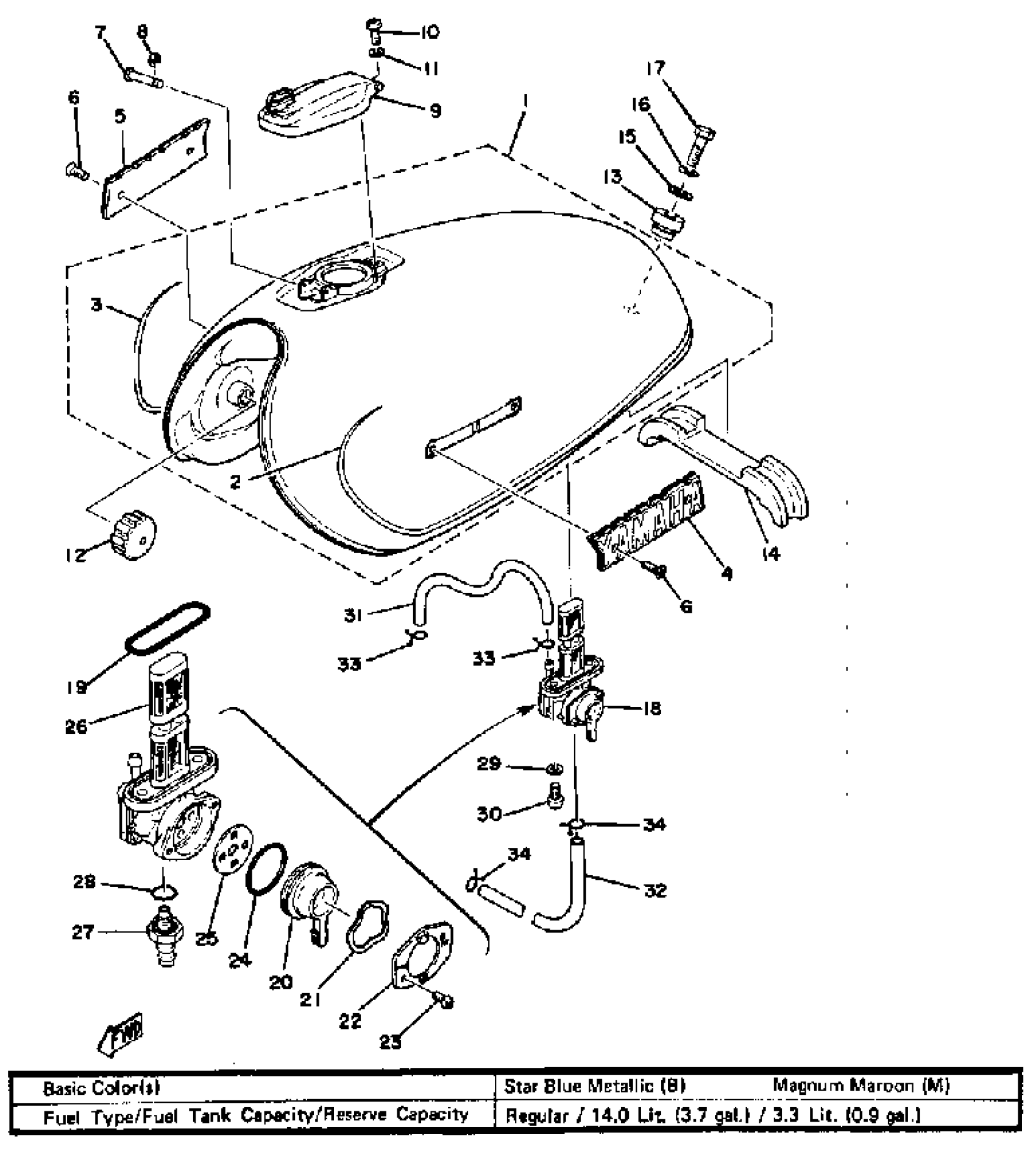

Yamaha XS400F (XS400) 1979 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(2L0-24110-00-01)

Unavailable

1

FUEL TANK

(2L0-24110-00-02)

Unavailable

2

GRAPHIC, FUEL TNK 1

(2L0-24244-00-00)

Unavailable

3

GRAPHIC, FUEL TNK 2

(2L0-24245-00-00)

Unavailable

4

EMBLEM 1

2L0-24161-00-00

Unavailable

5

EMBLEM 2

2L0-24162-00-00

Unavailable

6

SCREW (2F0)

90152-04006-00

$10.49

7

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

8

CIRCLIP (604)

93430-02001-00

$8.49

9

CAP ASSY

4R0-24602-01-00

Unavailable

10

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

DAMPER, LOCATING 1

1L9-24181-00-00

Unavailable

13

DAMPER, LOCATING 2

2L0-24182-00-00

Unavailable

14

DAMPER, LOCATING 3

2L0-24183-00-00

Unavailable

15

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

BOLT(JA9)

90101-08691-00

Unavailable

18

FUEL COCK ASY 1

3X8-24500-00-00

Unavailable

19

O-RING

2G2-24512-00-00

Unavailable

20

LEVER, COCK

(2G2-24524-00-00)

Unavailable

21

. WASHER, WAVE

16G-24518-00-00

Unavailable

22

PLATE, LVR FITTING

(2G2-24525-00-00)

Unavailable

23

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

24

O-RING

2G2-24534-00-00

Unavailable

25

VALVE

16G-24523-00-00

Unavailable

27

. BOLT, JOINT

2L0-24551-00-00

Unavailable

28

. GASKET

2L0-24522-00-00

Unavailable

29

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

30

SCREW 366241430000

90149-06008-00

Unavailable

31

HOSE (L570)

90445-07MF1-00

Unavailable

32

HOSE (L450)

90445-10144-00

Unavailable

33

CLIP (1J7)

90467-07029-00

Unavailable

34

CLIP

90467-090A2-00

Unavailable
