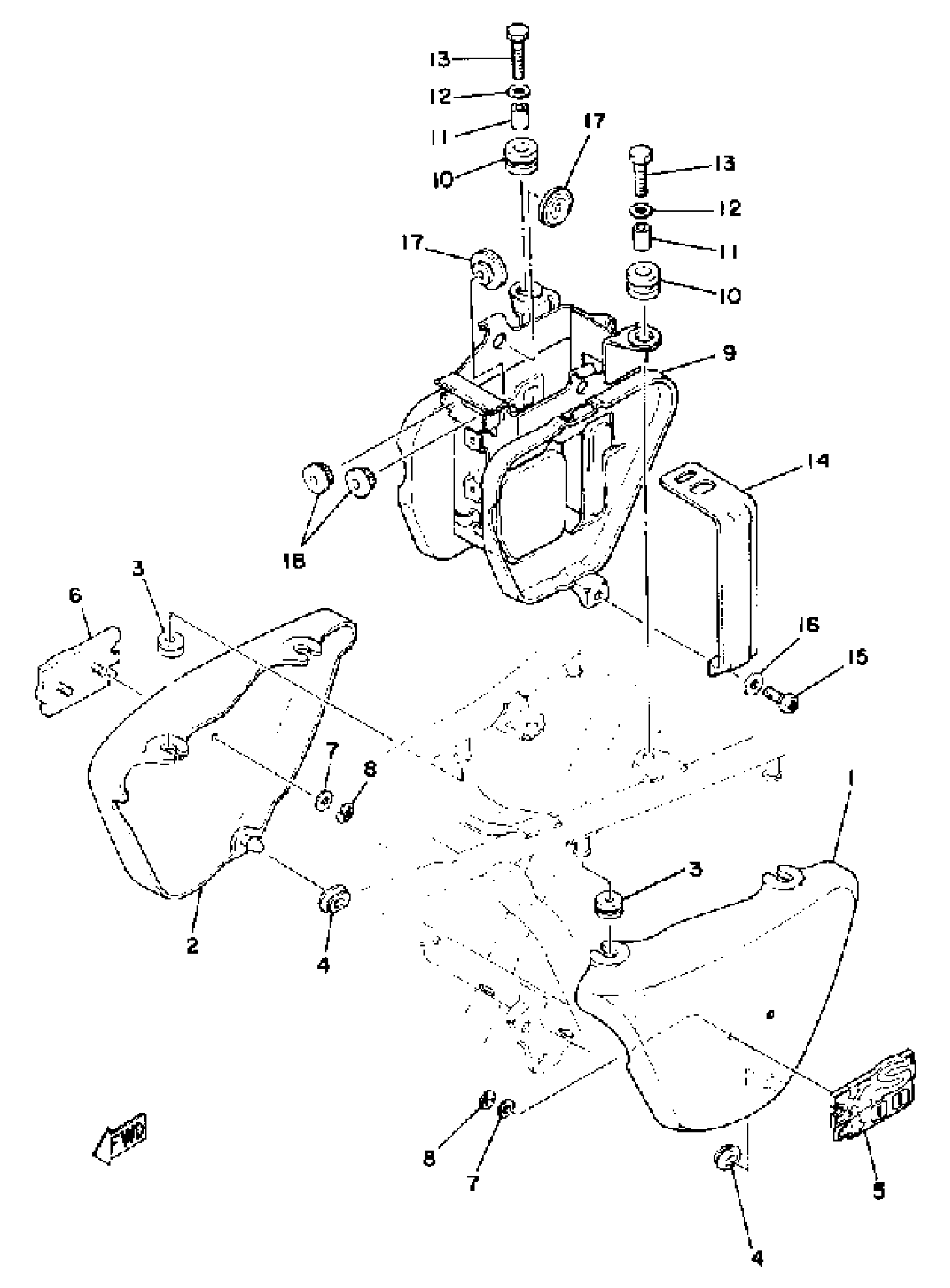

Yamaha XS400E (XS400) 1978 SIDE COVER - BATTERY BOX Diagram

#

Description
Price

1

COVER, SIDE 1

(2L0-21711-00-E9)

Unavailable

1

COVER, SIDE 1

2L0-21711-00-H9

Unavailable

2

COVER, SIDE 2

(2L0-21721-00-E9)

Unavailable

2

COVER, SIDE 2

2L0-21721-00-H9

Unavailable

3

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

4

GROMMET(41Y)

90480-01401-00

$8.49

5

EMBLEM 1

2L0-21781-00-00

Unavailable

6

EMBLEM 2

2L0-21782-00-00

Unavailable

7

WASHER PLATE 174283160000

90202-04003-00

$8.49

8

NUT SPRING 116283170100

90183-04005-00

$10.49

9

BOX, BATT.

(2L0-21240-00-00)

Unavailable

10

GROMMET 839774310000

90480-14023-00

$7.49

11

COLLAR

90387-07020-00

$8.49

12

WASHER, PLATE

90201-06380-00

$0.60

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

BAND, TANK FITTING

1L9-21776-01-00

Unavailable

15

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

PAD, BATTERY

371-82121-00-00

Unavailable

18

DAMPER

1J7-21746-00-00

Unavailable
