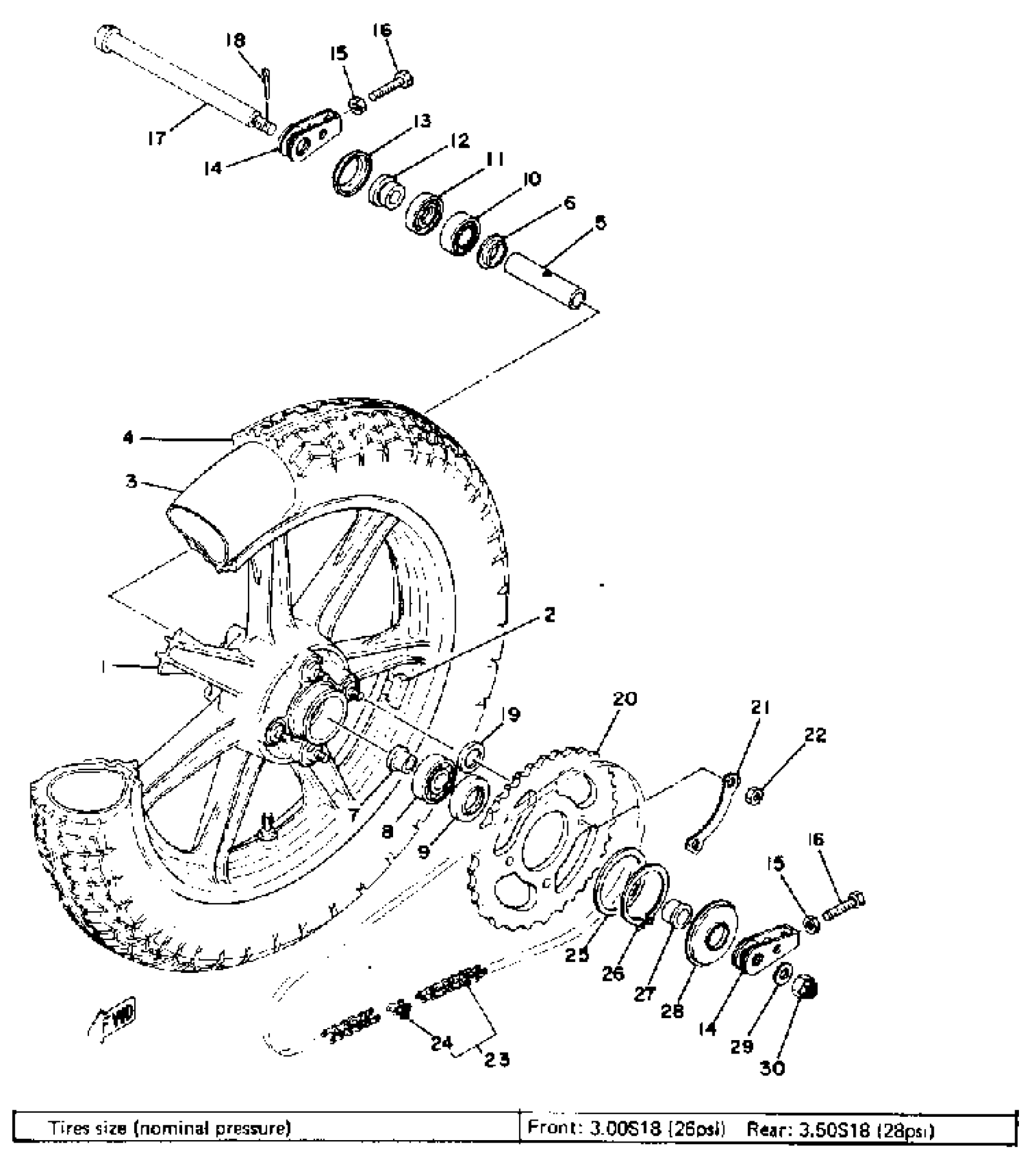

Yamaha XS400E (XS400) 1978 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

(2A2-W2533-20-00)

Unavailable

2

BALANCER, WHEEL

5MT-25398-00-00

$17.49

2

BALANCER, WHEEL

5MT-25398-00-00

$17.49

3

TUBE (5H5)

94227-18195-00

$35.99

3

TUBE (2RH)

94232-18113-00

$29.99

4

350X18 BS 21R

(94135-18360-00)

Unavailable

5

SPACER, BEARING

1J3-25317-00-00

Unavailable

6

FLANGE, SPACER

146-25315-00-00

$7.99

7

COLLAR, WHEEL

1A1-25377-00-00

Unavailable

8

BEARING(3BC)

93306-30437-00

$66.99

9

OIL SEAL (27X52X5-256)

93104-27026-00

$19.99

10

BEARING(4HM)

93306-30317-00

$39.99

11

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

12

COLLAR

90387-17536-00

Unavailable

13

COVER, HUB DUST

(1J3-25118-00-00)

Unavailable

14

PULLER,CHAIN 2

12R-25389-00-00

Unavailable

15

. NUT

95380-08700-00

Unavailable

16

BOLT

90101-08060-00

Unavailable

17

AXLE, WHEEL

1J3-25381-00-00

Unavailable

18

PIN, COTTER

91490-30030-00

Unavailable

19

COLLAR

90387-20565-00

Unavailable

20

SPROCKET, DRIVN 39T

1J3-25439-20-00

Unavailable

21

WASHER

1J3-25412-00-00

Unavailable

22

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

23

DID50HDSS-102L

94580-20102-00

Unavailable

24

. JOINT CHAIN

94685-30011-00

Unavailable

25

WASHER, PLATE

90201-66585-00

Unavailable

26

CIRCLIP, S-TYPE

93410-65040-00

Unavailable

27

COLLAR

90387-17551-00

Unavailable

28

COVER, HUB DUST

1L9-25367-00-00

Unavailable

29

WASHER, PLAIN

92990-14200-00

Unavailable

30

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable
