Description

Price

1

REAR ARM

(2L0-22110-00-33)

Unavailable

2

BUSH

341-22184-00-00

Unavailable

3

BUSH (5A9)

90386-22102-00

$40.99

4

SHIM,REAR ARM

240-22127-00-00

$6.99

5

COVER, THRUST

322-22128-01-00

$35.99

6

SHAFT, PIVOT

371-22141-00-00

Unavailable

7

NIPPLE, GREASE

93700-06M03-00

Unavailable

8

WASHER, LOCK

90215-14055-00

Unavailable

9

NUT

90170-14800-00

$4.14

10

SHK/ABS ASY,REAR

2L0-22210-A0-00

Unavailable

11

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

12

NUT, CROWN(3BM)

90176-10073-00

$8.49

13

BOLT ROUND 214222410000

90106-10025-00

$5.60

14

CASE, CHAIN

3F9-22311-00-93

Unavailable

15

SCREW, PAN

98507-06014-00

$8.49

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

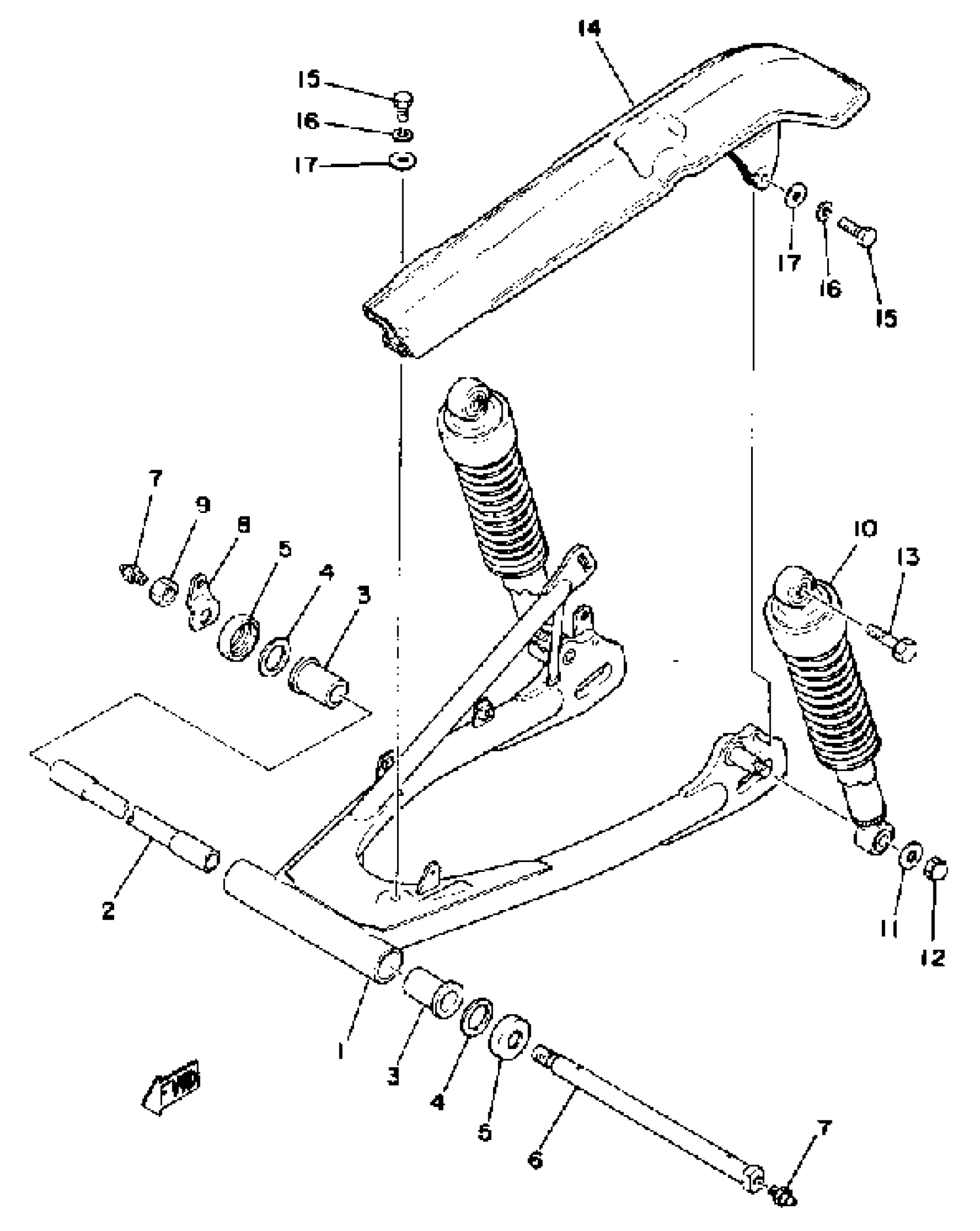

Yamaha XS400E (XS400) 1978 REAR ARM - REAR CUSHION Diagram

REAR ARM

BUSH

BUSH (5A9)

SHIM,REAR ARM

COVER, THRUST

SHAFT, PIVOT

NIPPLE, GREASE

WASHER, LOCK

NUT

SHK/ABS ASY,REAR

WASHER, PLATE(3BM)

NUT, CROWN(3BM)

BOLT ROUND 214222410000

CASE, CHAIN

SCREW, PAN

WASHER, SPRING

WASHER, PLAIN (646)
