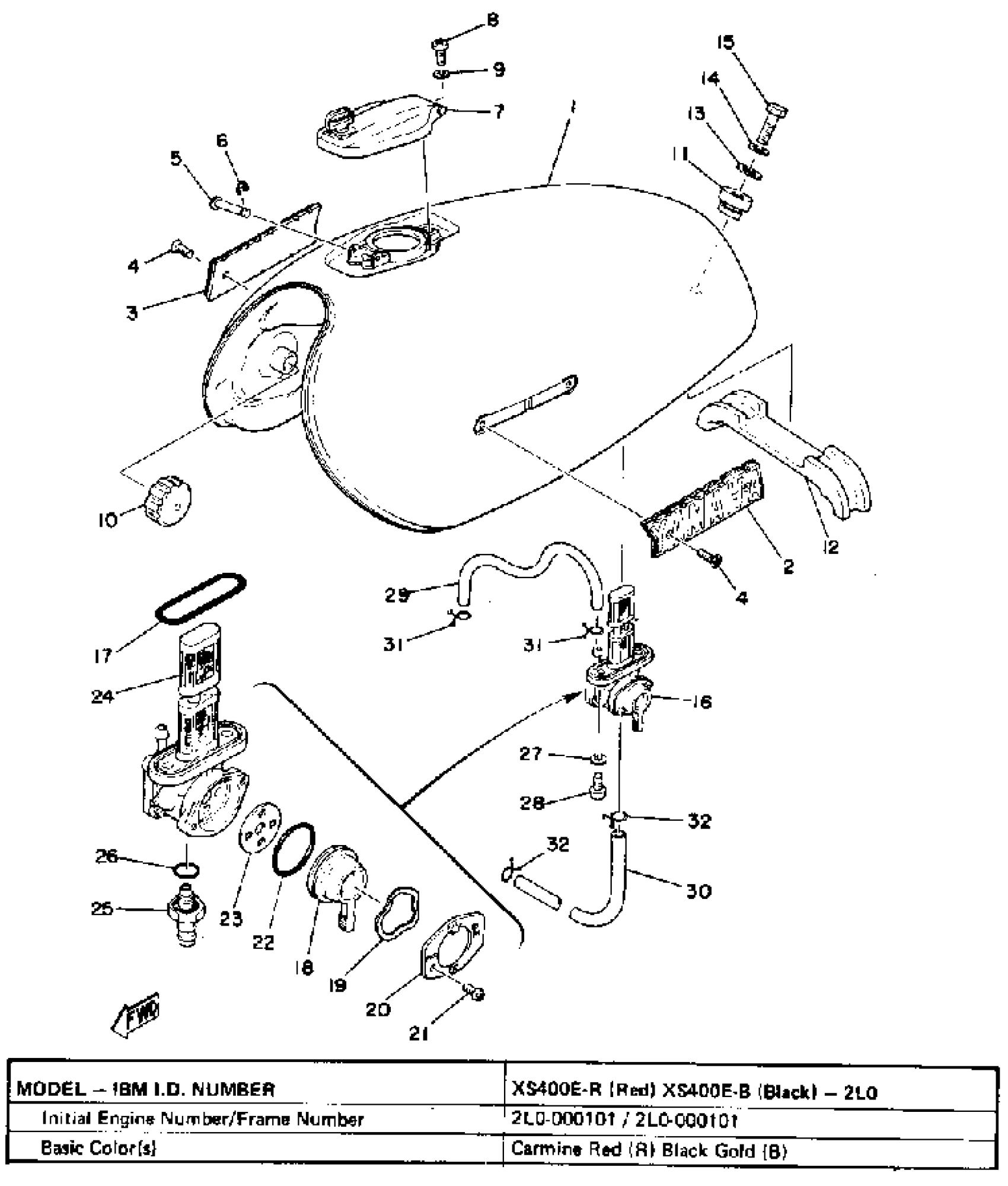

Yamaha XS400E (XS400) 1978 FUEL TANK Diagram

FUEL TANK

2L0-24110-00-E9

Unavailable

FUEL TANK

2L0-24110-00-H9

Unavailable

EMBLEM 1

2L0-24161-00-00

Unavailable

EMBLEM 2

2L0-24162-00-00

Unavailable

SCREW (2F0)

90152-04006-00

$10.49

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

CIRCLIP (604)

93430-02001-00

$8.49

CAP ASSY

4R0-24602-01-00

Unavailable

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

DAMPER, LOCATING 1

1L9-24181-00-00

Unavailable

DAMPER, LOCATING 2

2L0-24182-00-00

Unavailable

DAMPER, LOCATING 3

2L0-24183-00-00

Unavailable

WASHER, PLATE (5J0)

90201-085E6-00

$10.49

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

BOLT(JA9)

90101-08691-00

Unavailable

FUEL COCK ASY 1

3X8-24500-00-00

Unavailable

O-RING

2G2-24512-00-00

Unavailable

LEVER, COCK

(2G2-24524-00-00)

Unavailable

. WASHER, WAVE

16G-24518-00-00

Unavailable

PLATE, LVR FITTING

(2G2-24525-00-00)

Unavailable

SCREW, FLAT

98707-03008-00

Unavailable

O-RING

2G2-24534-00-00

Unavailable

VALVE

16G-24523-00-00

Unavailable

TOOL

UNA-VAILA-BL-EI

Unavailable

. BOLT, JOINT

2L0-24551-00-00

Unavailable

. GASKET

2L0-24522-00-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

SCREW 366241430000

90149-06008-00

Unavailable

HOSE (L570)

90445-07MF1-00

Unavailable

HOSE (L450)

90445-10144-00

Unavailable

CLIP (1J7)

90467-07029-00

Unavailable

CLIP

90467-090A2-00

Unavailable
