1978 Yamaha XS400 (XS400E) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1978 Yamaha XS400 (XS400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

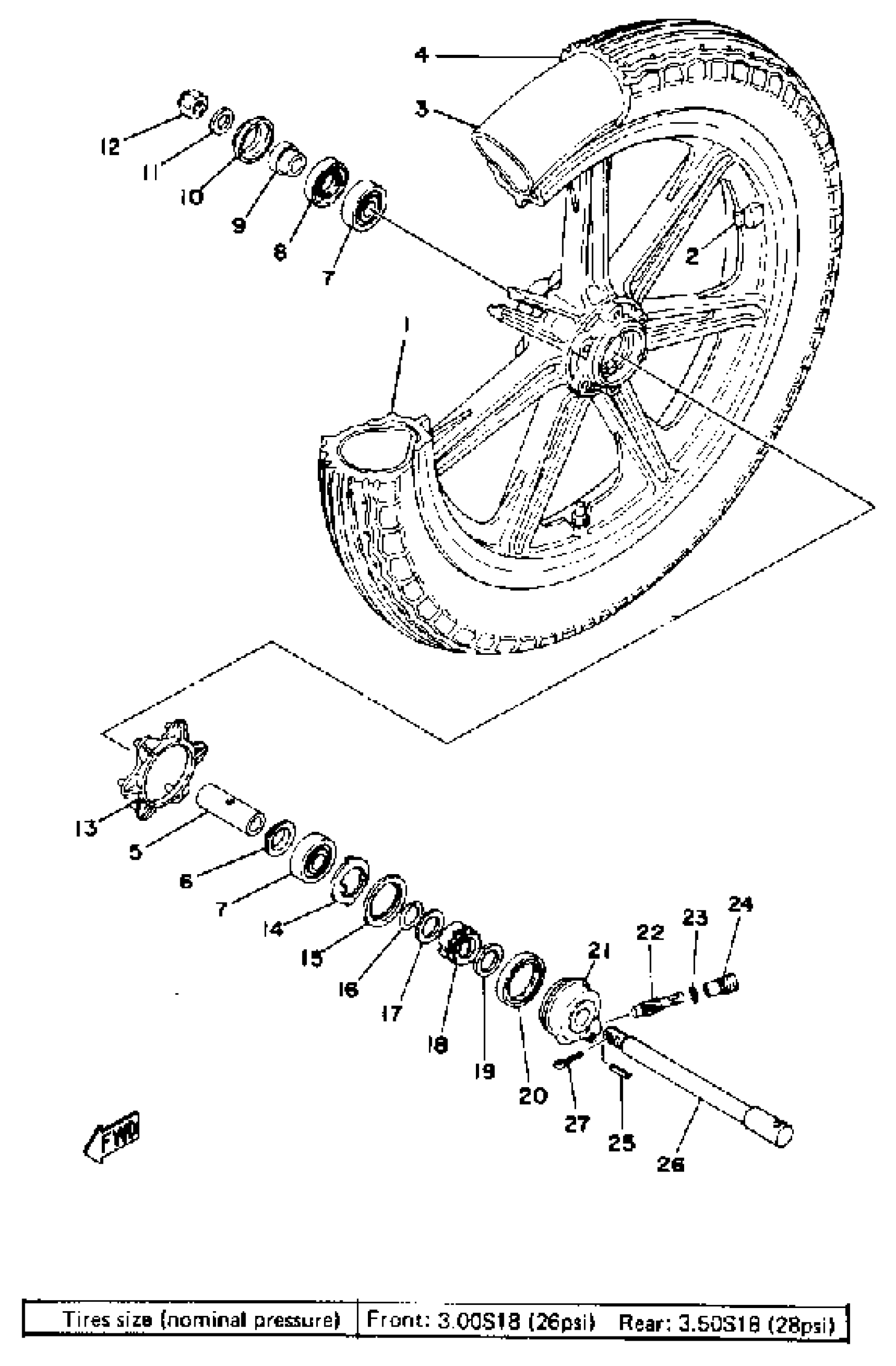

1978 Yamaha XS400 (XS400E) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, CAST FRONT

(2A2-25168-00-98)

1
Out of stock

2

BALANCER, WHEEL

5MT-25398-00-00

1

$15.54

In stock

2

BALANCER, WHEEL

5MT-25398-00-00

1

$15.54

In stock

3

TUBE (5H5)

94227-18195-00

1
Out of stock

3

TUBE (5H5)

94227-18195-00

1
Out of stock

4

YOKO 300S18 Y986

(94130-18363-00)

1
Out of stock

4

YOKO 300S18 Y986

(94130-18363-00)

1
Out of stock

5

SPACER (1L9)

90560-15161-00

—

$8.12

In stock

6

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

7

BEARING

93306-30212-00

1

$33.35

In stock

8

OIL SEAL (22X42X7)

93102-22014-00

1

$10.68

In stock

9

COLLAR (1L9)

90387-15550-00

1
Out of stock

10

COVER, DUST

401-25367-00-00

—

$7.66

In stock

11

WASHER, PLAIN

92990-14200-00

1

$1.71

In stock

12

NUT, CASTLE(2UJ)

90171-14056-00

1

$10.57

In stock

13

COVER, HOUSING

1U4-25847-00-00

1
Out of stock

14

CLUTCH, METER (371,447)

341-25149-00-00

—
Out of stock

15

RETAINER, CLUTCH (371,447)

341-25846-00-00

—
Out of stock

16

RING, STOP

341-25137-00-00

1
Out of stock

17

WASHER PLATE 341251470000

90201-25286-00

—
Out of stock

18

GEAR, DRIVE

(351-25135-00-00)

1
Out of stock

19

WASHER PLATE 152172260000

90201-25490-00

—
Out of stock

20

OIL SEAL (45X56X6)

93105-45017-00

—
Out of stock

21

GEAR UNIT ASY

31A-25190-10-00

1
Out of stock

22

GEAR, METER

351-25138-00-00

1
Out of stock

23

SHIM, ROD

102-18416-00-00

1
Out of stock

24

BUSH

306-25136-00-00

1
Out of stock

25

PIN, SPRING (V60)

91609-20014-00

—

$1.78

In stock

26

AXLE, WHEEL

1L9-25181-00-00

1
Out of stock

27

PIN, COTTER

91490-30030-00

—

$7.15

In stock
