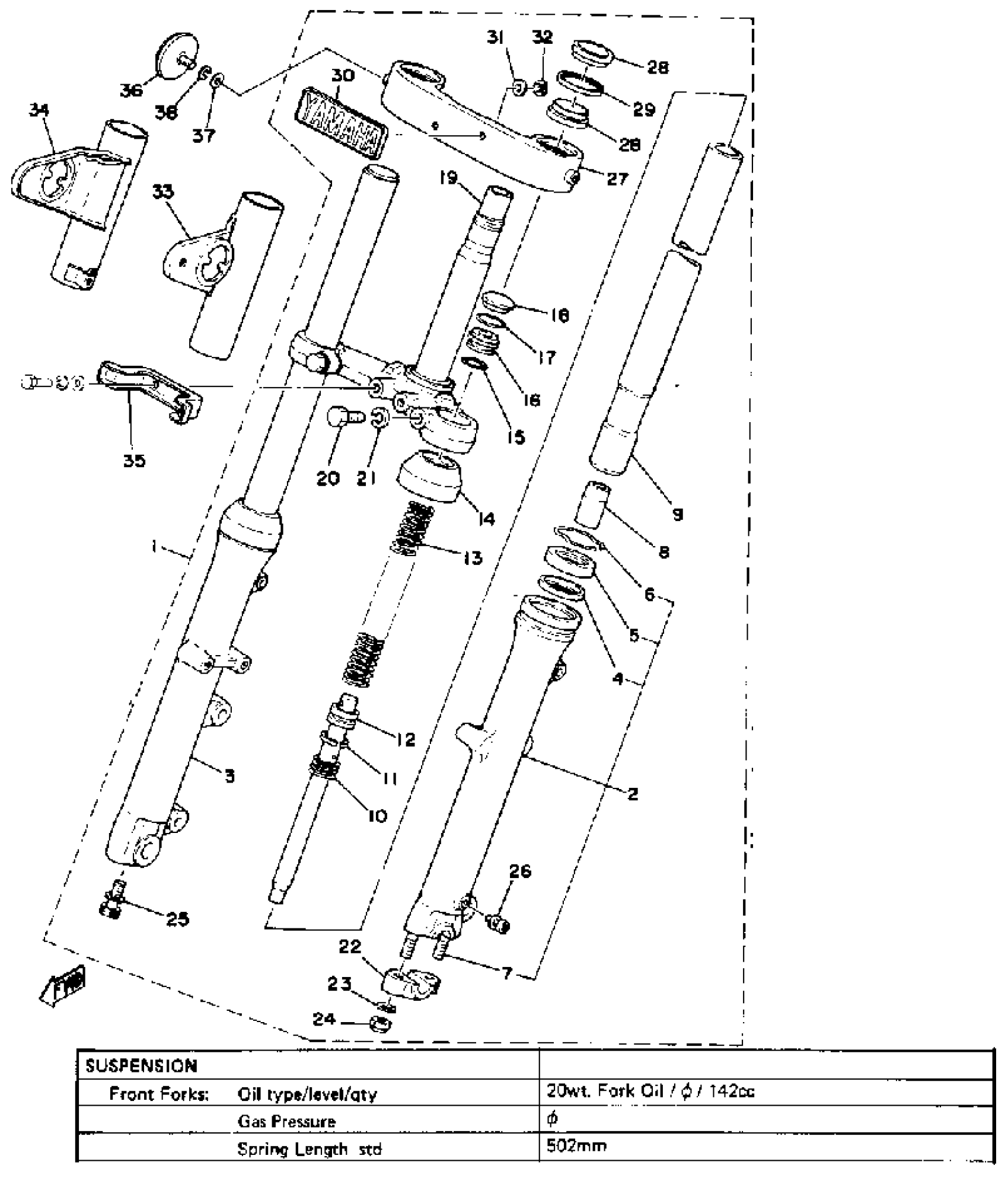

Find the part on the Front Fork diagram for your 1978 Yamaha XS400 (XS400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XS400 (XS400E) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(3F9-23101-00-00)

1
Out of stock

2

. TUBE, OUTER 1

2L0-23126-00-00

1
Out of stock

3

. TUBE, OUTER 2

1L9-23136-01-00

1
Out of stock

4

. WASHER, OIL SEAL

1L9-23146-00-00

1
Out of stock

5

OIL SEAL

1L9-23145-00-00

1

$20.02

In stock

6

. CLIP, OIL SEAL

1L9-23156-00-00

1
Out of stock

7

.. BOLT, STUD

90116-08260-00

1
Out of stock

8

. SPACER, OIL LOCK

1L9-23166-00-00

1
Out of stock

9

. INNER TUBE 1

2L0-23110-00-00

1
Out of stock

10

SPRING, REBOUND

(1E7-23151-00-00)

1
Out of stock

11

RING, PISTON FRONT FORK

1E7-23157-00-00

1

$4.62

In stock

12

CYLINDER, FRTFRK

(1L9-23170-02-00)

1
Out of stock

13

. SPRING, FRONT FORK

2L0-23141-00-00

1
Out of stock

14

SEAL, DUST

1L9-23144-00-00

1

$28.02

In stock

15

O-RING

1L9-23114-00-00

1

$7.00

In stock

16

SEAT, SPRING

1L9-23111-00-00

—

$14.05

In stock

17

RING, STOPPER

1L9-23183-00-00

—

$6.43

In stock

18

. CAP, FRONT FORK

1L9-23168-00-00

1
Out of stock

19

. UNDER BRKT

3N6-23340-30-90

1
Out of stock

20

BOLT(N02)

97070-10035-00

—

$11.38

In stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

22

. HOLDER, AXLE

1E7-23167-00-00

1
Out of stock

23

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

24

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

25

BOLT

3M7-23181-00-00

—

$7.75

In stock

26

. PLUG, DRAIN

1E7-23119-00-00

1
Out of stock

27

. COVER, OUTER 1

2L0-23122-00-93

1
Out of stock

28

. GASKET

2L0-23163-00-00

1
Out of stock

29

. GUIDE, COVER LOWER

2L0-23116-00-00

1
Out of stock

30

. EMBLEM

2M0-23395-00-00

1
Out of stock

31

WASHER PLATE 174283160000

90202-04003-00

—

$6.69

In stock

32

NUT SPRING 116283170100

90183-04005-00

—

$0.74

In stock

33

COVER, UPPER 1

(2L0-23121-00-93)

1
Out of stock

34

COVER, UPPER 2

2L0-23131-00-93

1
Out of stock

35

HOLDER, CABLE 1

(2L0-23318-00-00)

1
Out of stock

36

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

37

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

38

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
