1978 Yamaha XS400 (XS400E) Frame Diagram

← All diagrams

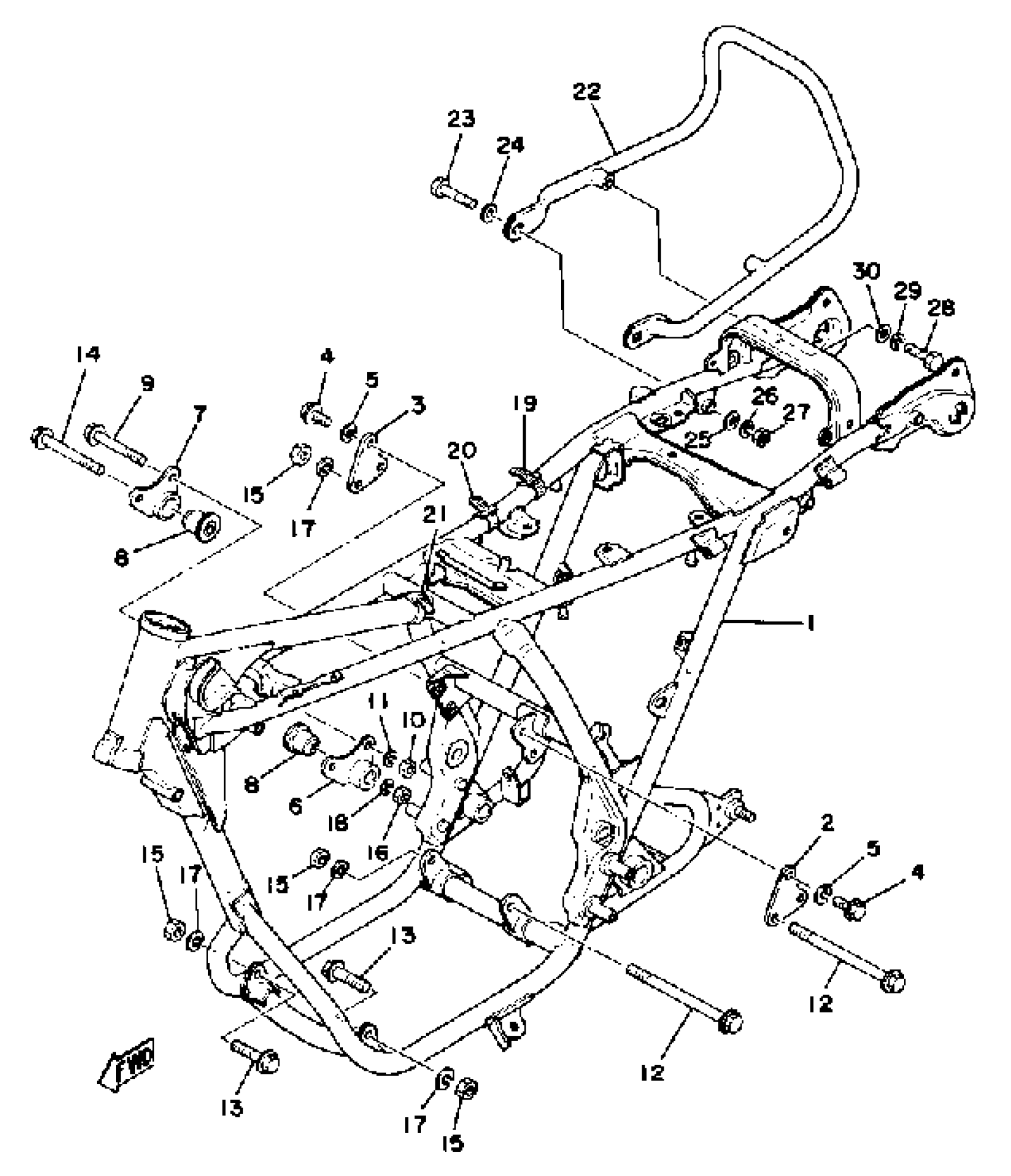

Find the part on the Frame diagram for your 1978 Yamaha XS400 (XS400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XS400 (XS400E) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(2L0-21110-00-33)

1
Out of stock

2

STAY, ENGINE 2

(2A2-21315-00-00)

1
Out of stock

3

STAY, ENGINE 2

(1L9-21315-00-00)

1
Out of stock

4

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

STAY, ENGINE 3

1L9-21316-01-00

1
Out of stock

7

STAY, ENGINE 4

(1L9-21317-01-00)

1
Out of stock

8

DAMPER, ENG MOUNT 1

1A1-15316-00-00

1
Out of stock

9

BOLT, FLANGE(JN5)

95817-08070-00

1

$3.20

In stock

10

NUT(6L2)

95333-08600-00

1

$3.20

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

BOLT, FLANGE

(95821-10145-00)

1
Out of stock

13

BOLT, FLANGE(4GB)

95817-10045-00

1

$4.52

In stock

14

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

15

NUT

90170-10011-00

1

$6.29

In stock

16

NUT(6L2)

95333-08600-00

1

$3.20

In stock

17

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

19

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

20

BAND

341-26397-01-00

1
Out of stock

21

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

22

STAY, REAR

(2L0-21645-00-00)

1
Out of stock

23

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

24

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

25

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

27

NUT(6L2)

95333-08600-00

1

$3.20

In stock

28

BOLT

97013-08045-00

—
Out of stock

29

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

30

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
