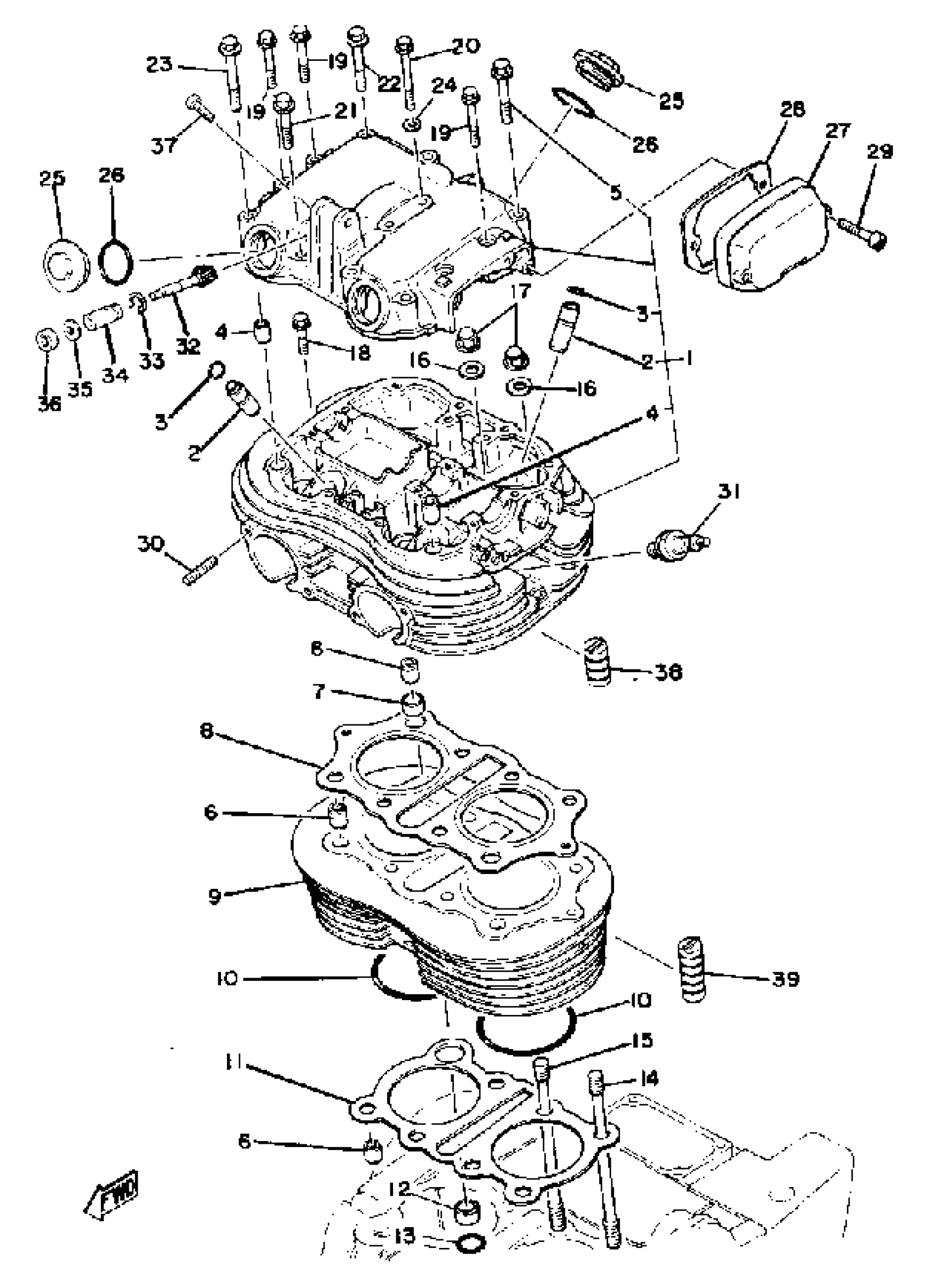

Yamaha XS400E (XS400) 1978 CYLINDER HEAD - CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(2L0-11101-00-00)

Unavailable

2

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

BOLT, FLANGE

95817-08050-00

$2.44

6

PIN, DOWEL

99530-14016-00

$3.80

7

GASKET (1L9)

90430-14131-00

$8.49

8

GASKET, CYLINDER HEAD

2A2-11181-09-00

Unavailable

9

CYLINDER

(2L0-11310-00-00)

Unavailable

10

O-RING (1J7)

93210-74316-00

$10.49

11

GASKET, CYLINDER

2A2-11351-10-00

Unavailable

12

COLLAR (1L9)

90387-16547-00

$9.49

13

O-RING (1L9)

93210-18322-00

$5.60

14

BOLT, CYL HOLDING 1

1L9-11361-00-00

Unavailable

15

BOLT, CYL HOLDING 2

1L9-11362-00-00

Unavailable

17

NUT, CROWN(2GG)

90176-10075-00

Unavailable

18

BOLT, FLANGE

90105-06007-00

Unavailable

18

WASHER PLATE 341839090000

90201-10128-00

Unavailable

19

BOLT, FLANGE

95817-06045-00

Unavailable

20

BOLT, FLANGE

95817-06060-00

Unavailable

21

BOLT, FLANGE

95817-08040-00

Unavailable

22

BOLT, FLANGE

95817-08050-00

$2.44

23

BOLT, FLANGE

95817-08060-00

Unavailable

24

WASHER, PLATE (1L9)

90201-06630-00

Unavailable

25

PLUG, VIEWER

1H2-11186-00-00

Unavailable

26

O-RING (341)

93210-32172-00

Unavailable

27

COVER, BREAKER 1

2L0-11157-00-00

Unavailable

28

GASKET, BREAKER CVR

1L9-11146-00-00

Unavailable

29

SCREW, PAN

98507-05035-00

Unavailable

30

BOLT,STUD

90116-08423-00

Unavailable

31

CHAMPION N7YC 4PK

CMP-N7YC0-00-00

Unavailable

31

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

Unavailable

32

GEAR, DRIVEN

1L9-17841-00-00

Unavailable

33

CIRCLIP, OUTER

93440-12051-00

Unavailable

34

HOUSING, TACH GEAR

1L9-17811-00-00

Unavailable

35

WASHER, PLATE

90201-06605-00

Unavailable

36

OIL SEAL, SD-TYPE

93102-06254-00

Unavailable

37

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

38

ABSORBER 2

(1L9-11162-30-00)

Unavailable

39

ABSORBER 2

(1L9-11162-20-00)

Unavailable
