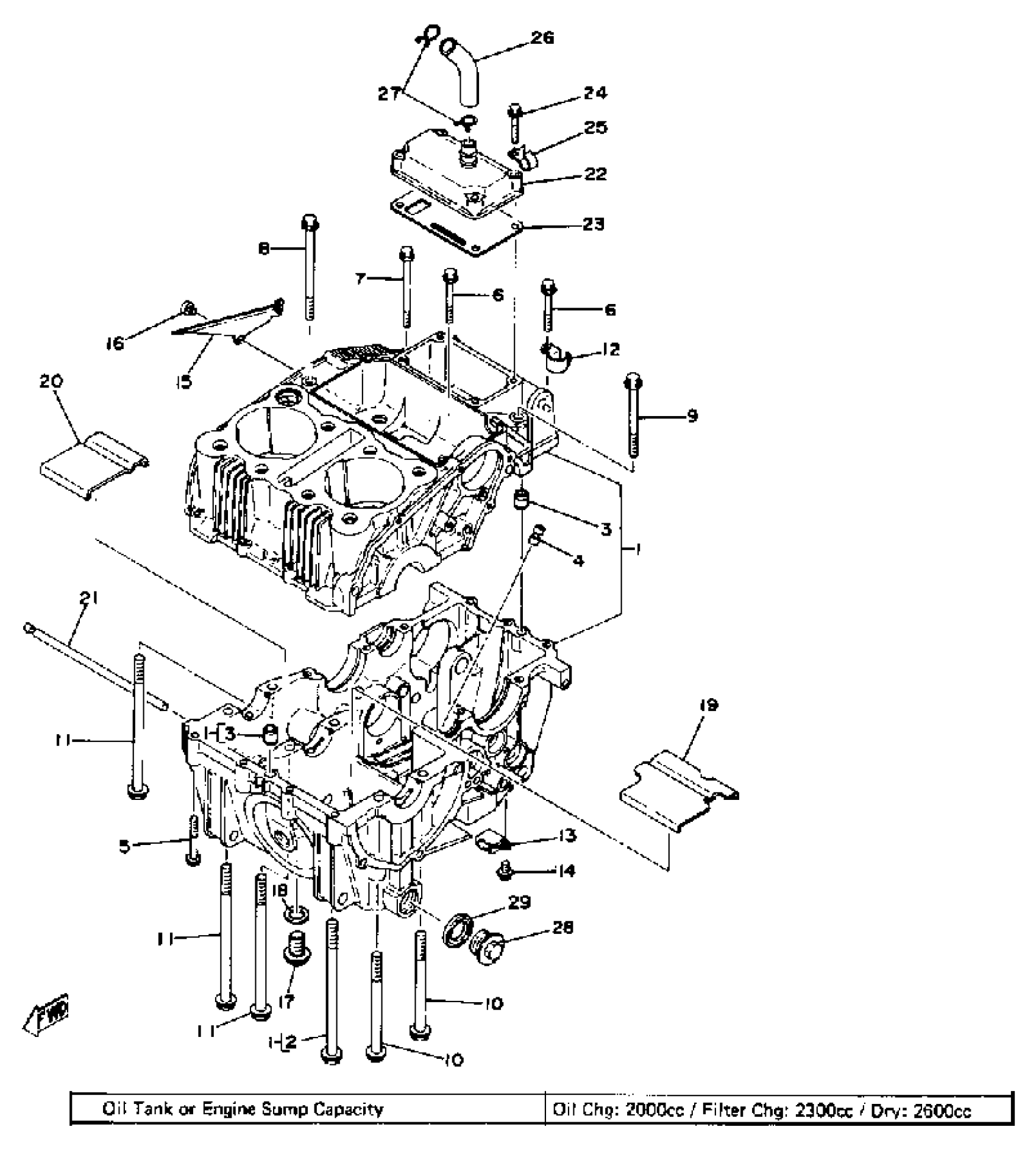

Yamaha XS400E (XS400) 1978 CRANKCASE Diagram

#

Description

Price

1

CRANKCASE ASSEMBLY

(1L9-15100-01-00)

Unavailable

2

BOLT, WASHER BASED

90105-08084-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

NOZZLE 1

(1L9-15138-01-00)

Unavailable

5

BOLT, FLANGE

95817-06045-00

$8.49

6

BOLT, FLANGE

95817-06050-00

$4.24

7

BOLT, WASHER BASED

(90105-06076-00)

Unavailable

8

BOLT, WASHER BASED

(90105-06077-00)

Unavailable

9

BOLT, FLANGE(JF2)

95817-08080-00

$4.24

10

BOLT, WASHER BASED

90105-08082-00

Unavailable

11

BOLT, WASHER BASED

90105-08084-00

Unavailable

12

CLAMP (1L9)

(90465-10092-00)

Unavailable

13

CLAMP

(90465-10110-00)

Unavailable

14

BOLT, WASHER BASED HEXAGON 1L9

90105-06069-00

Unavailable

15

COVER, OIL PUMP

(1L9-15412-00-00)

Unavailable

16

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

17

BOLT

90109-14385-00

Unavailable

18

GASKET 256131670000

90430-14043-00

Unavailable

19

PLATE, BUFFLE 1

(1L9-15123-00-00)

Unavailable

20

PLATE, BUFFLE 2

(1L9-15124-00-00)

Unavailable

21

BAR, BFL PLATE FXD

(1L9-15122-00-00)

Unavailable

22

BREATHER COVER ASSEMBLY

(1L9-11108-00-00)

Unavailable

23

GASKET, BRTHR COVER

1L9-11169-00-00

Unavailable

24

BOLT, FLANGE

95817-06030-00

Unavailable

25

CLAMP

(90465-08111-00)

Unavailable

26

PIPE, BREATHER 1

2L0-11166-00-00

Unavailable

27

CLIP (371)

90467-14015-00

Unavailable

28

PLUG, STRAIGT SCREW (2A2)

90340-22047-00

Unavailable

29

GASKET (1L9)

90430-22144-00

Unavailable
