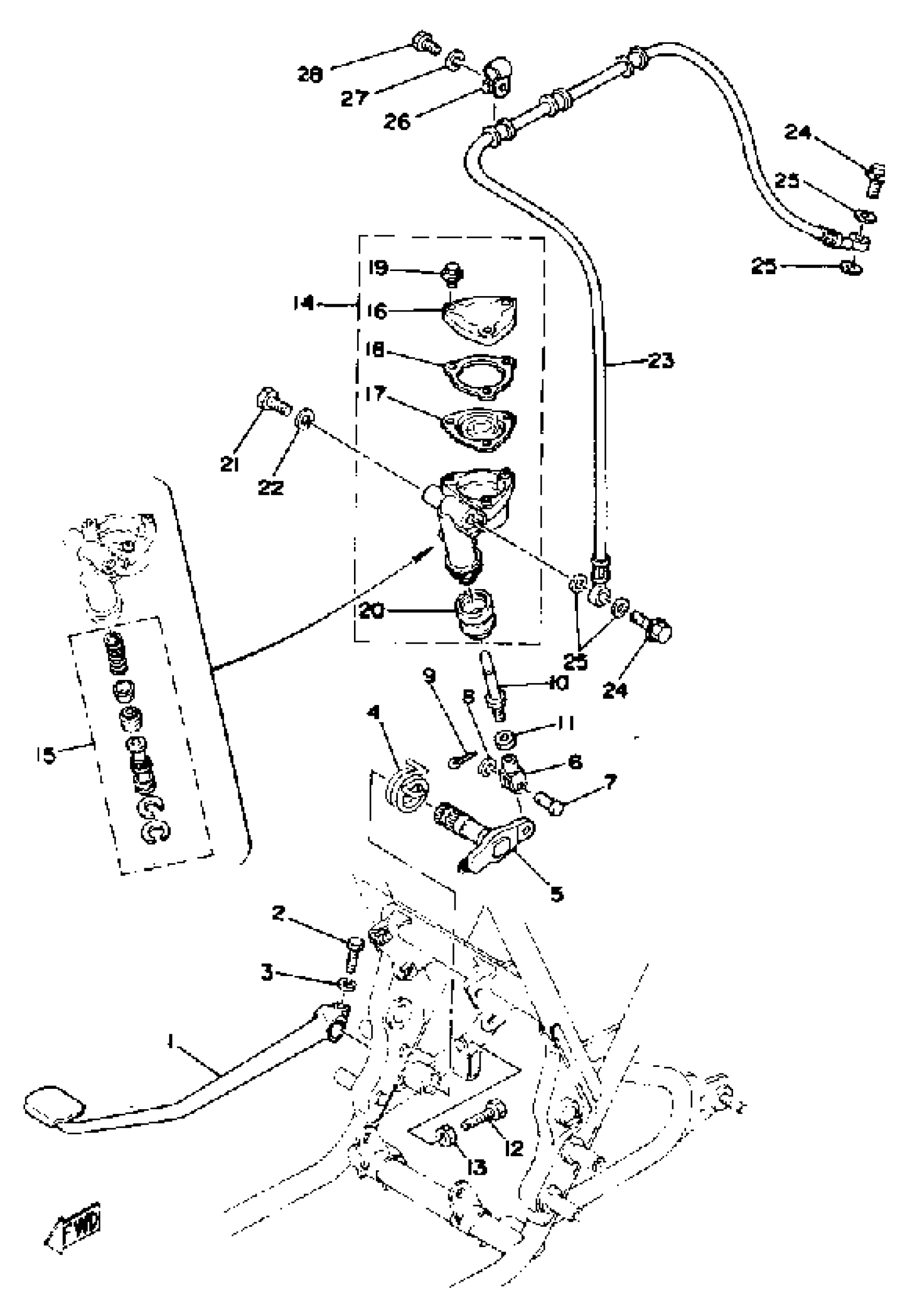

Yamaha XS400E (XS400) 1978 BRAKE PEDAL - REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL,BRAKE

1L9-27211-00-93

Unavailable

2

BOLT (1J7)

90109-06468-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SPRING, TORSION

90508-40344-00

Unavailable

5

SHAFT, BRAKE PEDAL

(1U4-27212-00-00)

Unavailable

6

JOINT

47X-27222-00-00

Unavailable

7

PIN W/HOLE 307181180000

90240-08013-00

$8.49

8

WASHER, PLATE 1562722600

90201-08083-00

$9.49

9

PIN, COTTER

91490-16020-00

Unavailable

10

ROD, BRAKE

1J3-27231-00-00

Unavailable

11

. NUT

95380-08700-00

Unavailable

12

SCREW 341272170000

90153-06008-00

$7.49

13

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

14

MSTR CYLINDER ASSEMBLY (1U4-25850-50)

1U4-25850-51-00

Unavailable

15

. CYLINDER KIT, MASTER

1U4-W0042-50-00

Unavailable

16

. CAP, RESERVOIR

1J3-25852-52-00

Unavailable

17

. DIAPHRAGM RESERVOR

1J3-25854-51-00

Unavailable

18

. BUSH, DIAPHRAGM

1J3-25855-51-00

Unavailable

19

. SCREW, HEXAGON

90153-05014-00

Unavailable

20

. BOOT, MASTER CYLINDER

1J3-25862-50-00

Unavailable

21

BOLT, HEXAGON

97013-08016-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

23

HOSE, BRAKE 1

2L0-25872-50-00

Unavailable

24

BOLT, UNION(3GM)

90401-10159-00

Unavailable

25

WASHER, PLATE(481)

90201-10118-00

Unavailable

26

CLAMP 1

90461-08031-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

BOLT, HEXAGON

97017-06012-00

Unavailable
