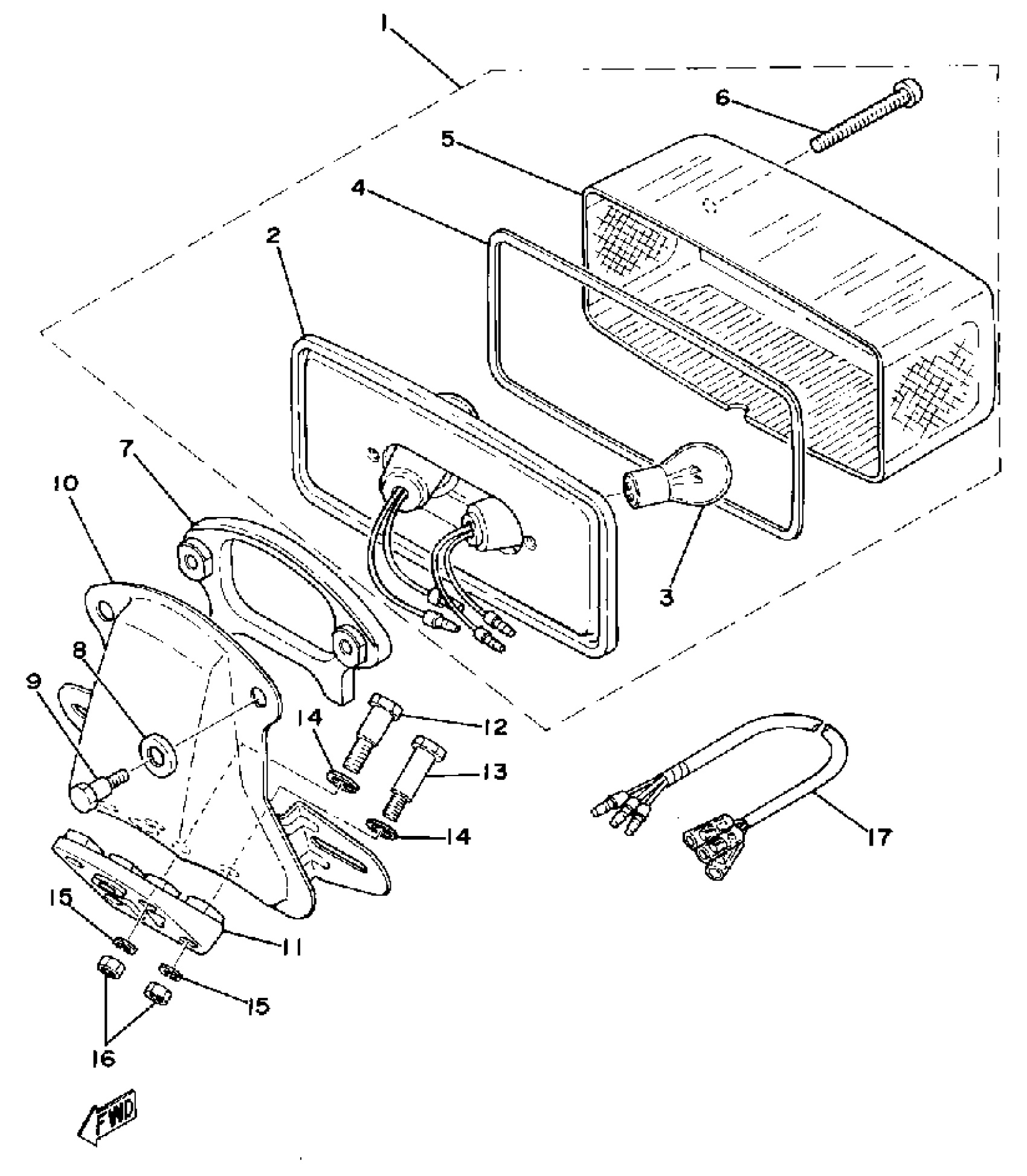

Yamaha XS400D (XS400) 1977 TAIL LAMP Diagram

#

Description

Price

1

TAILLIGHT UNIT ASSEMBLY

2A2-84710-60-00

Unavailable

2

BASE, TAILLIGHT

(2A2-84711-60-00)

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

. GASKET, TAIL LENS

1A0-84723-60-00

Unavailable

5

. LENS, TAILLIGHT

1A0-84721-60-00

Unavailable

6

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

7

SHEET, BASE

1A0-84712-60-00

Unavailable

8

WASHER, SPECIAL

2H7-84754-00-00

$10.99

9

BOLT, TAILLAMP

1A0-84726-60-00

Unavailable

10

BRACKET, LICENSE

(2A2-84751-60-33)

Unavailable

11

DAMPER

(2A2-84753-01-00)

Unavailable

12

BOLT (4L0)

90109-06577-00

$5.60

13

BOLT

90109-06655-00

Unavailable

14

WASHER, PLAIN

92990-08200-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

CORD, TAILLIGHT

(2A2-84717-20-00)

Unavailable
