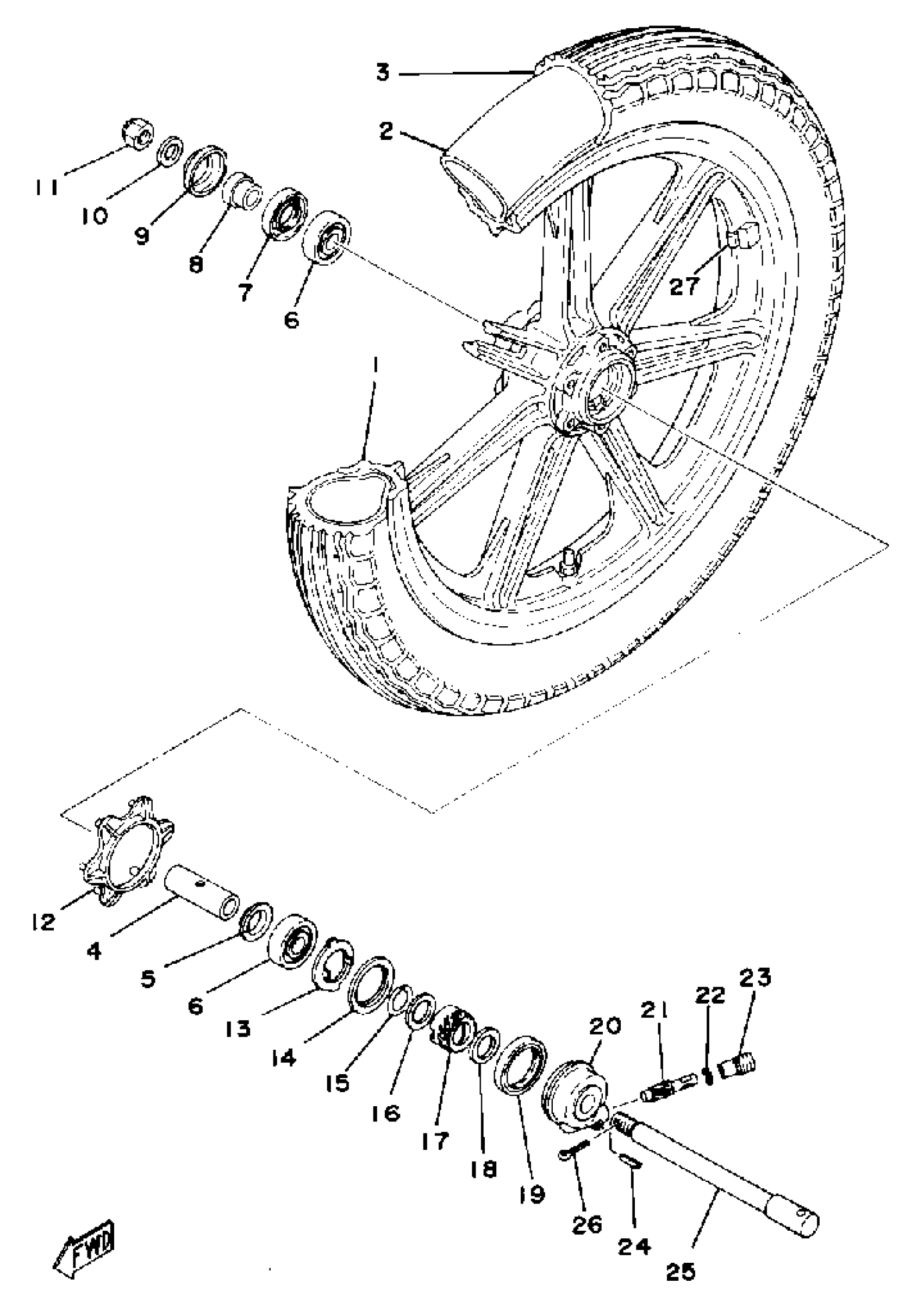

Yamaha XS400D (XS400) 1977 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, CAST FRONT

(1U4-25168-00-00)

Unavailable

2

TUBE (1U4)

(94232-18115-00)

Unavailable

3

TIRE, FRONT (2A2)

(94132-18379-00)

Unavailable

4

SPACER (1L9)

90560-15161-00

Unavailable

5

FLANGE, SPACER

146-25115-00-00

$6.99

6

BEARING

93306-30212-00

$40.99

7

OIL SEAL (22X42X7)

93102-22014-00

$12.49

8

COLLAR (1L9)

90387-15550-00

$18.99

9

COVER, DUST

401-25367-00-00

Unavailable

10

WASHER, PLAIN

92990-14200-00

$5.49

11

NUT, CASTLE(2UJ)

90171-14056-00

$13.49

12

COVER, HOUSING

1U4-25847-00-00

Unavailable

13

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

14

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

15

RING, STOP

341-25137-00-00

Unavailable

16

WASHER PLATE 341251470000

90201-25286-00

Unavailable

17

GEAR, DRIVE

341-25135-01-00

Unavailable

18

WASHER PLATE 152172260000

90201-25490-00

Unavailable

19

OIL SEAL (45X56X6)

93105-45017-00

Unavailable

20

GEAR UNIT ASY

31A-25190-10-00

Unavailable

21

GEAR, METER

306-25138-00-00

Unavailable

22

SHIM, ROD

102-18416-00-00

Unavailable

23

BUSH

306-25136-00-00

Unavailable

24

PIN, SPRING (V60)

91609-20014-00

Unavailable

25

AXLE, WHEEL

1L9-25181-00-00

Unavailable

26

PIN, COTTER

91490-30030-00

Unavailable

27

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

27

BALANCER, WHEEL

5MT-25398-00-00

Unavailable
