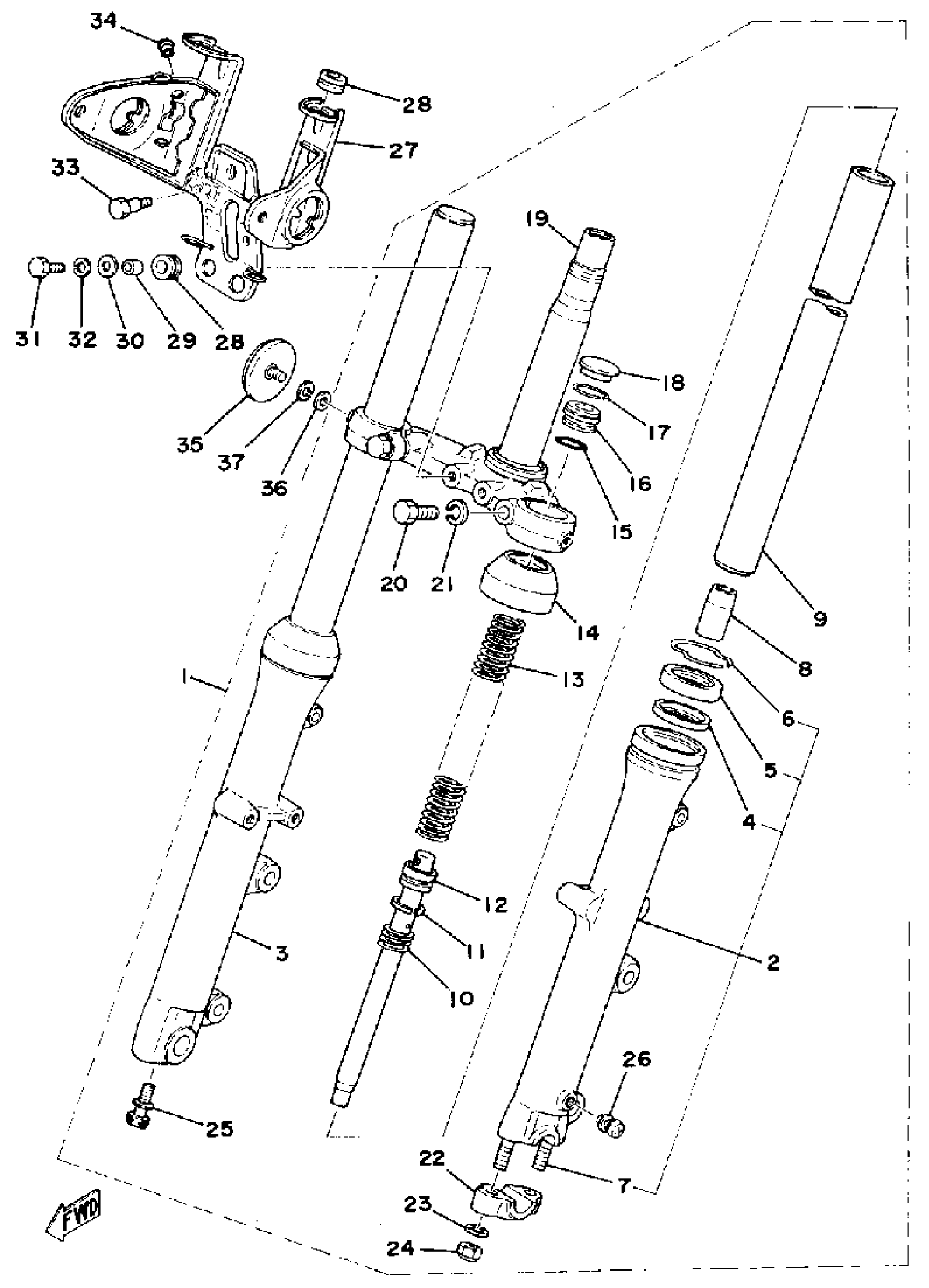

Yamaha XS400D (XS400) 1977 FRONT FORK Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(1L9-23101-01-00)

Unavailable

2

. TUBE, OUTER 1

2L0-23126-00-00

Unavailable

3

. TUBE, OUTER 2

1L9-23136-01-00

Unavailable

4

. WASHER, OIL SEAL

1L9-23146-00-00

Unavailable

5

OIL SEAL

1L9-23145-00-00

$25.99

6

. CLIP, OIL SEAL

1L9-23156-00-00

Unavailable

7

.. BOLT, STUD

90116-08260-00

Unavailable

8

. SPACER, OIL LOCK

1L9-23166-00-00

Unavailable

9

INNER TUBE 1

(1L9-23110-01-00)

Unavailable

10

SPRING, REBOUND

(1E7-23151-00-00)

Unavailable

11

RING, PISTON FRONT FORK

1E7-23157-00-00

$6.99

12

CYLINDER, FRTFRK

(1L9-23170-02-00)

Unavailable

13

SPRING, FRONT FORK

(1L9-23141-01-00)

Unavailable

14

SEAL, DUST

1L9-23144-00-00

$31.99

15

O-RING

1L9-23114-00-00

$7.99

16

SEAT, SPRING

1L9-23111-00-00

Unavailable

17

RING, STOPPER

1L9-23183-00-00

Unavailable

18

. CAP, FRONT FORK

1L9-23168-00-00

Unavailable

19

UNDER BRACKET

(1L9-23340-00-90)

Unavailable

20

BOLT(N02)

97070-10035-00

Unavailable

21

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

22

. HOLDER, AXLE

1E7-23167-00-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

25

BOLT

3M7-23181-00-00

Unavailable

26

. PLUG, DRAIN

1E7-23119-00-00

Unavailable

27

COVER, UPPER 1

1L9-23121-01-33

Unavailable

28

GROMMET (431)

90480-14052-00

Unavailable

29

COLLAR (3H5)

90387-060A3-00

Unavailable

30

WASHER, PLATE

90201-06380-00

Unavailable

31

BOLT, HEXAGON

97017-06020-00

Unavailable

32

WASHER, SPRING

92995-06100-00

Unavailable

33

BOLT 337847520000

90109-06005-00

Unavailable

34

STOPPER

(1U4-24768-00-00)

Unavailable

35

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

36

. WASHER, PLAIN

92990-05200-00

Unavailable

37

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable
