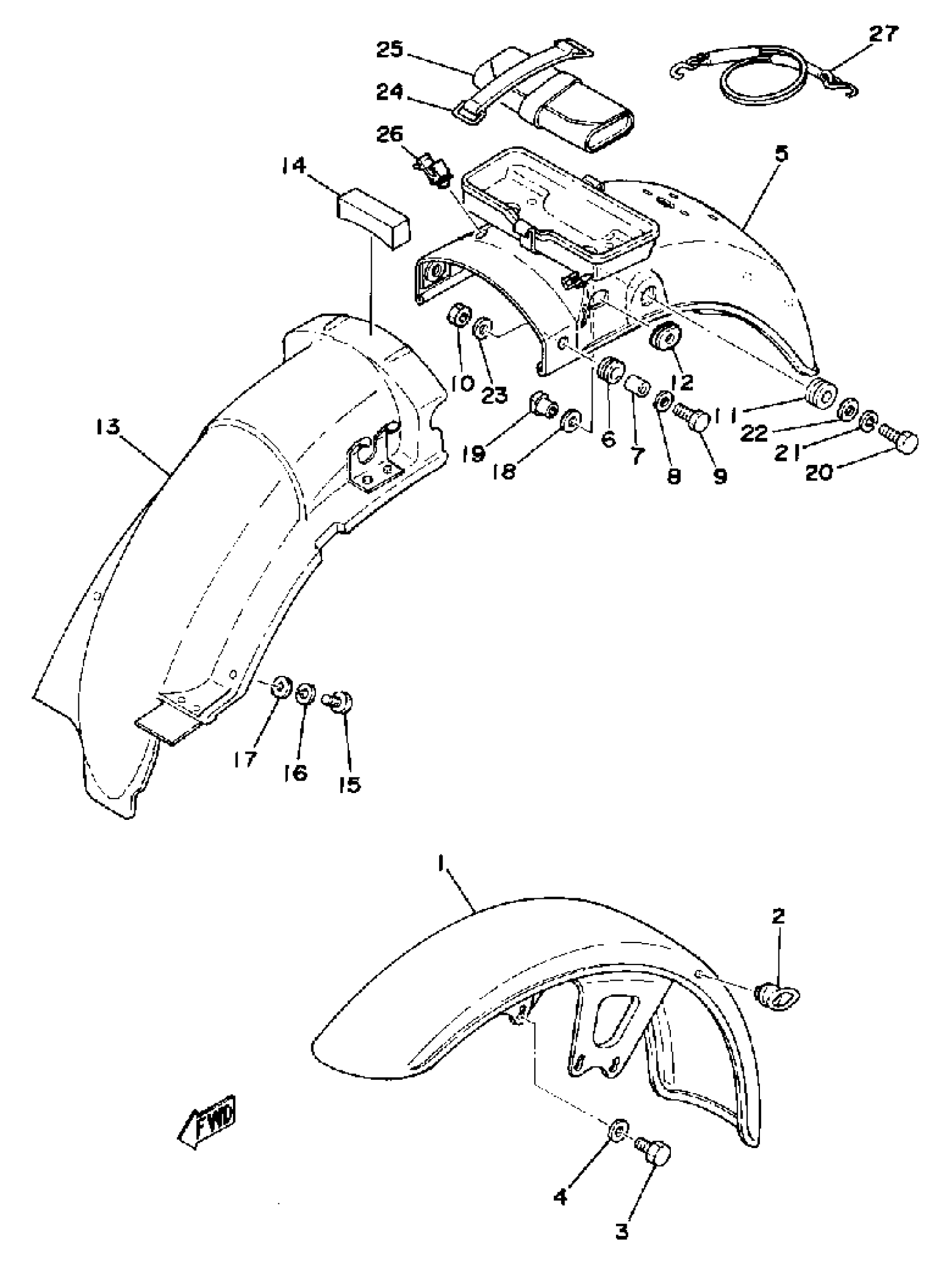

Yamaha XS400D (XS400) 1977 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1A0-21510-02-93

Unavailable

2

HOLDER, WIRE

1A0-21518-00-00

Unavailable

3

BOLT(JA9)

90101-08691-00

$4.29

4

WASHER, PLATE

(90201-08097-00)

Unavailable

5

REAR FENDER

(2A2-W2161-01-93)

Unavailable

6

GROMMET 839774310000

90480-14023-00

$7.49

7

COLLAR

90387-07020-00

$8.49

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

BOLT, HEXAGON

97017-06030-00

$3.61

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

DAMPER, FRONT

168-21638-00-00

$9.99

12

GROMMET (438)

90480-15061-00

$8.49

13

GUARD, MUD

(1U4-21620-00-00)

Unavailable

14

SEAL

(1L9-21268-00-00)

Unavailable

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

$2.80

18

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

19

NUT, REAR FENDER

248-21635-00-00

Unavailable

20

BOLT(JA9)

90101-08691-00

$4.29

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

WASHER, PLAIN

92990-08200-00

Unavailable

23

WASHER, PLATE

90201-06380-00

Unavailable

24

BAND, BATTERY

26L-82131-00-00

Unavailable

25

TOOL KIT

1L9-28100-00-00

Unavailable

26

CLAMP (1J7)

90464-16021-00

Unavailable

27

WIRE, HOOK

(1U4-2814A-00-00)

Unavailable
