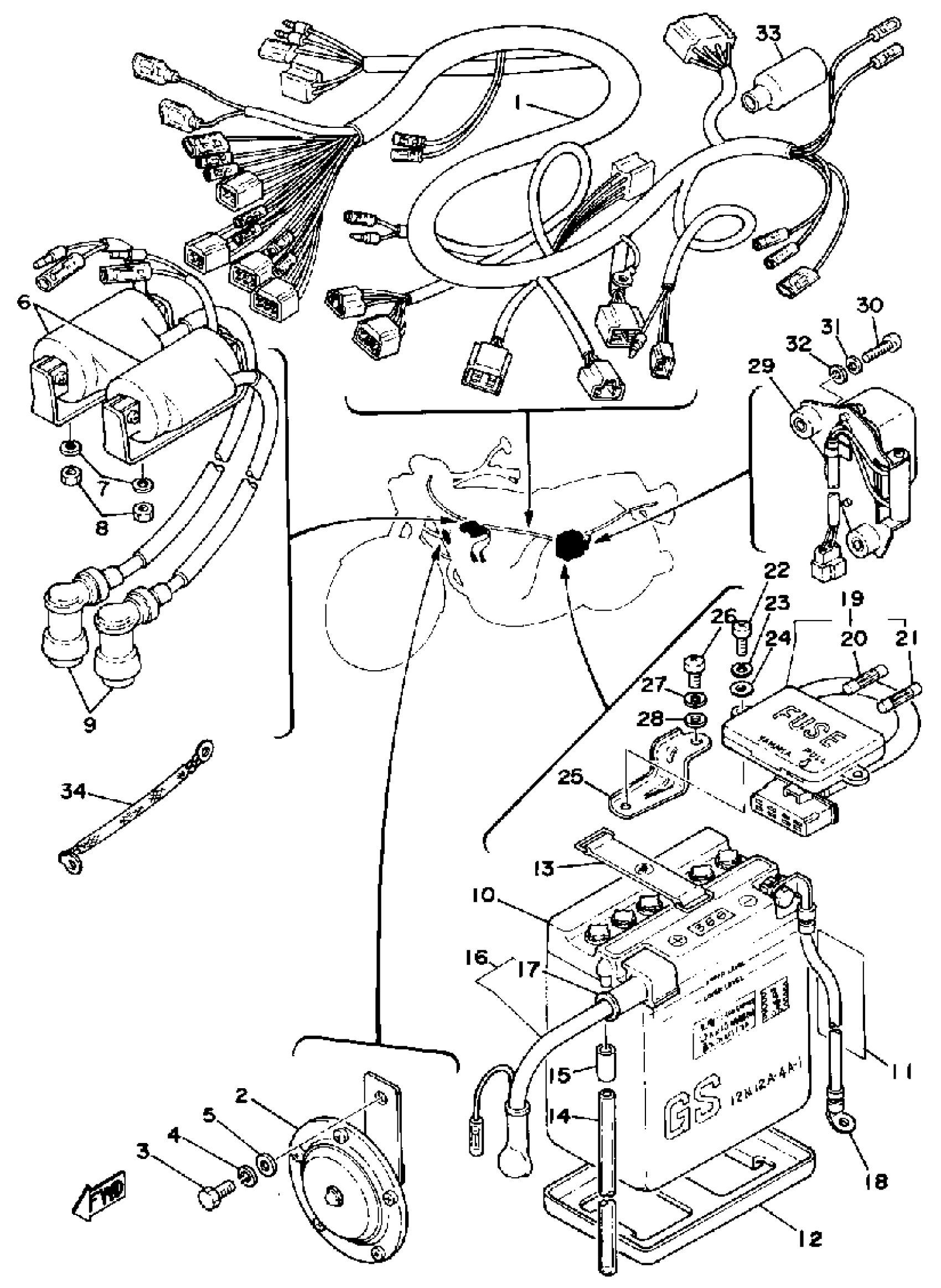

Yamaha XS400D (XS400) 1977 ELECTRICAL 1 Diagram

#

Description
Price

1

WIRE HARNESS ASSEMBLY

(2A2-82590-60-00)

Unavailable

2

HORN

(1U4-83371-20-00)

Unavailable

3

BOLT(JA9)

90101-08691-00

$4.29

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

.. WASHER, PLATE

92990-08600-00

Unavailable

6

IGNITION COIL ASSEMBLY

1L9-82310-51-00

Unavailable

7

WASHER, SPRING

92995-06100-00

Unavailable

8

NUT, HEXAGON

95380-06600-00

Unavailable

9

PLUG CAP ASSY

4BP-82370-01-00

$35.99

10

12N12A-4A-1 YUASA BATTERY

12N-12A4A-1Y-00

Unavailable

11

LABEL, BATTERY

40A-82141-G0-00

Unavailable

12

SEAT, BATTERY

(1L9-82122-00-00)

Unavailable

13

BAND, BATTERY

26L-82131-00-00

$7.99

14

HOSE

(90445-08331-00)

Unavailable

15

BUSH, SPEC''L NYLON

(90386-07043-00)

Unavailable

16

WIRE, PLUS LEAD

1L9-82115-01-00

Unavailable

17

COVER, LEAD WIRE

(1L9-82119-00-00)

Unavailable

18

WIRE, EARTH LEAD

1L9-82116-01-00

Unavailable

19

FUSE BOX ASSEMBLY

1L9-82170-00-00

Unavailable

20

FUSE

1A0-82161-00-00

Unavailable

21

FUSE

1A0-82151-00-00

Unavailable

22

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

23

WASHER(3SX)

92907-05100-00

Unavailable

24

WASHER, PLAIN (646)

92990-05600-00

Unavailable

25

STAY, FUSE BOX

(1L9-82171-10-00)

Unavailable

26

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

27

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

28

WASHER, PLAIN (646)

92990-05600-00

Unavailable

29

VOLTAGE REGULATOR ASSEMBLY

1L9-81910-50-00

Unavailable

30

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

WASHER, PLATE

90201-06380-00

Unavailable

33

COVER, CONNECTER

(306-82599-00-00)

Unavailable
