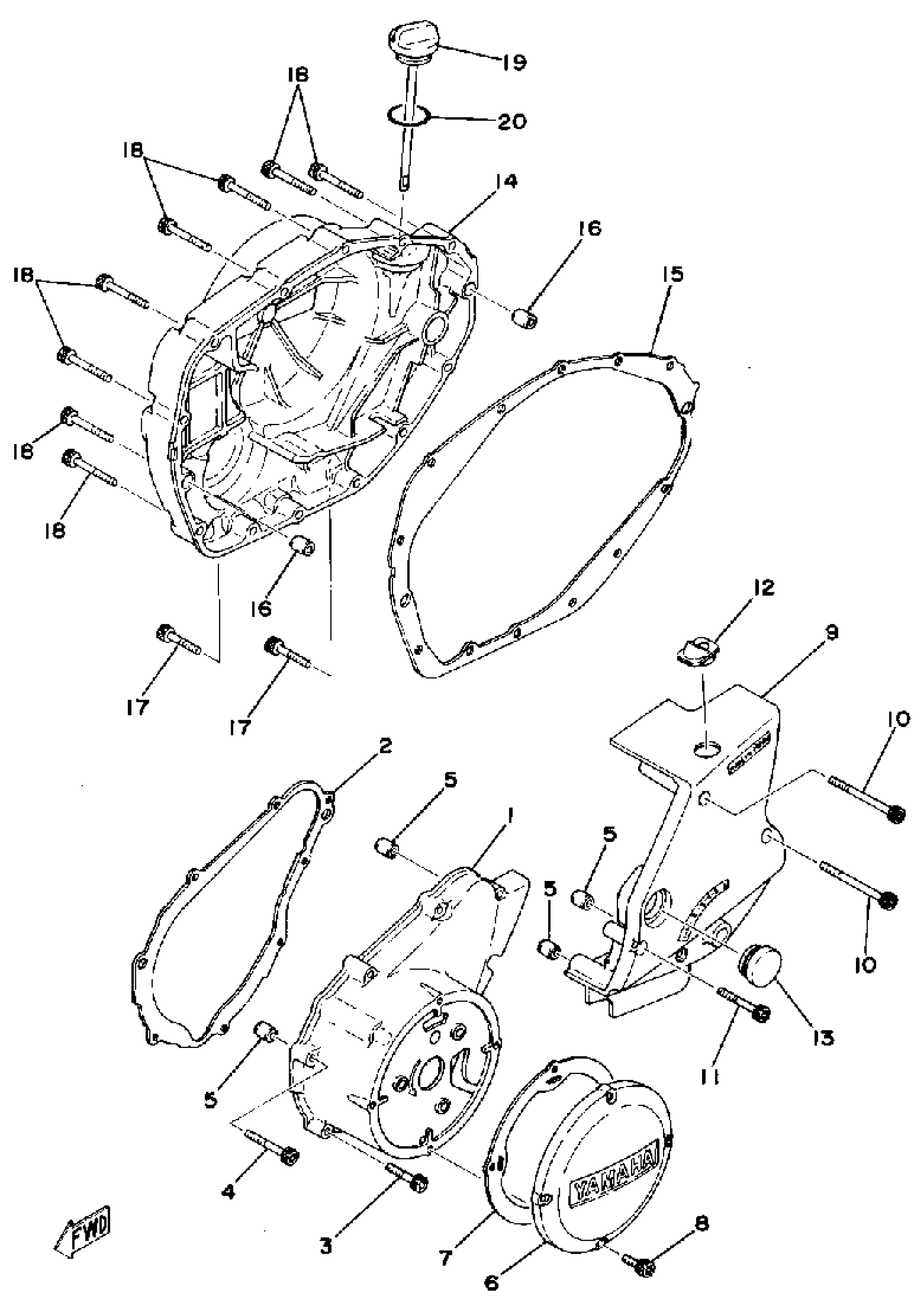

Yamaha XS400D (XS400) 1977 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

1L9-15411-11-00

Unavailable

2

GASKET, CRANKCASE COVER (L.H)

1L9-15461-10-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

4

BOLT,SOCKET

91317-06040-00

$3.76

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

COVER, GENERATOR

1L9-15415-01-00

Unavailable

7

GASKET 1

1L9-15455-11-00

Unavailable

8

BOLT, SOCKET

91317-05016-00

$3.28

9

COVER, CRANKCASE R

(1L9-15421-01-00)

Unavailable

10

BOLT, SOCKET

91317-06065-00

$3.76

11

BOLT,SOCKET

91317-06040-00

$3.76

12

HOLDER, CLCH CABLE

1L9-15441-00-00

Unavailable

13

COVER, CAP

1L9-15417-00-00

Unavailable

14

COVER, CRANKCASE 3 (3F9-15431-10)

3F9-15431-11-00

Unavailable

15

GASKET, CRANKCASE COVER (R.H)

1L9-15451-10-00

Unavailable

16

PIN, DOWEL(3VD)

99530-10114-00

$2.55

17

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

18

BOLT,SOCKET

91317-06040-00

$3.76

19

PLUG, OIL LEVEL

1L9-15362-00-00

Unavailable

20

O-RING(1KT)

93210-27778-00

Unavailable
