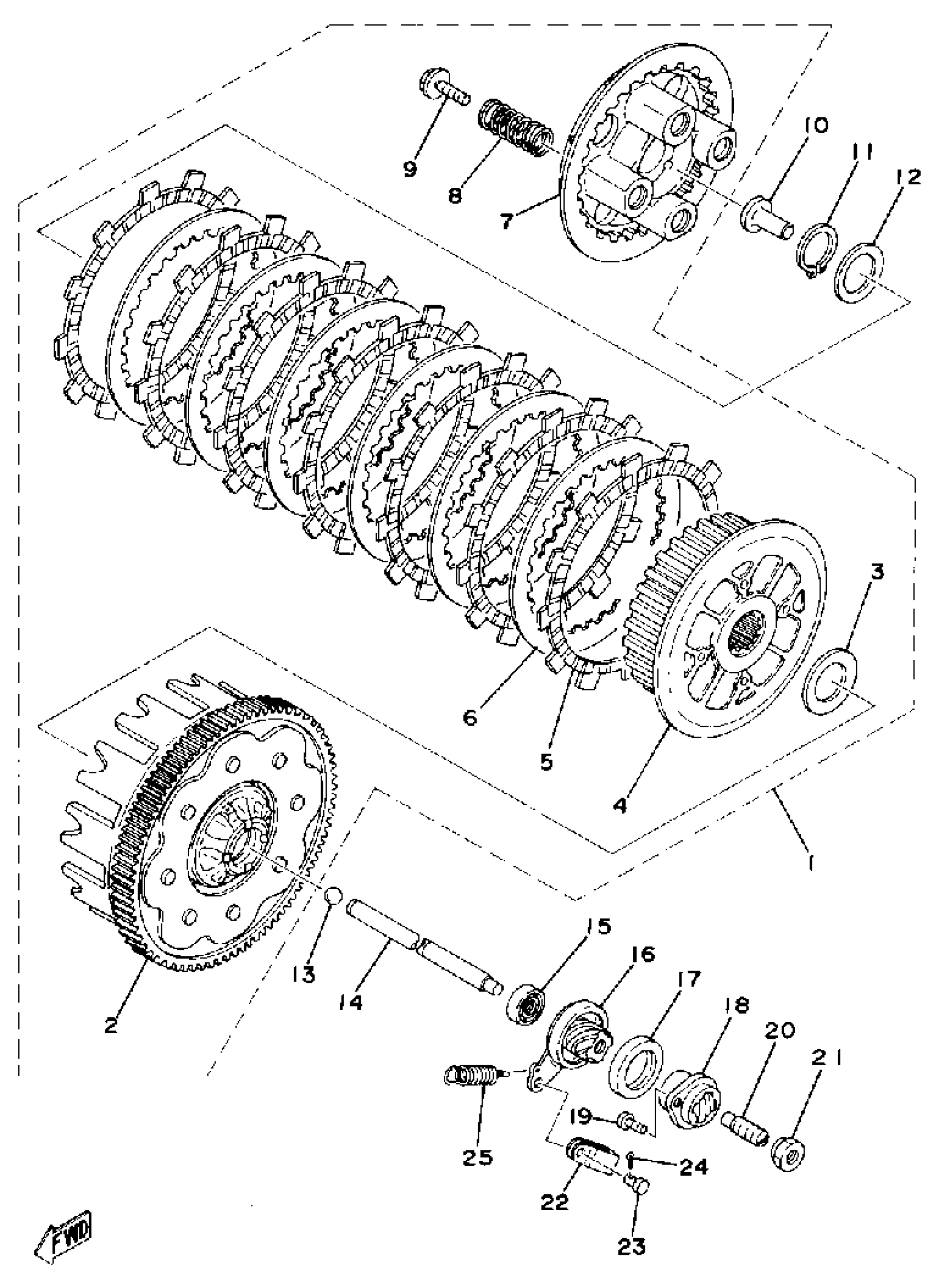

Yamaha XS400D (XS400) 1977 CLUTCH Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(1L9-16301-00-00)

Unavailable

2

PRI DRVN GEAR

(1L9-16150-01-00)

Unavailable

3

WASHER PLATE 371115580000

90201-25291-00

$10.49

4

. BOSS, CLUTCH

1L9-16371-00-00

Unavailable

5

PLATE, FRICTION

4H7-16321-02-00

$23.99

6

PLATE, CLUTCH 2

168-16325-10-00

$14.49

7

. PLATE, PRESSURE 1

1L9-16351-00-00

Unavailable

8

SPRING,COMPRESSION 2561633300

90501-26148-00

$4.99

9

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

10

ROD, PUSH 1

(1L9-16356-00-00)

Unavailable

11

CIRCLIP, S-TYPE

93410-24042-00

Unavailable

12

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

12

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

13

BALL

93505-16006-00

$8.49

14

ROD,PUSH

328-16357-00-00

Unavailable

15

OIL SEAL, SD-TYPE

93102-09245-00

Unavailable

16

PUSH LEVER ASY

1L9-16340-00-00

Unavailable

17

SEAL, DUST

214-16347-01-00

Unavailable

18

HOUSING, PUSH SCREW

371-16396-00-00

Unavailable

19

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

20

BOLT SET 256163430100

90113-08021-00

Unavailable

21

NUT

90179-08179-00

Unavailable

22

JOINT

214-16389-00-00

Unavailable

23

PIN W/HOLE 214163790000

90240-06005-00

Unavailable

24

. PIN, COTTER

91401-10015-00

Unavailable

25

SPRING, TENSION

90506-10023-00

Unavailable
