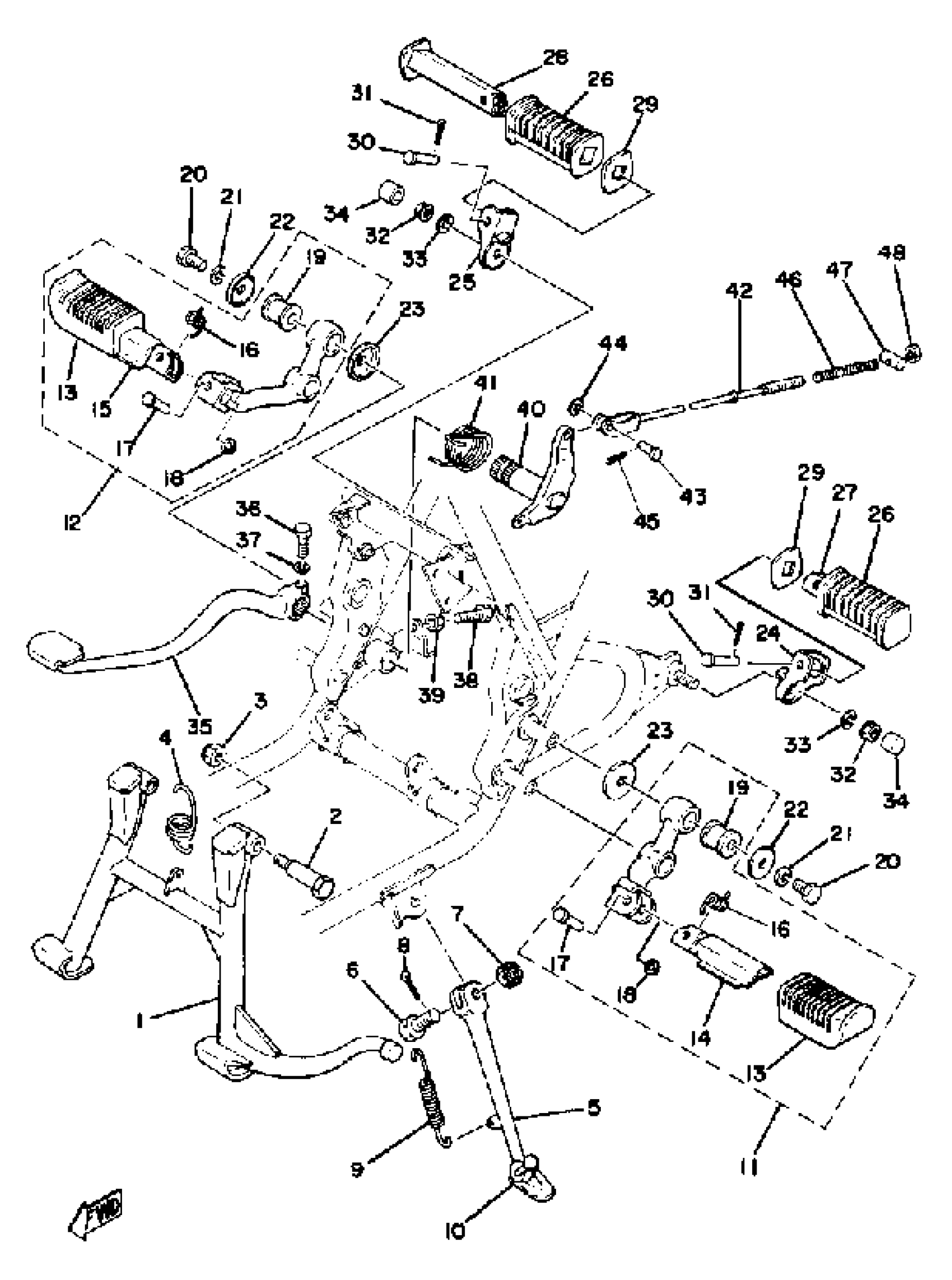

Yamaha XS400_2F (XS400_2F) 1979 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

2L0-27111-01-00

Unavailable

2

BOLT

90109-10440-00

Unavailable

3

NUT, U

95617-10100-00

$8.49

4

SPRING, TENSION

90506-45063-00

Unavailable

5

STAND, MAIN

1L9-27311-02-33

Unavailable

6

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

7

NUT,CASTLE

90171-10049-00

Unavailable

8

PIN, COTTER

91490-20025-00

$1.99

9

SPRING, TENSION (1L9)

90506-26270-00

$15.99

10

STOPPER

278-27314-00-00

Unavailable

11

FRONT FOOTREST ASSEMBLY L

3F9-27410-00-33

Unavailable

12

FRT FOOTREST ASSEMBLY R

(4R4-27420-00-33)

Unavailable

13

COVER, FOOTREST

4L0-27423-00-00

$49.99

14

FOOTREST

3CK-27451-00-00

Unavailable

15

FOOTREST

3N6-27461-00-00

Unavailable

16

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

17

PIN (214-27418-00)

90243-08006-00

Unavailable

18

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

19

GROMMET(4CG)

90480-20543-00

Unavailable

20

BOLT, HEXAGON

97013-08016-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

WASHER, PLATE

90209-08150-00

Unavailable

23

WASHER, PLATE (1L9)

90209-12157-00

Unavailable

24

BRACKET 1

2L0-27432-01-00

Unavailable

25

. BRACKET

2L0-27442-01-00

Unavailable

26

COVER, REAR FOOTREST

447-27433-00-00

Unavailable

27

FOOTREST, REAR 1

447-27431-00-00

Unavailable

28

FOOTREST, REAR 2

447-27441-00-00

Unavailable

29

WASHER 447274370000

90209-18070-00

Unavailable

30

PIN, WITH HOLE (465)

90240-06042-00

Unavailable

31

PIN, COTTER

91490-16020-00

Unavailable

32

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

33

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

34

CAP, TOOL BOX

262-21399-00-00

Unavailable

35

PEDAL,BRAKE

1L9-27211-00-93

Unavailable

36

BOLT (1J7)

90109-06468-00

Unavailable

37

WASHER, SPRING

92995-06100-00

Unavailable

38

SCREW 341272170000

90153-06008-00

Unavailable

39

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

40

SHAFT, BRAKE PEDAL

(1L9-27212-00-00)

Unavailable

41

SPRING, TORSION

90508-35315-00

Unavailable

42

ROD, BRAKE

2V6-27231-00-00

Unavailable

43

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

44

WASHER, PLAIN (646)

92990-06600-00

Unavailable

45

PIN, COTTER

91490-25020-00

Unavailable

46

SPRING, (180-27236-00)

90501-10245-00

Unavailable

47

PIN 1562723700

90249-12008-00

Unavailable

48

NUT (25K)

90179-06411-00

Unavailable
