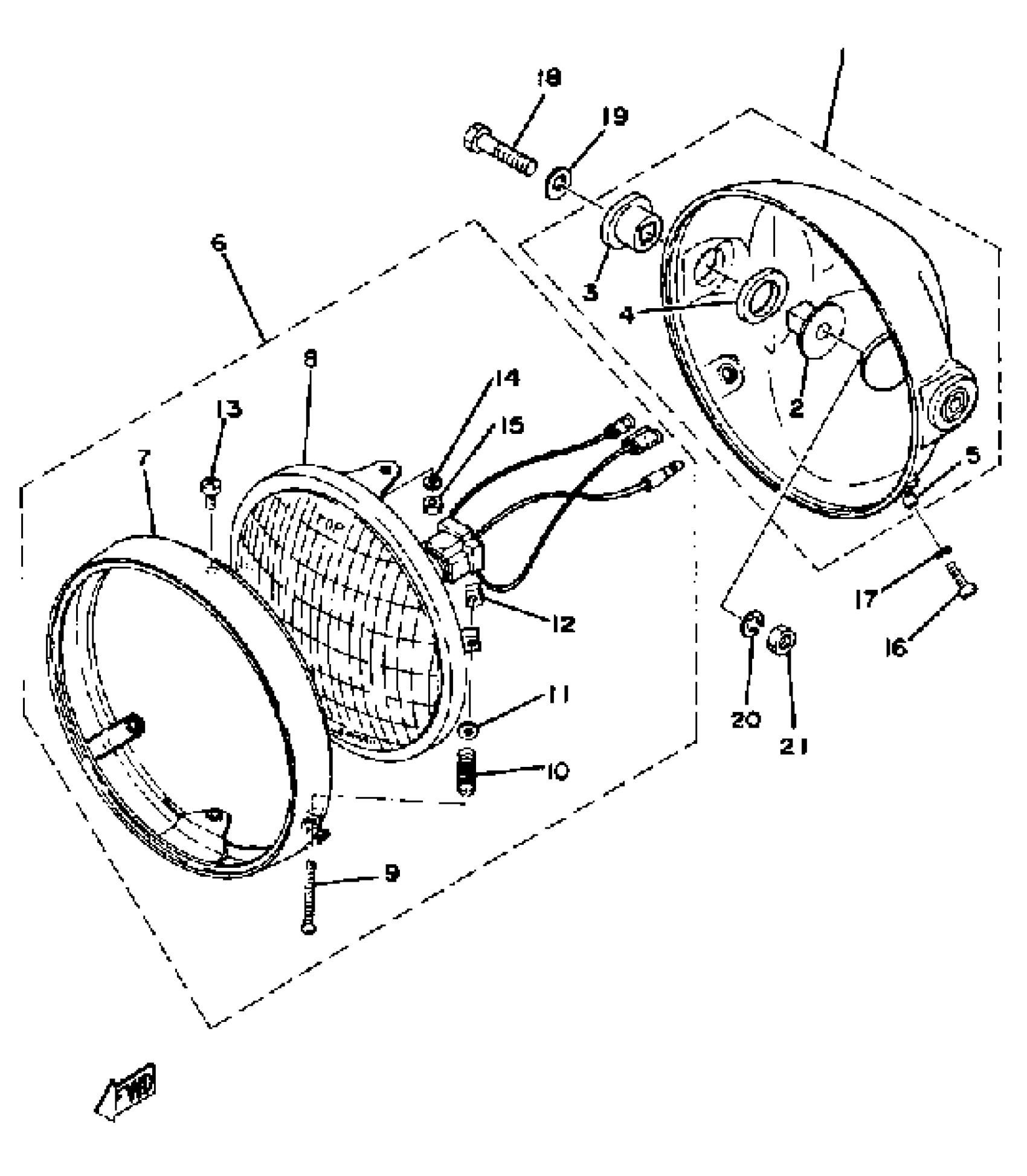

Yamaha XS400_2F (XS400_2F) 1979 HEADLIGHT Diagram

#

Description
Price

1

BODY ASSEMBLY

(1T6-84330-60-00)

Unavailable

2

. COLLAR, BODY FTNG

1L9-84338-60-00

Unavailable

3

. DAMPER, HEADLIGHT 1

1L9-84366-61-00

Unavailable

4

. DAMPER, HEADLIGHT 2

1L9-84367-61-00

Unavailable

5

. SPACER

1L9-84327-60-00

Unavailable

6

UNAVAILABLE IN PRICE BOOK

(1L9-84310-60-00)

Unavailable

7

RIM, HEAD LAMP

1L9-84315-60-00

Unavailable

8

. LENS ASSEMBLY

1L9-84320-61-00

Unavailable

9

SCREW, RIM ADJUSTING

4KG-84331-00-00

$3.68

10

SPRING,SCREW

3AA-84332-00-00

Unavailable

11

WASHER, PLAIN (646)

92990-04600-00

$0.91

12

NUT, ADJUSTING

5PX-84334-00-00

$6.29

13

SCREW, PAN HEAD(62X)

97885-05010-00

$2.80

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

NUT, HEXAGON (663)

95380-05600-00

$6.08

16

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

17

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

18

BOLT

97013-08035-00

Unavailable

19

WASHER, PLAIN

92990-08200-00

$2.36

20

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

21

NUT(6L2)

95333-08600-00

Unavailable
