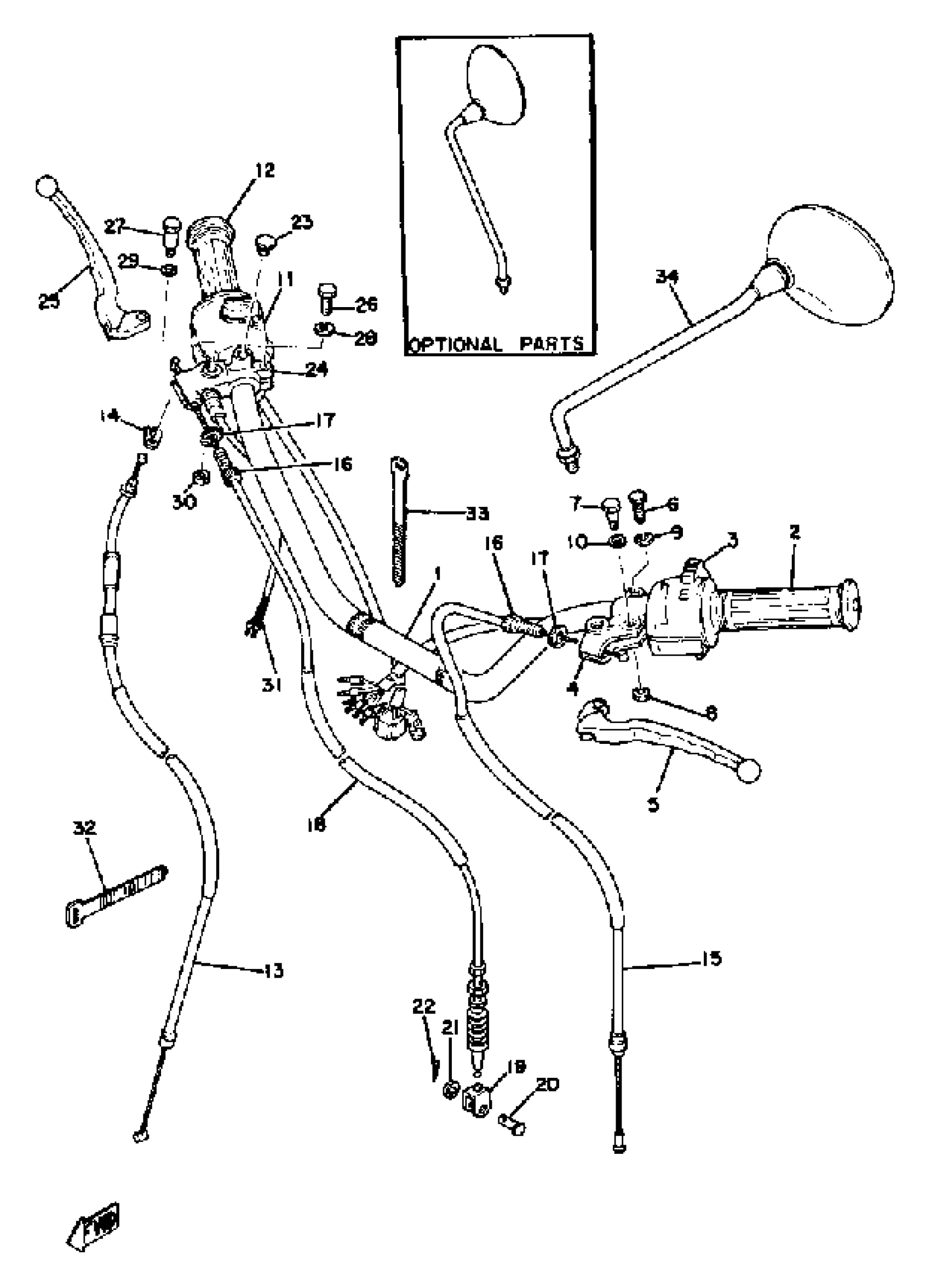

Yamaha XS400_2F (XS400_2F) 1979 HANDLE - WIRE Diagram

#

Description
Price

1

HANDLEBAR

2L0-26111-00-00

Unavailable

2

GRIP LH

2H7-26241-01-00

$11.99

3

SWITCH, HANDLE 3

3F9-83973-00-00

Unavailable

4

HOLDER, LEVER (L.H) (371,447)

341-82911-00-00

Unavailable

5

LEVER 1

23X-83912-02-00

$27.99

6

BOLT, HEXAGON

97013-06022-00

$0.90

7

BOLT(3GB)

90109-061F3-00

$7.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLATE 1562722600

90201-08083-00

$9.49

11

SWITCH, HANDLE 1

(2V6-83976-00-98)

Unavailable

12

GRIP ASSY

2H7-26240-01-00

$18.49

13

CABLE, THROTTLE 1 (780 MM)

1L9-26311-00-00

Unavailable

14

HOLDER,

584-26393-02-00

Unavailable

15

CABLE, CLUTCH

2L0-26335-00-00

Unavailable

16

BOLT

90123-08002-00

Unavailable

17

NUT

90179-08030-00

Unavailable

18

CABLE, BRAKE

2V6-26341-00-00

Unavailable

19

JOINT, WIRE

156-26347-00-00

Unavailable

20

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

21

WASHER, PLATE 1562722600

90201-08083-00

$9.49

22

PIN, COTTER

91490-20025-00

Unavailable

23

PLUG (341-26329-00)

90338-09012-00

Unavailable

24

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

Unavailable

25

LEVER R

23X-83922-01-00

Unavailable

26

BOLT, HEXAGON

97013-06022-00

$0.90

27

BOLT(3GB)

90109-061F3-00

$7.49

28

WASHER, SPRING

92995-06100-00

Unavailable

29

WASHER, PLATE 1562722600

90201-08083-00

$9.49

30

NUT, SELF-LOCKING

95617-06100-00

$8.49

31

FRONT STOP SWITCH ASSY

395-83980-09-00

Unavailable

32

BAND, SWITCH CORD

437-83936-01-00

Unavailable

33

BAND

341-26397-01-00

Unavailable

34

MIRROR ASSEMBLY RH

2H7-26290-00-00

Unavailable

34

MIRROR ASSEMBLY LH

4G0-26290-10-00

Unavailable
