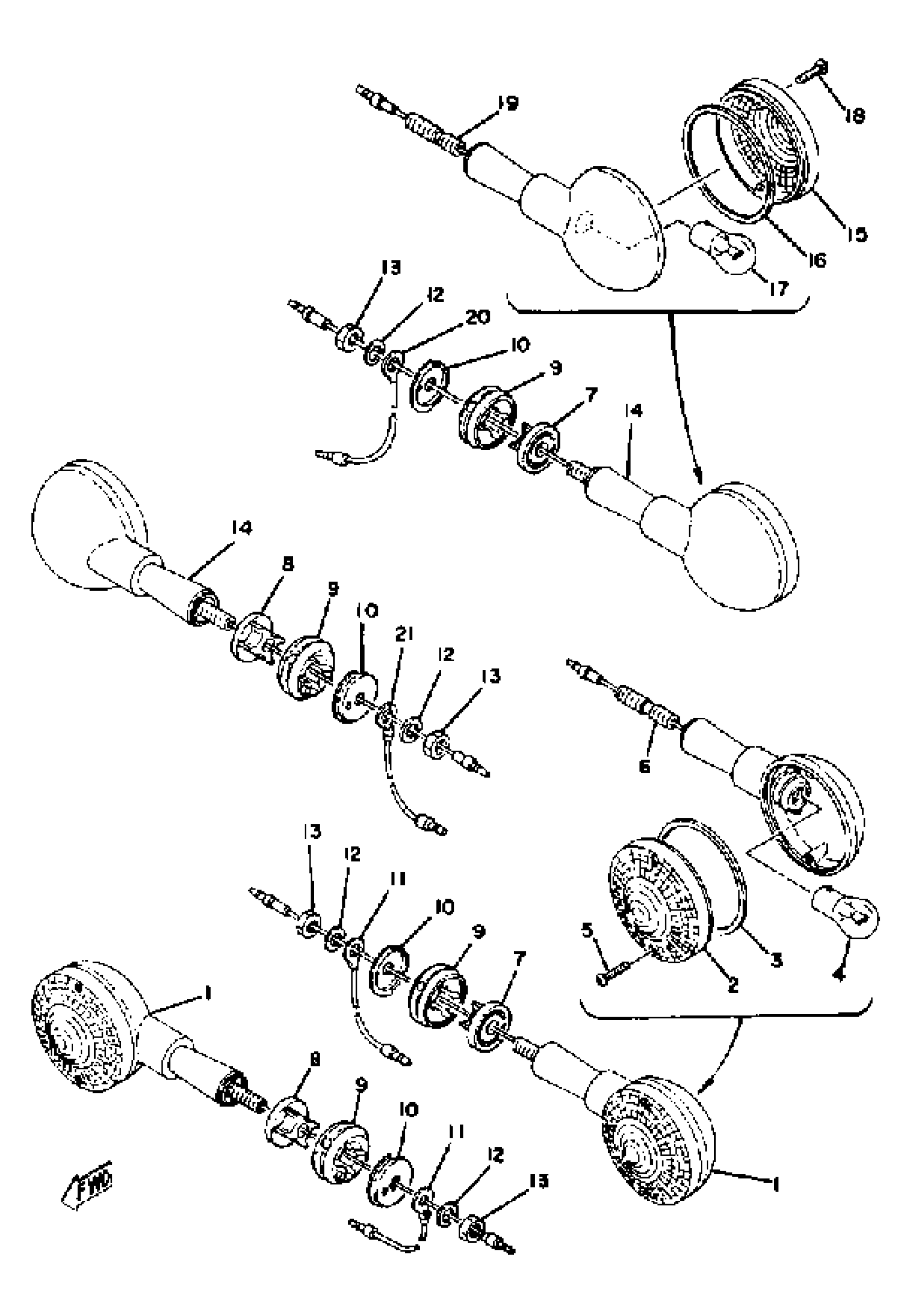

Yamaha XS400_2F (XS400_2F) 1979 FLASHER LIGHT Diagram

#

Description
Price

1

RIGHT FLASHER LIGHT ASSEMBLY

2L0-83340-E0-93

Unavailable

2

LENS, FLASHER

341-83312-70-00

Unavailable

3

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

6

. BOLT, STUD

360-83367-09-00

Unavailable

7

COLLAR, FLASHER 2

1U4-83326-00-00

Unavailable

8

COLLAR, FLASHER 1

1U4-83316-00-00

Unavailable

9

DAMPER, FLASHER 1

1U4-83321-00-00

Unavailable

10

WASHER

90209-08008-00

$7.49

11

WIRE, EARTH LEAD 2

3FU-83364-00-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

NUT(6L2)

95333-08600-00

$2.49

14

RIGHT FLASHER LIGHT ASSEMBLY

2L0-83340-E0-93

Unavailable

15

LENS, FLASHER

341-83312-70-00

Unavailable

16

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

17

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

18

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

19

. BOLT, STUD

360-83367-09-00

Unavailable

20

CORD

1H2-83346-00-00

Unavailable

21

WIRE, EARTH LEAD 2

3FU-83364-00-00

Unavailable
