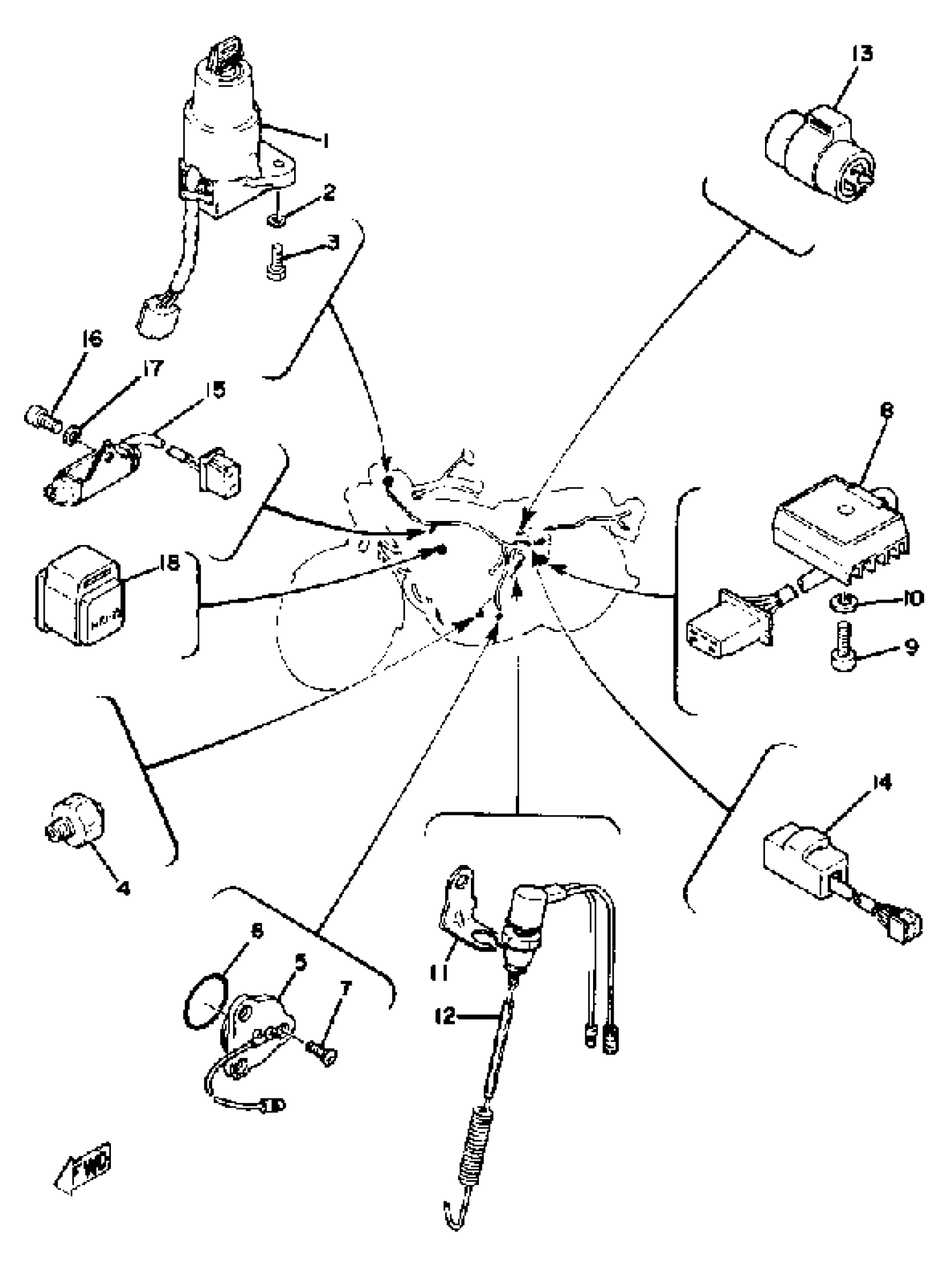

Yamaha XS400_2F (XS400_2F) 1979 ELECTRICAL 2 Diagram

#

Description
Price

1

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

2

WASHER, PLAIN (646)

92990-06600-00

$2.80

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

Unavailable

5

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

6

O-RING (371)

93210-29196-00

$8.49

7

SCREW, FLAT

98707-05012-00

$1.71

8

RECTIFIER ASSEMBLY

1L9-81970-60-00

Unavailable

9

SCREW PAN HEAD

98580-06020-00

$8.49

10

WASHER, SPRING

92995-06100-00

Unavailable

11

STAY, STOP SWITCH

(1L9-82539-01-00)

Unavailable

12

STOP SWITCH ASSEMBLY

1L9-82530-02-00

Unavailable

13

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

14

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

15

CONDENSER 1

1L9-81625-50-00

Unavailable

16

SCREW, PAN

98507-06014-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

RELAY ASSEMBLY

2H7-81950-10-00

Unavailable
