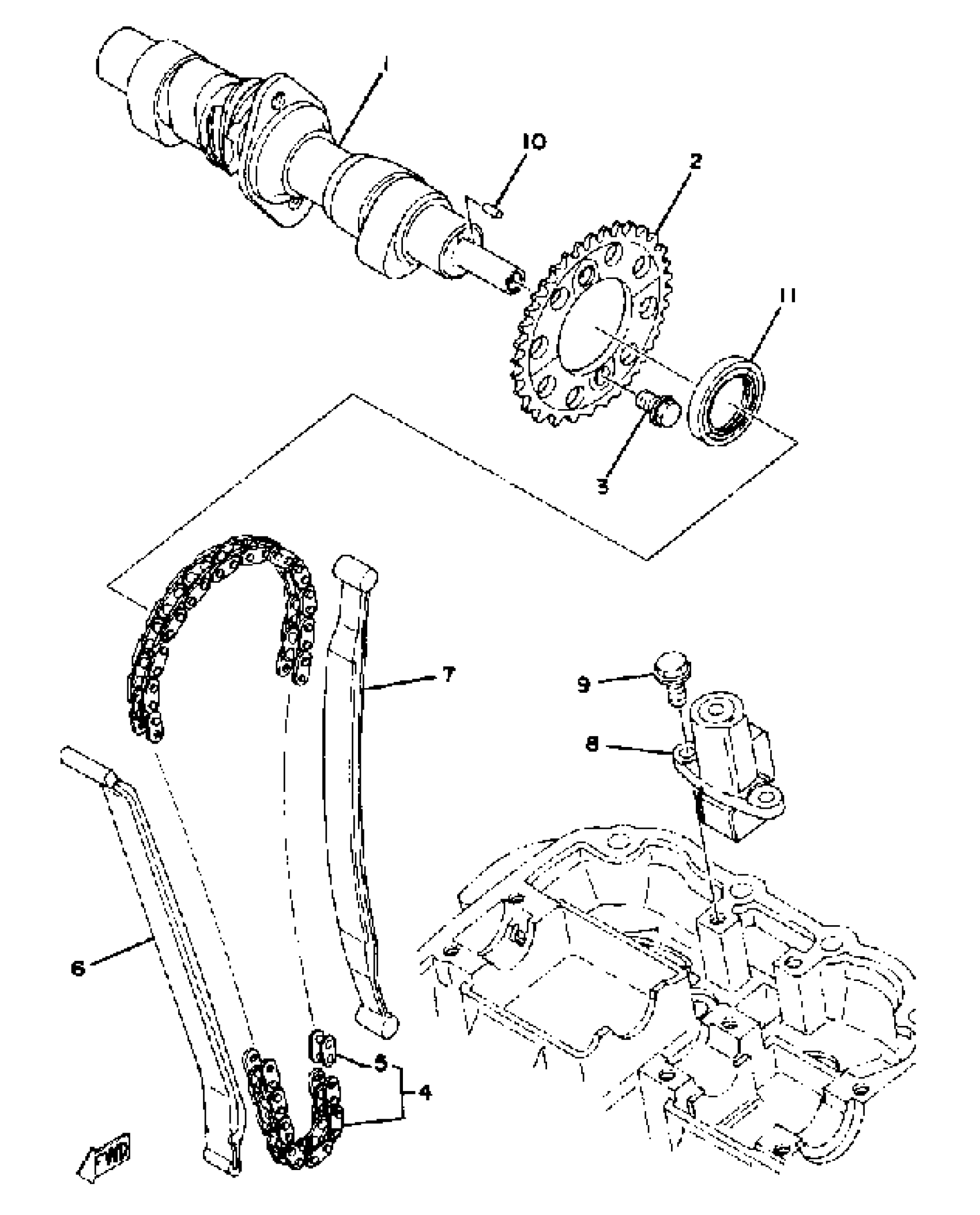

Yamaha XS400_2F (XS400_2F) 1979 CAMSHAFT - CHAIN TENSIONER Diagram

#

Description
Price

1

CAMSHAFT 1

1M0-12171-00-00

Unavailable

2

SPROCKET, CAM CHAIN

1L9-12176-00-00

Unavailable

3

BOLT, FLANGE

90105-07004-00

$4.66

4

CHAIN, CAM SHAFT (1L9)

94500-02092-00

$63.72

5

JOINT, CHAIN (583)

94600-02001-00

$6.29

6

GUIDE, STOPPER 1

1L9-12231-00-00

Unavailable

7

GUIDE, STOPPER 2

1L9-12241-02-00

Unavailable

8

TENSIONER ASY, CAM CHN

1L9-12210-02-00

Unavailable

9

BOLT, FLANGE

95817-06016-00

$1.40

10

PIN, DOWEL

93603-07073-00

$5.45

11

OIL SEAL, SD-TYPE

93102-23190-00

Unavailable
