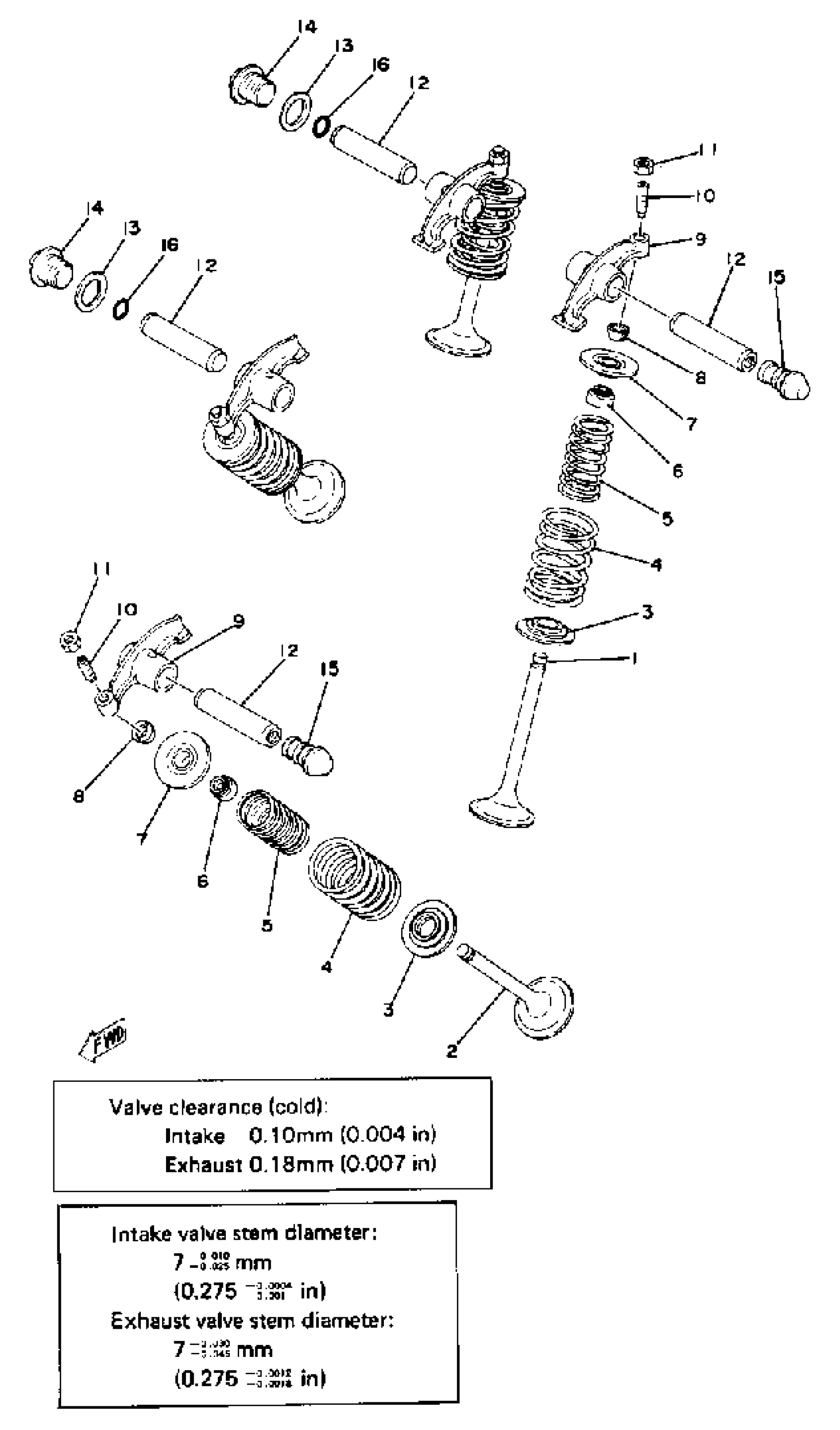

Yamaha XS400-2E (XS400) 1978 VALVE - ROCKER ARM Diagram

#

Description
Price

1

VALVE, INTAKE #3

1L9-12111-03-00

Unavailable

2

VALVE,EXHAUST #2

1L9-12121-02-00

Unavailable

3

SEAT, VALVE SPRING

1L9-12116-00-00

Unavailable

4

SPRING, VALVE OUTER

1L9-12114-00-00

Unavailable

5

SPRING, VALVE INNER

1L9-12113-00-00

Unavailable

6

SEAL, VALVE STEM OIL

1J7-12119-01-00

$20.99

7

RETAINER, VALVE SPR

1L9-12117-00-00

Unavailable

8

LOCK, VALVE SPRING

1J7-12118-00-00

$7.99

9

ARM, VALVE ROCKER

1L9-12151-01-00

Unavailable

10

SCREW, VALVE ADJUSTING

22U-12159-00-00

Unavailable

11

NUT HEXAGON 371121580000

90170-06128-00

$8.49

12

SHAFT, ROCKER

1L9-12156-01-00

Unavailable

13

GASKET

90430-16048-00

Unavailable

14

PLUG, ROCKER

1L9-11177-01-00

Unavailable

15

PLUG, BLIND

1L9-11197-00-00

Unavailable

16

O-RING

93210-07438-00

Unavailable
