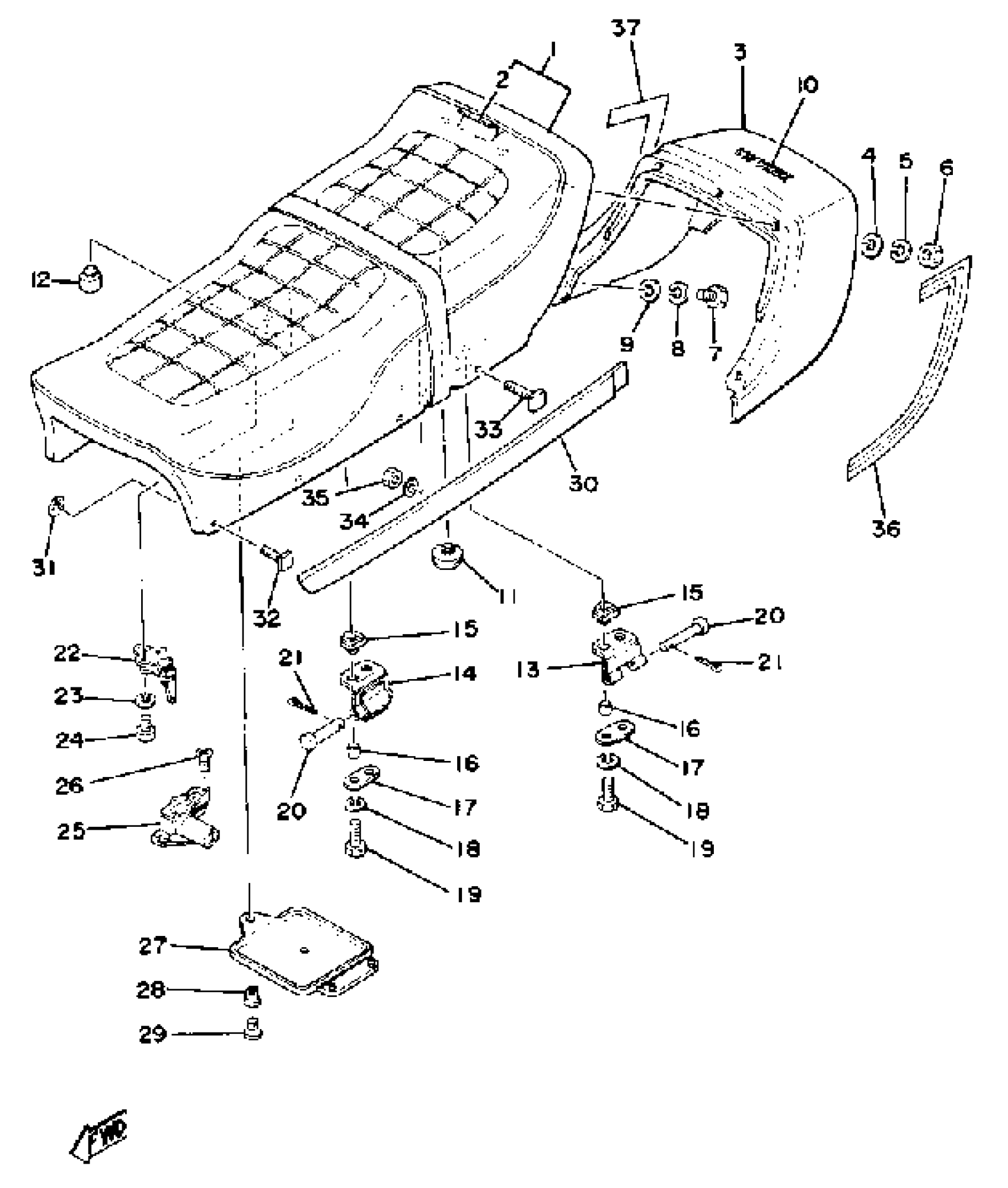

Yamaha XS400-2E (XS400) 1978 SEAT Diagram
#
1
DOUBLE SEAT ASSEMBLY
(2A2-W2472-00-00)
Unavailable
2
. COVER, DOUBLE SEAT
2A2-24731-00-00
Unavailable
3
COVER, TAIL
(1U4-24756-00-E9)
Unavailable
4
. WASHER, PLAIN
92990-05200-00
Unavailable
7
BOLT, HEXAGON
97313-05016-00
Unavailable
10
EMBLEM, YAMAHA
99245-00100-00
Unavailable
13
HINGE, SEAT
1L9-24769-00-00
Unavailable
14
HINGE, SEAT
(1L9-24726-02-00)
Unavailable
15
DAMPER, SEAT
1J7-24723-00-00
Unavailable
16
COLLAR
90387-07020-00
Unavailable
17
WASHER, SEAT
1L9-24746-00-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
BOLT, HEXAGON
97017-06025-00
Unavailable
20
PIN, CLEVIS
91701-05055-00
Unavailable
21
CLIP (156-83525-00)
90468-10050-00
Unavailable
22
BRACKET, SEAT
371-24728-02-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
BOLT (661)
97013-06012-00
Unavailable
25
HELMET HANGER ASSY
4A3-24705-00-00
Unavailable
26
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
Unavailable
27
LID
2R6-28185-00-00
Unavailable
28
GROMMET (341-28187-00)
90480-06007-00
Unavailable
29
PLUNGER
341-28188-00-00
Unavailable
30
MOLD, SEAT
(1L9-24785-00-E9)
Unavailable
30
MOLD, SEAT
(1L9-24785-10-E9)
Unavailable
31
NUT, SPRING (1L9)
90183-04012-00
Unavailable
32
RIVET
(1L9-24789-00-00)
Unavailable
33
BOLT, LEVER FITTING
1J7-24777-00-00
Unavailable
34
WASHER, SPECIAL
1J7-24722-00-00
Unavailable
35
NUT(6TA)
95307-04600-00
Unavailable
36
GRAPHIC, TAIL COVER
(2A2-24757-00-00)
Unavailable
37
GRAPHIC, TAIL COVER
(2A2-24767-00-00)
Unavailable
