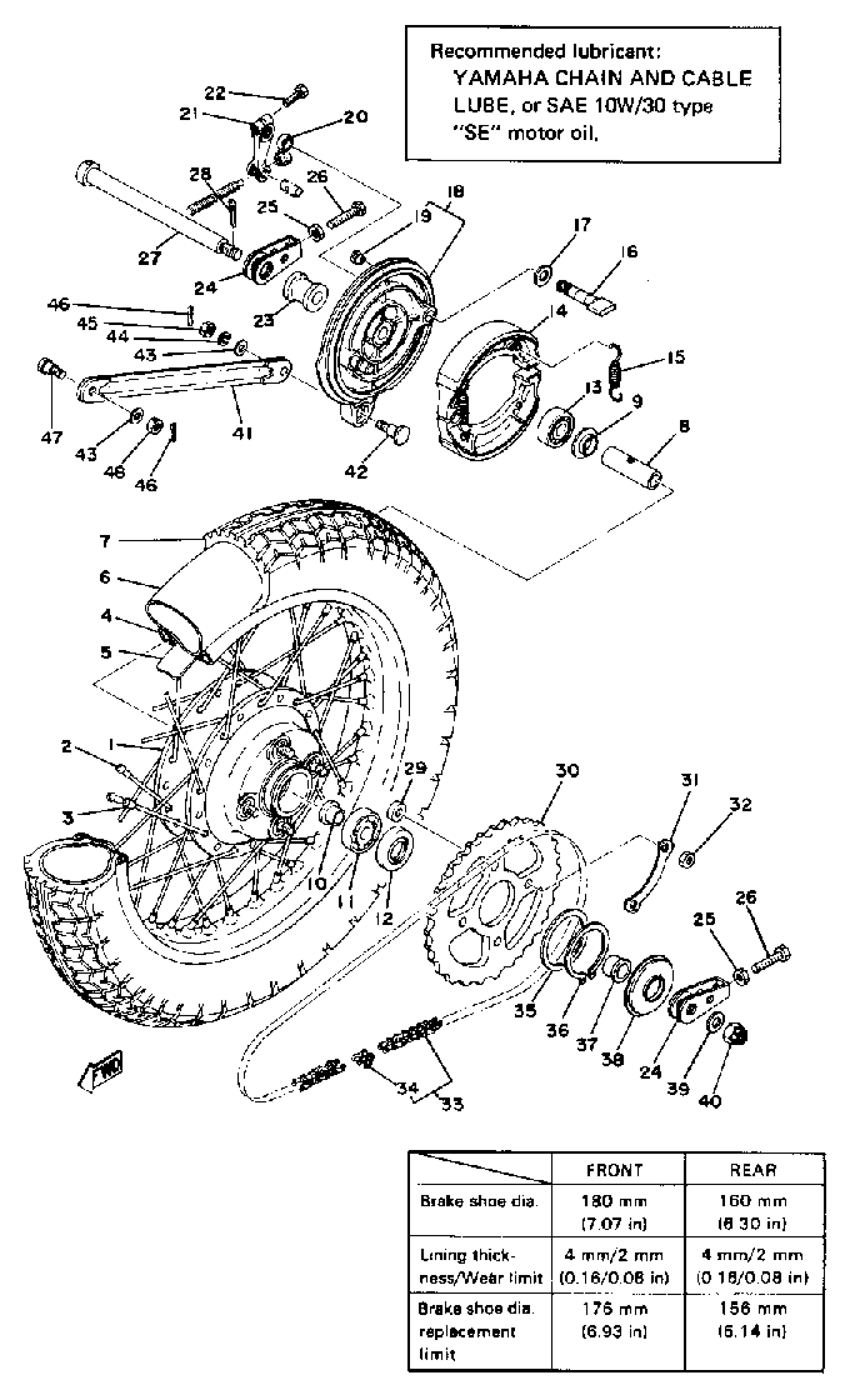

Yamaha XS400-2E (XS400) 1978 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(2G5-W2531-00-38)

Unavailable

2

SPOKE SET, REAR

1L9-25304-00-00

Unavailable

3

BALANCER, WHEEL

3HT-25398-00-00

$7.99

4

RIM 1.85X18

94418-18026-00

Unavailable

5

BAND, RIM (2J4)

94340-18086-00

$17.99

6

TUBE (5H5)

94227-18195-00

$35.99

7

350X18 BS 21R

(94135-18360-00)

Unavailable

8

SPACER

90560-17162-00

Unavailable

9

FLANGE, SPACER

146-25315-00-00

$7.99

10

COLLAR, WHEEL

1A1-25377-00-00

Unavailable

11

BEARING(3BC)

93306-30437-00

$66.99

12

OIL SEAL (27X52X5-256)

93104-27026-00

$19.99

13

BEARING(4HM)

93306-30317-00

$39.99

14

BRAKE SHOE KIT

1HX-W253E-00-00

$36.99

15

SPRING, TENSION 2462533300

90507-20002-00

$8.49

16

CAMSHAFT

214-25351-01-00

Unavailable

17

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

18

BRAKE SHOE PLATE ASSEMBLY

(1L9-25320-00-00)

Unavailable

19

GROMMET (397)

90480-10068-00

Unavailable

20

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

21

LEVER, CAMSHAFT

1L9-25355-00-00

Unavailable

22

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

23

COLLAR, WHEEL

148-25383-00-00

Unavailable

24

PULLER,CHAIN 2

12R-25389-00-00

Unavailable

25

. NUT

95380-08700-00

Unavailable

26

BOLT

90101-08060-00

Unavailable

27

AXLE, WHEEL

1J3-25381-00-00

Unavailable

28

PIN, COTTER

91490-30030-00

Unavailable

29

COLLAR

90387-23633-00

Unavailable

30

SPROCKET, DRIVN 37T

1J3-25437-20-00

Unavailable

31

WASHER

1J3-25412-00-00

Unavailable

32

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

33

DID50HDSS-102L

94580-20102-00

Unavailable

34

. JOINT CHAIN

94685-30011-00

Unavailable

35

WASHER, PLATE

90201-66585-00

Unavailable

36

CIRCLIP, S-TYPE

93410-65040-00

Unavailable

37

COLLAR

90387-17551-00

Unavailable

38

COVER, HUB DUST

1L9-25367-00-00

Unavailable

39

WASHER, PLAIN

92990-14200-00

Unavailable

40

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

41

BAR, TENSION

(168-25371-00-00)

Unavailable

42

BOLT

90109-08184-00

Unavailable

43

.. WASHER, PLATE

92990-08600-00

Unavailable

44

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

45

NUT, HEXAGON (509)

90170-08158-00

Unavailable

46

PIN, COTTER

91490-20025-00

Unavailable

47

BOLT

90109-08375-00

Unavailable

48

NUT(3KX)

90179-08639-00

Unavailable
