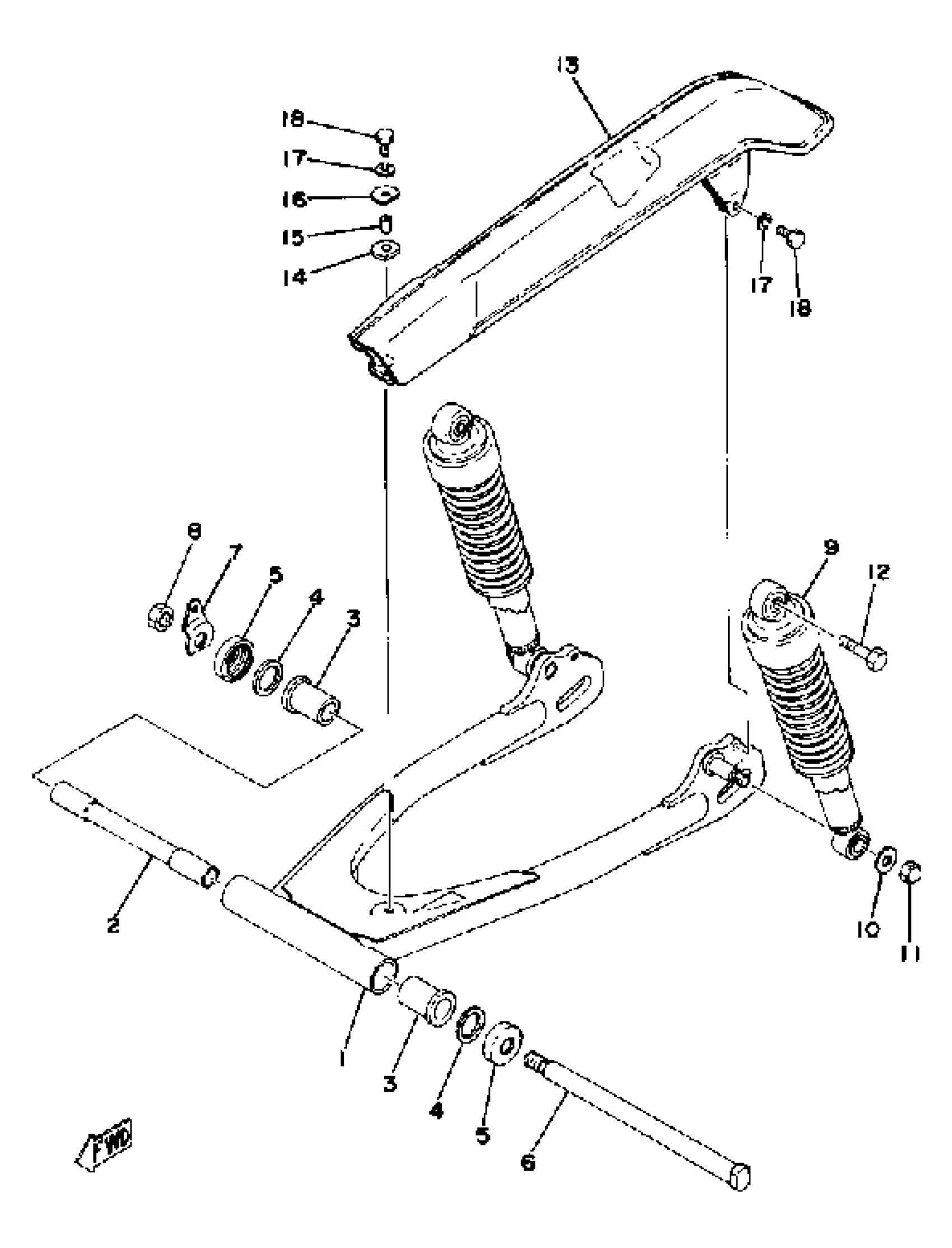

Yamaha XS400-2E (XS400) 1978 REAR ARM - REAR CUSHION - CHAIN CASE Diagram

REAR ARM

(1L9-22110-00-33)

Unavailable

COLLAR (322-22124-00)

90387-16398-00

Unavailable

BUSH (5A9)

90386-22102-00

$40.99

SHIM,REAR ARM

240-22127-00-00

$6.99

COVER, THRUST

322-22128-01-00

$35.99

SHAFT, PIVOT

1L9-22141-00-00

Unavailable

WASHER, LOCK

90215-14055-00

Unavailable

NUT

90170-14800-00

$4.14

SHK/ABS ASSEMBLY, REAR

(1L9-22210-00-00)

Unavailable

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

NUT, CROWN(3BM)

90176-10073-00

$8.49

BOLT ROUND 214222410000

90106-10025-00

$5.60

CASE, CHAIN

(1L9-22311-00-33)

Unavailable

DAMPER, CHAIN CASE

278-22332-00-00

Unavailable

COLLAR(8R4)

90387-062N2-00

$9.49

WASHER, SPEC''L SHAP

90209-06034-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

BOLT, HEXAGON

97017-06020-00

Unavailable
