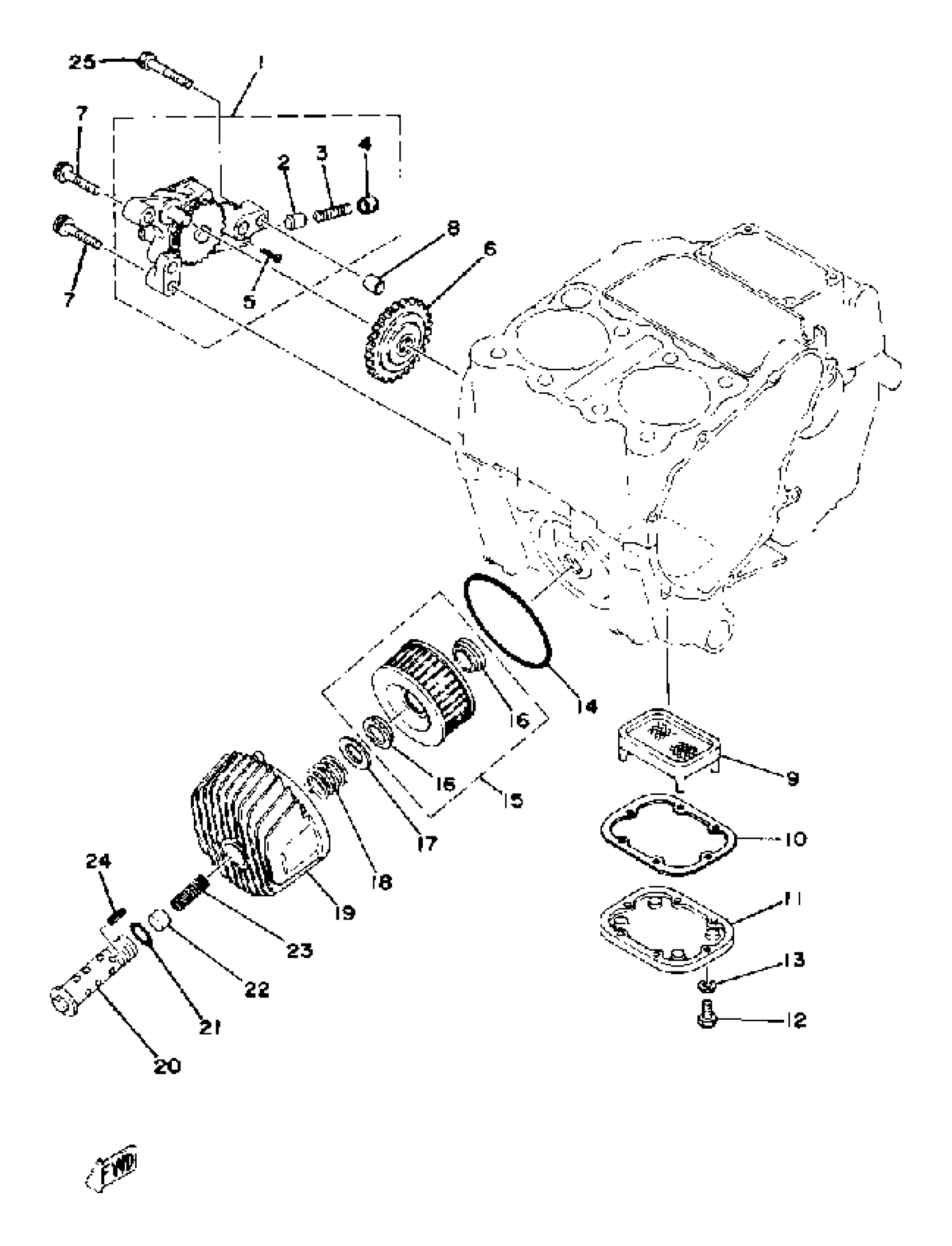

Yamaha XS400-2E (XS400) 1978 OIL PUMP - OIL CLEANER Diagram

#

Description
Price

1

OIL PUMP ASSY

1L9-13300-00-00

Unavailable

2

. PLUNGER, RELIEF

1L9-13483-00-00

Unavailable

3

SPRING, RELIEF

(1L9-13484-00-00)

Unavailable

4

RETAINER, RLIEF VLV

(1L9-13486-00-00)

Unavailable

5

PIN, COTTER(6L5)

91490-25030-00

$3.77

6

GEAR, OIL PUMP IDLE

1L9-13341-01-00

Unavailable

7

BOLT, SOCKET HEAD

91318-08035-00

Unavailable

8

PIN, DOWEL(3VD)

99530-10114-00

$2.55

9

STRAINER, OIL

1L9-13411-00-00

Unavailable

10

GASKET,STRNR CVR

1L9-13414-10-00

Unavailable

11

COVER, STRAINER

(1L9-13417-00-00)

Unavailable

12

BOLT, HEXAGON

97313-05016-00

Unavailable

13

WASHER, PLAIN (646)

92990-05600-00

$0.80

14

O-RING(1KF)

93210-87723-00

Unavailable

15

ELEMENT, OIL CLEANER

1L9-13441-11-00

$9.99

16

GROMMET (1L9)

90480-23193-00

Unavailable

17

WASHER, PLATE (1L9)

90201-21608-00

Unavailable

18

SPRING, COMPRESSION (1L9)

90501-20422-00

Unavailable

19

COVER, OIL ELEMENT

1L9-13447-01-00

Unavailable

20

BY-PASS VALVE ASSY

1L9-13340-01-00

Unavailable

21

O-RING (26H)

93210-16629-00

Unavailable

22

PISTON, BYPSS VALVE

(1L9-13345-00-00)

Unavailable

23

SPRING, COMPRESSION

90501-10421-00

Unavailable

24

PIN,SPRING

91690-20018-00

Unavailable

25

BOLT, SOCKET

91317-08045-00

Unavailable
