Description

Price

1

KICK AXLE ASSEMBLY

(1L9-15660-00-00)

Unavailable

2

SHIM 1

136-17417-00-10

Unavailable

3

GEAR, KICK

(2G5-15641-00-00)

Unavailable

4

CLIP

90468-26045-00

Unavailable

5

COVER,SPRING

278-15676-00-00

$5.49

6

SPRING TORSION 278156650000

90508-30051-00

$15.99

7

SPACER

371-15666-00-00

Unavailable

8

CIRCLIP(1AR)

99009-20400-00

$8.49

9

WASHER PLATE 132172160000

90201-20266-00

$9.49

10

OIL SEAL (20X30X7-371)

93102-20108-00

$11.49

11

BOSS, KICK CRANK

583-15621-00-00

$89.99

12

BOLT, HEXAGON

97013-08030-00

$2.49

13

KICK CRANK ASY

1L9-15620-01-93

Unavailable

14

BALL (12R)

93507-32031-00

$4.73

15

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

16

WASHER (3XVC)

90201-153A1-00

Unavailable

17

CIRCLIP

99006-10600-00

Unavailable

18

COVER, KICK LEVER

156-15618-01-00

Unavailable

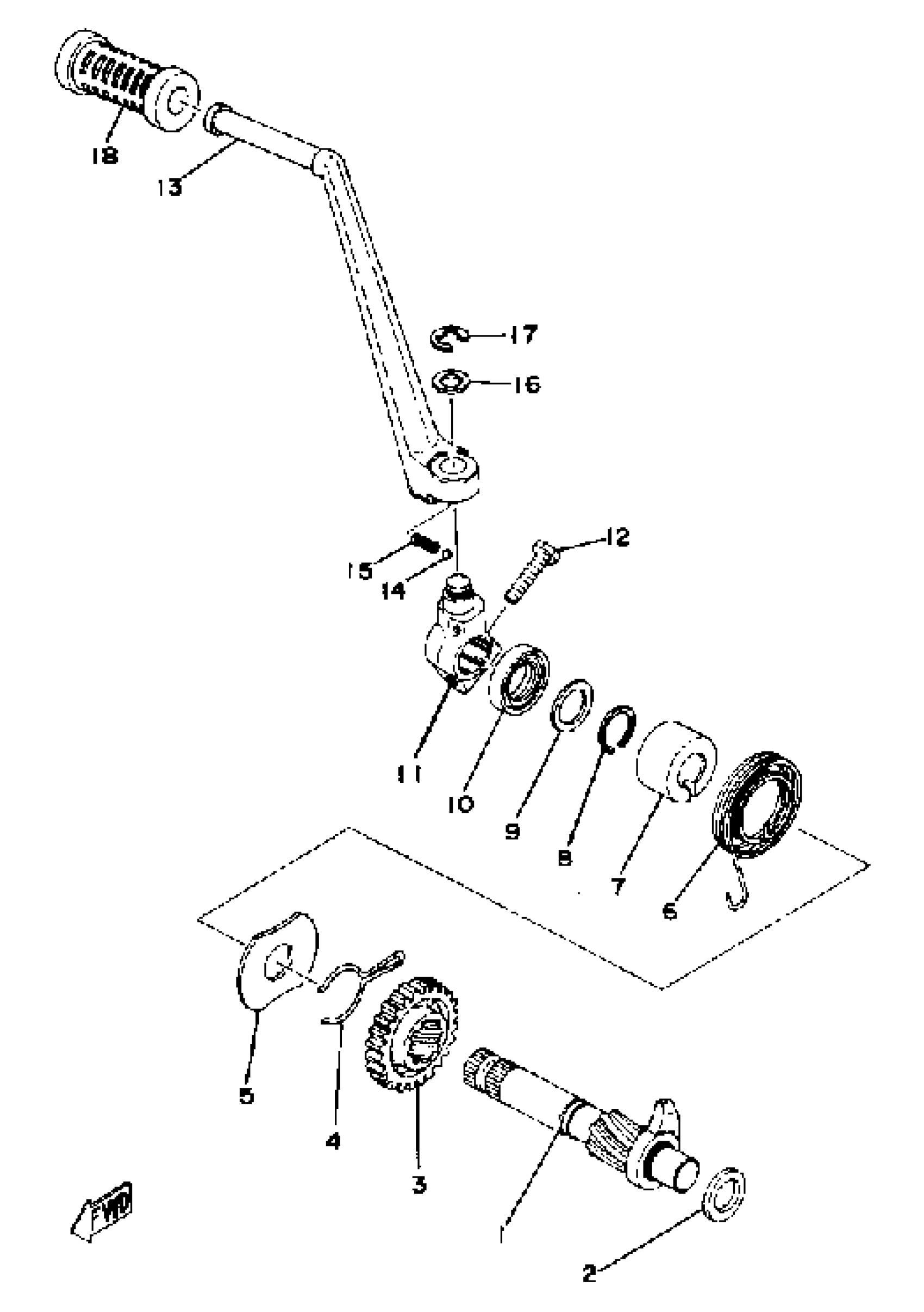

Yamaha XS400-2E (XS400) 1978 KICK STARTER Diagram

KICK AXLE ASSEMBLY

SHIM 1

GEAR, KICK

CLIP

COVER,SPRING

SPRING TORSION 278156650000

SPACER

CIRCLIP(1AR)

WASHER PLATE 132172160000

OIL SEAL (20X30X7-371)

BOSS, KICK CRANK

BOLT, HEXAGON

KICK CRANK ASY

BALL (12R)

SPRING COMPRESSION278156220000

WASHER (3XVC)

CIRCLIP

COVER, KICK LEVER
