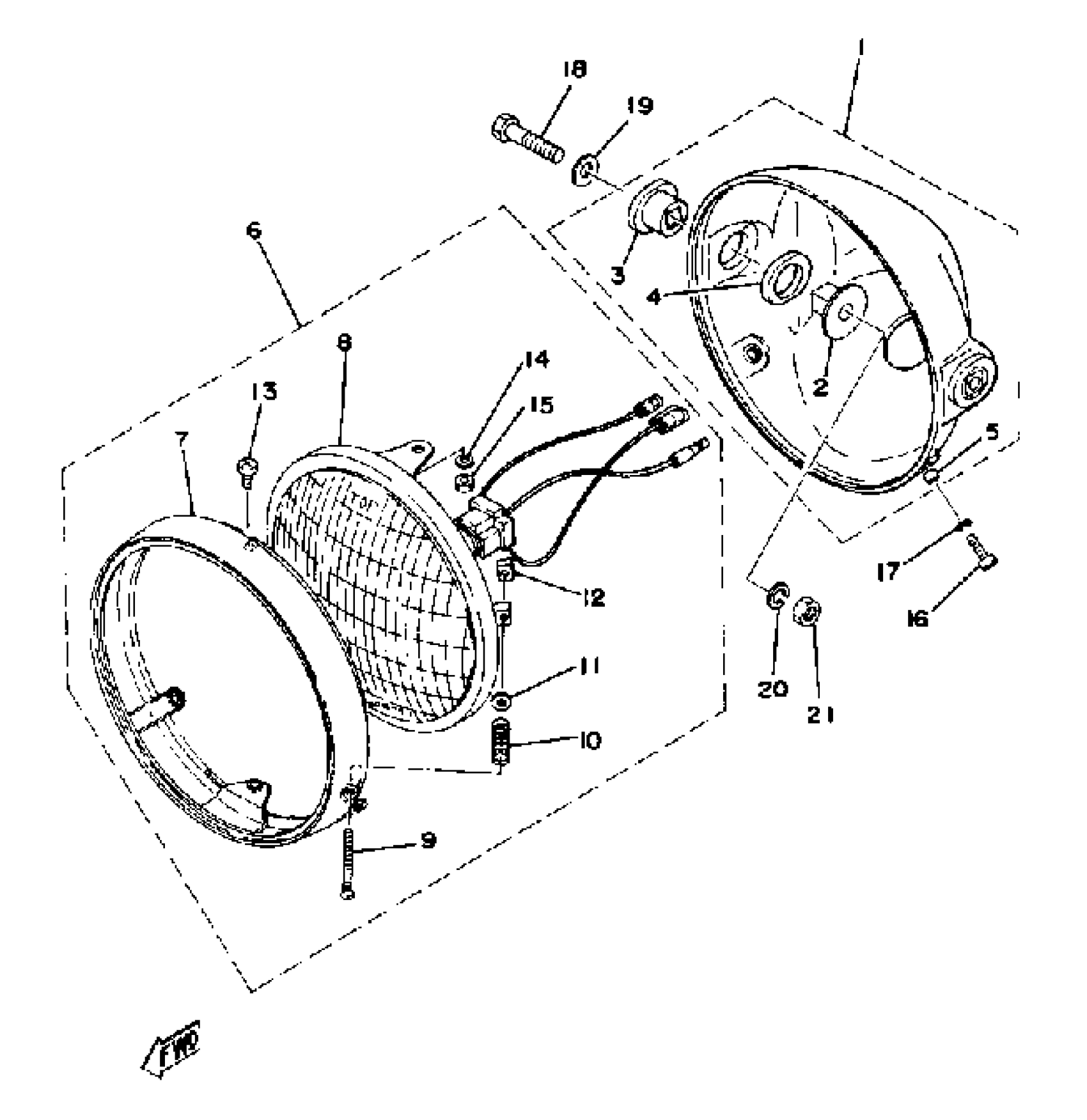

Yamaha XS400-2E (XS400) 1978 HEAD LAMP Diagram

#

Description
Price

1

BODY ASSEMBLY

(1T6-84330-60-00)

Unavailable

2

. SPACER

1L9-84327-60-00

Unavailable

3

. DAMPER, HEADLIGHT 1

1L9-84366-61-00

Unavailable

4

. DAMPER, HEADLIGHT 2

1L9-84367-61-00

Unavailable

5

. COLLAR, BODY FTNG

1L9-84338-60-00

Unavailable

7

RIM, HEAD LAMP

1L9-84315-60-00

Unavailable

8

. LENS ASSEMBLY

1L9-84320-61-00

Unavailable

9

SCREW, RIM ADJUSTING

4KG-84331-00-00

$7.99

10

SPRING,SCREW

3AA-84332-00-00

Unavailable

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

NUT, ADJUSTING

5PX-84334-00-00

$6.99

13

SCREW PAN HEAD

98580-06010-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

BOLT

97013-08035-00

Unavailable

19

WASHER, PLAIN

92990-08200-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

21

NUT(6L2)

95333-08600-00

Unavailable
