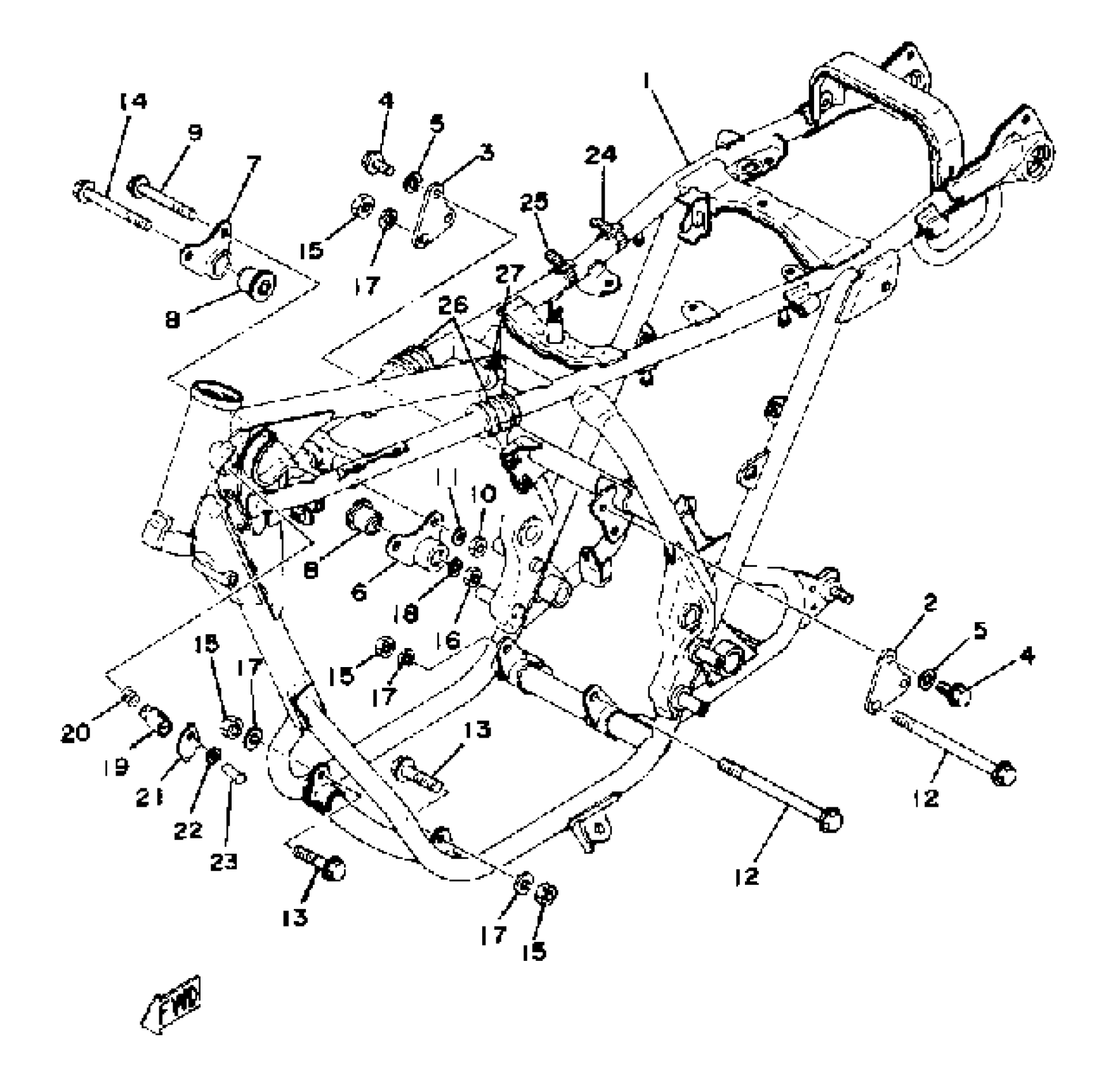

Yamaha XS400-2E (XS400) 1978 FRAME Diagram
#
Description
Price
1
FRAME
(2G5-21110-00-33)
Unavailable
2
STAY, ENGINE 2
(1L9-21315-00-00)
Unavailable
3
STAY, ENGINE 2
(2A2-21315-00-00)
Unavailable
6
STAY, ENGINE 3
1L9-21316-01-00
Unavailable
7
STAY, ENGINE 4
(1L9-21317-01-00)
Unavailable
8
DAMPER, ENG MOUNT 1
1A1-15316-00-00
Unavailable
12
BOLT, FLANGE
(95821-10145-00)
Unavailable
17
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
19
STEERING LOCK ASSY
2A6-23408-00-00
Unavailable
20
SPRING, CONICAL (1E6)
90502-09024-00
Unavailable
21
CAP, HANDLE LOCK
3DM-23484-00-00
Unavailable
22
WASHER, WAVE
90206-04003-00
Unavailable
23
RIVET 214234830000
90269-04003-00
Unavailable
24
BAND, SWITCH CORD
437-83936-01-00
Unavailable
25
BAND
341-26397-01-00
Unavailable
26
DAMPER, LOCATING 3
(1L9-24183-00-00)
Unavailable
27
BAND, SWITCH CORD
437-83936-11-00
Unavailable
