1978 Yamaha XS400 (XS400-2E) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1978 Yamaha XS400 (XS400-2E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

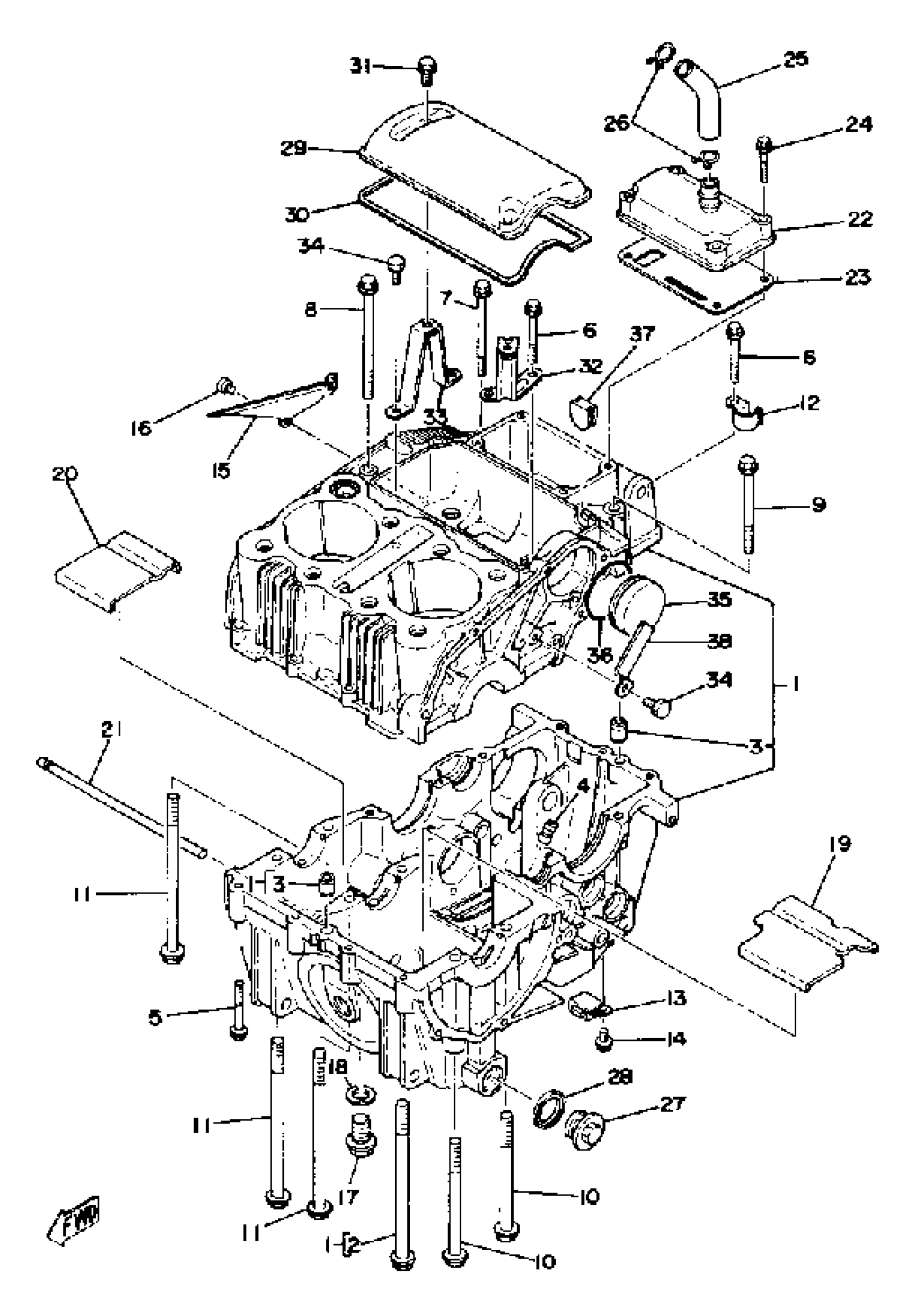

1978 Yamaha XS400 (XS400-2E) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(1L9-15100-01-00)

1
Out of stock

2

BOLT, WASHER BASED

90105-08084-00

1
Out of stock

3

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

4

NOZZLE 1

(1L9-15138-01-00)

1
Out of stock

5

BOLT, FLANGE

95817-06045-00

1

$6.18

In stock

6

BOLT, FLANGE

95817-06050-00

1
Out of stock

7

BOLT, WASHER BASED

(90105-06076-00)

1
Out of stock

8

BOLT, WASHER BASED

(90105-06077-00)

1
Out of stock

9

BOLT, FLANGE(JF2)

95817-08080-00

1

$3.37

In stock

10

BOLT, WASHER BASED

90105-08082-00

1
Out of stock

11

BOLT, WASHER BASED

90105-08084-00

1
Out of stock

12

CLAMP (1L9)

(90465-10092-00)

1
Out of stock

13

CLAMP

(90465-10110-00)

1
Out of stock

14

—

$1.62

In stock

15

COVER, OIL PUMP

(1L9-15412-00-00)

1
Out of stock

16

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

17

BOLT

90109-14385-00

—

$13.66

In stock

18

GASKET 256131670000

90430-14043-00

—

$6.46

In stock

19

PLATE, BUFFLE 1

(1L9-15123-00-00)

1
Out of stock

20

PLATE, BUFFLE 2

(1L9-15124-00-00)

1
Out of stock

21

BAR, BFL PLATE FXD

(1L9-15122-00-00)

1
Out of stock

22

BREATHER COVER ASSEMBLY

(1L9-11108-00-00)

1
Out of stock

23

GASKET, BRTHR COVER

1L9-11169-00-00

1
Out of stock

24

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

25

PIPE, BREATHER 1

(1L9-11166-00-00)

1
Out of stock

26

CLIP (371)

90467-14015-00

—

$7.51

In stock

27

PLUG, STRAIGT SCREW (2A2)

90340-22047-00

—

$13.74

In stock

28

GASKET (1L9)

90430-22144-00

—

$7.15

In stock

29

COVER, STRTG MOTOR

1L9-15436-00-00

1
Out of stock

30

GSKT, STRTG MTR CVR

1L9-15446-00-00

1
Out of stock

31

—

$1.62

In stock

32

STAY 1

(1T6-15544-00-00)

1
Out of stock

33

STAY 2

(1T6-15545-00-00)

1
Out of stock

34

BOLT(8CP)

97017-06014-00

—

$5.12

In stock

35

PLUG, SPEC''L SHAPE

(90338-46076-00)

1
Out of stock

36

O-RING(2HF)

93210-40745-00

—

$11.49

In stock

37

GROMMET (1T6)

90480-01209-00

—
Out of stock

38

CLAMP

(90463-14016-00)

1
Out of stock
