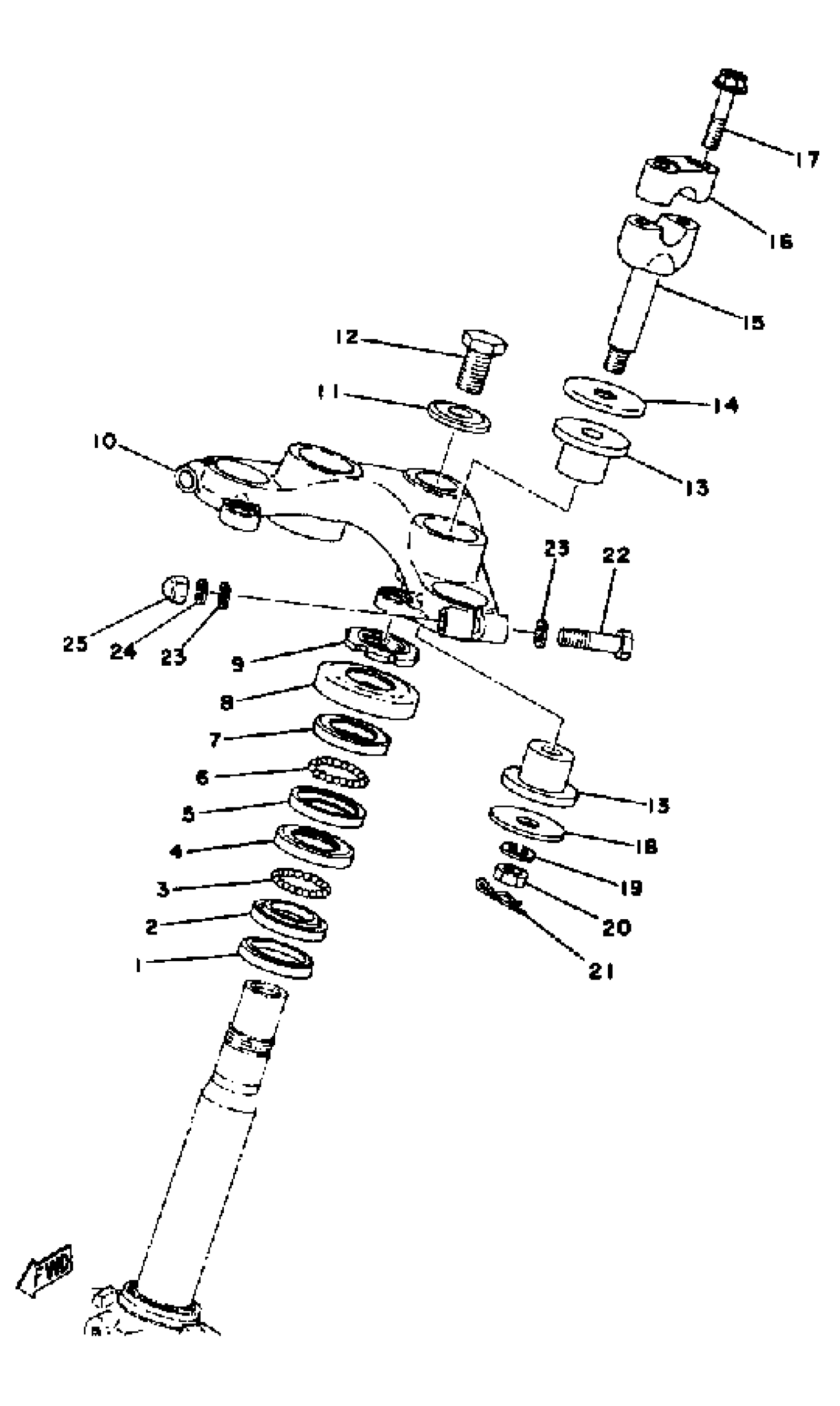

Yamaha XS360C (XS360) 1976 STEERING Diagram

#

Description
Price

1

SEAL, DUST

164-23462-00-00

$7.99

2

RACE, BALL 1

B6E-23411-00-00

$8.49

3

BALL

93501-04011-00

$8.49

4

RACE, BALL 2

B6E-23412-00-00

$13.49

5

RACE,BALL 2

4FP-F3412-10-00

Unavailable

6

BALL

93501-04011-00

$8.49

7

RACE, BALL 1

4FP-F3411-20-00

$9.99

8

COVER, BALL RACE

136-23415-00-00

$8.99

9

NUT

90179-25004-00

$24.99

10

CROWN, HANDLE

(1L9-23435-00-98)

Unavailable

11

WASHER, SPEC''L SHAP (341-23443-00)

90209-14023-00

Unavailable

12

BOLT (2A2)

90105-14102-00

$5.60

13

HOLDER, DAMPER

256-23434-01-00

Unavailable

14

WASHER (1J7)

90209-12151-00

Unavailable

15

HOLDER, HANDLE LOWER

4AA-23442-01-98

Unavailable

16

HOLDER, HANDLE UPPER

1E6-23441-00-00

Unavailable

17

BOLT, FLANGE

95814-08040-00

Unavailable

18

WASHER PLATE 256234440000

90201-10149-00

Unavailable

19

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

20

NUT (682)

95380-10700-00

Unavailable

21

CLIP 136253750000

90468-12006-00

Unavailable

22

BOLT, HEXAGON

97013-08055-00

Unavailable

23

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

25

NUT, CROWN

95303-08800-00

Unavailable
