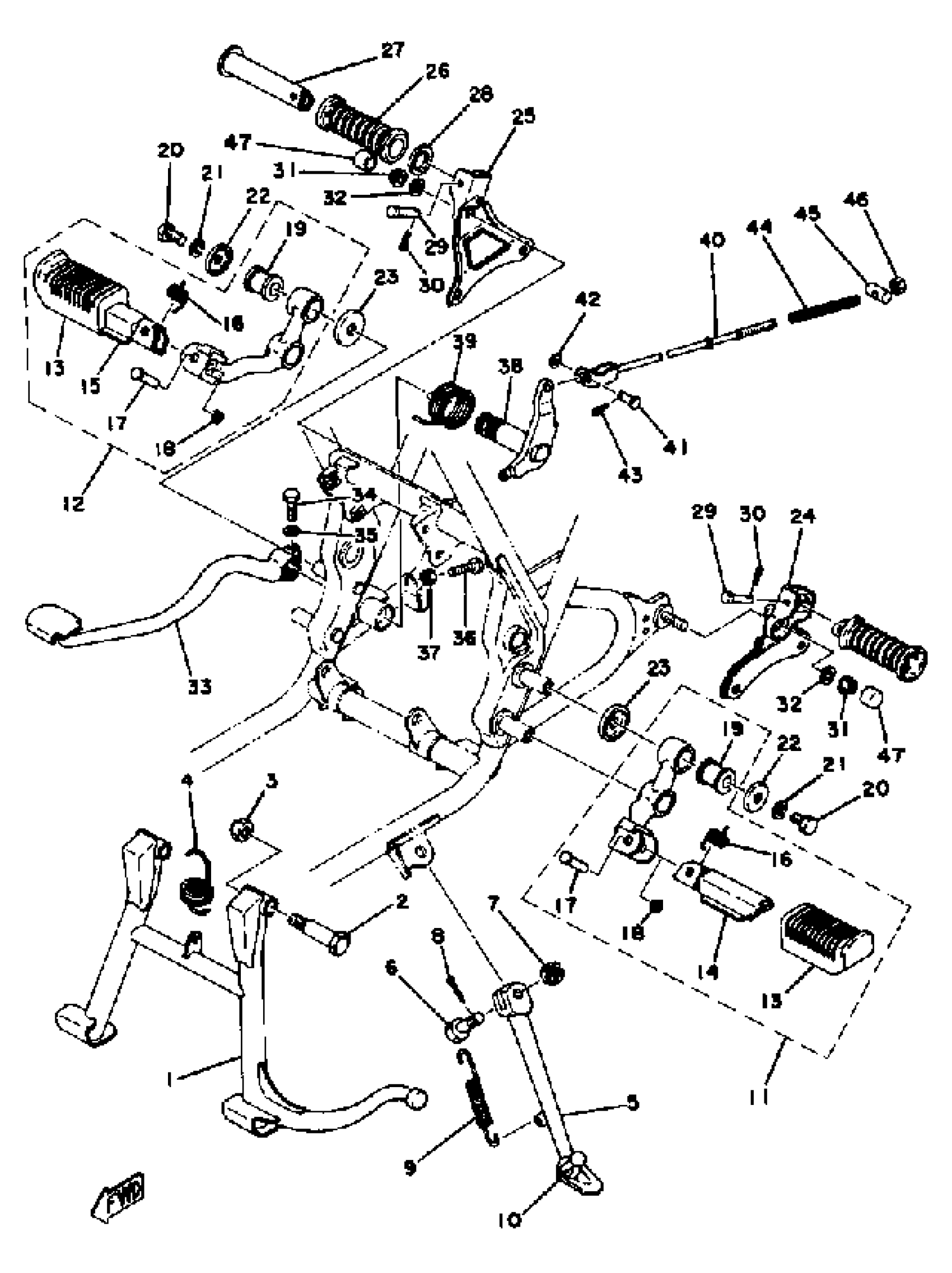

Yamaha XS360C (XS360) 1976 STAND FOOTREST BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

1L9-27311-02-00

Unavailable

2

BOLT

90109-10440-00

Unavailable

3

NUT, U

95617-10100-00

$8.49

4

SPRING, TENSION

90506-45063-00

Unavailable

5

STAND, MAIN

1L9-27311-02-33

Unavailable

6

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

7

NUT,CASTLE

90171-10049-00

Unavailable

8

PIN, COTTER

91490-20025-00

$1.99

9

SPRING, TENSION (1L9)

90506-26270-00

$15.99

10

STOPPER

278-27314-00-00

Unavailable

11

FRONT FOOTREST ASSEMBLY L

3F9-27410-00-33

Unavailable

12

FRT FOOTREST ASY R

4R4-27420-00-33

Unavailable

13

. COVER, FOOTREST

1A0-27423-00-00

Unavailable

13

COVER, FOOTREST

4L0-27423-00-00

$49.99

14

FOOTREST

3CK-27451-00-00

Unavailable

15

FOOTREST

3N6-27461-00-00

Unavailable

16

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

17

PIN (214-27418-00)

90243-08006-00

Unavailable

18

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

19

GROMMET(4CG)

90480-20543-00

Unavailable

20

BOLT, HEXAGON

97013-08016-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

WASHER, PLATE

90209-08150-00

Unavailable

23

WASHER, PLATE (1L9)

90209-12157-00

Unavailable

24

BRKT REAR FTREST L

99999-01090-00

Unavailable

25

. STAY, MUFFLER

2L0-21445-00-00

Unavailable

25

. BRACKET

2L0-27442-01-00

Unavailable

25

BRACKET

99999-01091-00

Unavailable

26

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

27

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

28

WASHER, PLATE (888)

90201-20279-00

Unavailable

29

PIN, WITH HOLE (465)

90240-06042-00

Unavailable

30

PIN, COTTER

91490-16020-00

Unavailable

31

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

32

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

33

PEDAL,BRAKE

1L9-27211-00-93

Unavailable

34

BOLT, HEXAGON

97017-06025-00

Unavailable

34

BOLT, HEXAGON

97017-06030-00

Unavailable

35

WASHER, SPRING

92995-06100-00

Unavailable

36

SCREW 341272170000

90153-06008-00

Unavailable

37

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

38

SHAFT, BRAKE PEDAL

1L9-27212-00-00

Unavailable

39

SPRING, TORSION

90508-35315-00

Unavailable

40

ROD, BRAKE

1L9-27231-00-00

Unavailable

41

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

42

WASHER, PLAIN (646)

92990-06600-00

Unavailable

43

PIN, COTTER

91490-25020-00

Unavailable

44

SPRING, (180-27236-00)

90501-10245-00

Unavailable

45

PIN 1562723700

90249-12008-00

Unavailable

46

NUT (25K)

90179-06411-00

Unavailable

47

CAP, TOOL BOX

262-21399-00-00

Unavailable
