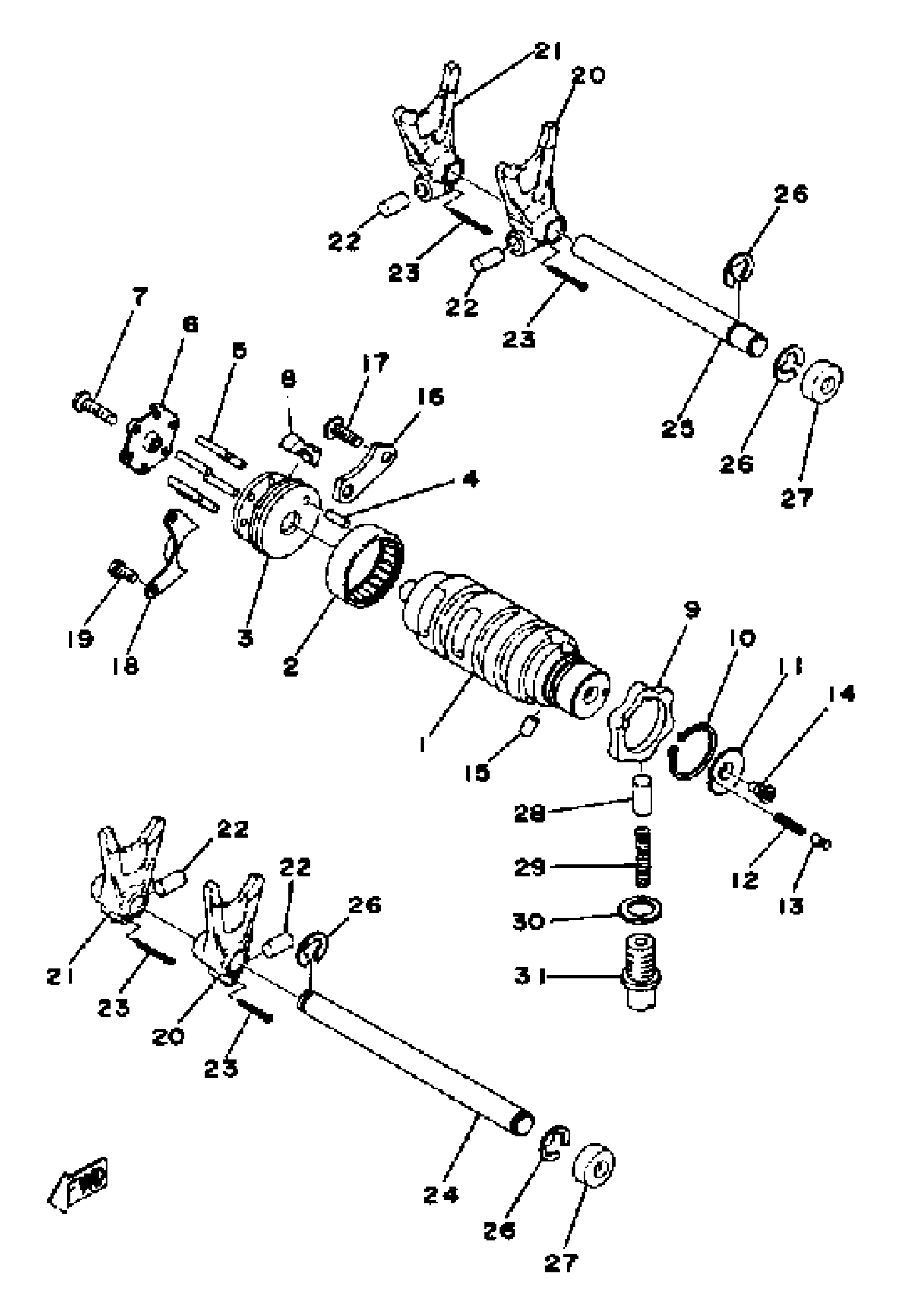

Yamaha XS360C (XS360) 1976 SHIFTER 1 Diagram

#

Description
Price

1

CAM, SHIFT

(360-18541-00-00)

Unavailable

2

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

$33.99

3

SEGMENT

(328-18185-00-00)

Unavailable

4

PIN,DOWEL (137)

93604-14012-00

$1.81

5

PIN,DOWEL (620)

93604-22050-00

$8.49

6

. PLATE, SIDE 1

328-18561-00-00

Unavailable

7

SCREW, FLAT

98707-05020-00

$7.49

8

PLATE, PAWL

(328-18352-10-00)

Unavailable

9

PLATE, STOPPER

(1L9-18141-00-00)

Unavailable

9

PLATE, STOPPER

360-18141-01-00

Unavailable

10

CIRCLIP(4A6)

99009-30400-00

$8.49

11

PLATE, SIDE 2

278-18566-00-00

Unavailable

12

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

13

POINT, NEUTRAL

4UN-18542-00-00

$8.99

14

SCREW, FLAT

98707-05012-00

$1.71

15

PIN, DOWEL (278)

93604-08071-00

Unavailable

16

PLATE, STOPPER 2

(328-18562-00-00)

Unavailable

17

SCREW, FLAT

98707-06014-00

Unavailable

18

GUIDE

328-18179-00-00

Unavailable

19

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

20

FORK, SHIFT 1

328-18511-01-00

Unavailable

21

FORK, SHIFT 2

328-18512-01-00

Unavailable

22

PIN, STRAIGHT

90250-08017-00

Unavailable

23

PIN, COTTER

91490-25020-00

Unavailable

24

BAR, SHIFT FORK GUIDE 1

278-18531-00-00

Unavailable

25

BAR, SHIF FRK GDE 2

(278-18535-00-00)

Unavailable

26

CIRCLIP

99006-10600-00

Unavailable

27

PLUG(3AJ)

90338-22207-00

Unavailable

28

STOPPER, CAM

278-18547-02-00

Unavailable

29

SPRING COMPRESSION278185570000

90501-10062-00

Unavailable

30

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

31

BOLT

90109-14002-00

Unavailable
