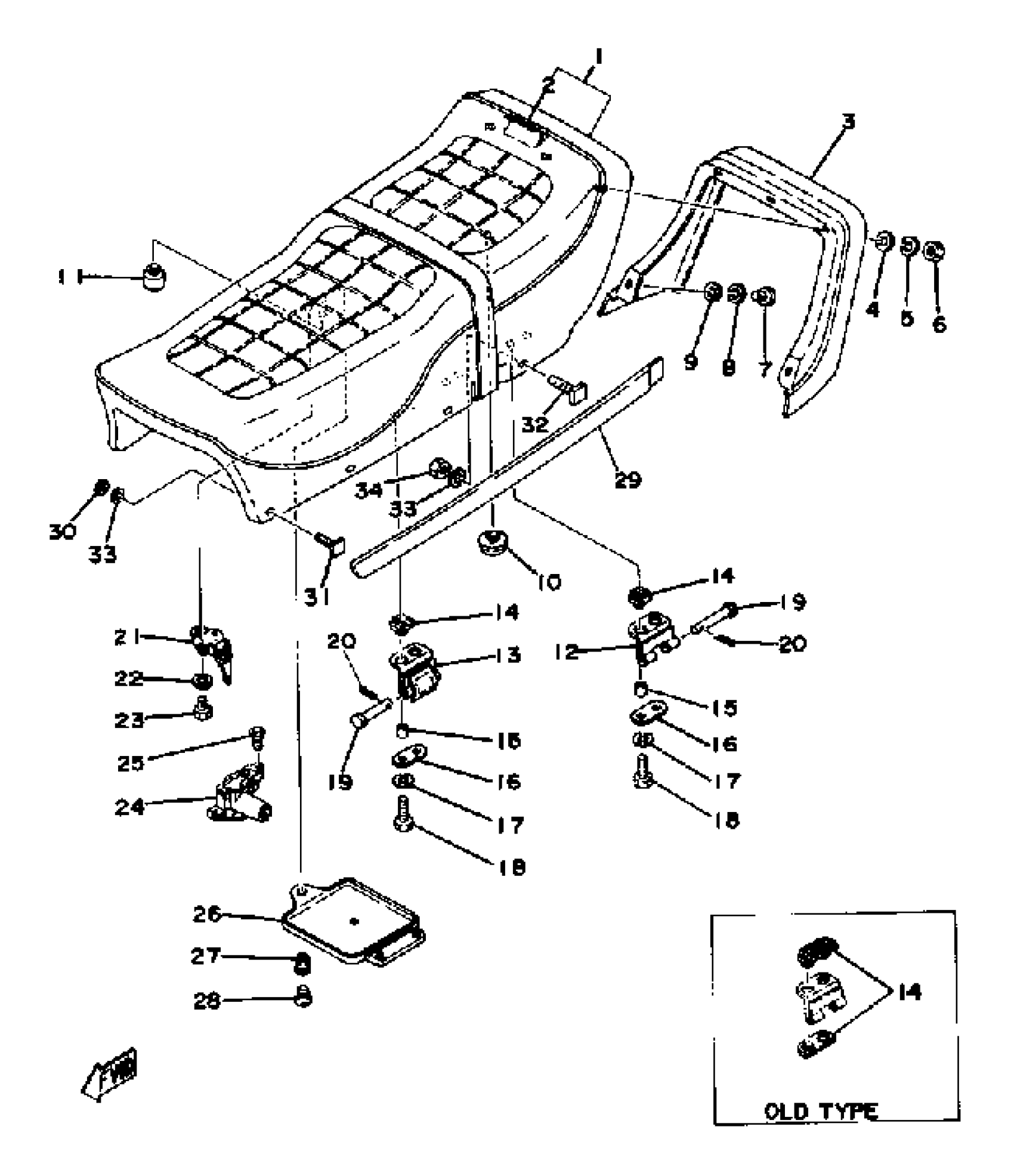

Yamaha XS360C (XS360) 1976 SEAT Diagram
#
1
DOUBLE SEAT ASSEMBLY
(1L9-W2472-01-00)
Unavailable
2
. COVER, DOUBLE SEAT
1L9-24731-00-00
Unavailable
3
COVER, TAIL
(1L9-24756-01-G3)
Unavailable
3
COVER, TAIL
(1L9-24756-01-U4)
Unavailable
7
BOLT, HEXAGON
97313-05016-00
Unavailable
12
HINGE, SEAT
1L9-24769-00-00
Unavailable
13
HINGE, SEAT
(1L9-24726-02-00)
Unavailable
14
DAMPER, SEAT
1J7-24723-00-00
Unavailable
14
DAMPER, SEAT
1J7-24723-00-00
Unavailable
15
COLLAR
90387-07020-00
Unavailable
16
WASHER, SEAT
1L9-24746-00-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
BOLT, HEXAGON
97017-06025-00
Unavailable
19
PIN, CLEVIS
91701-05055-00
Unavailable
20
CLIP (156-83525-00)
90468-10050-00
Unavailable
21
BRACKET, SEAT
371-24728-02-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
BOLT (661)
97013-06012-00
Unavailable
24
HELMET HANGER ASSY
4A3-24705-00-00
Unavailable
25
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
Unavailable
26
LID
2R6-28185-00-00
Unavailable
27
GROMMET (341-28187-00)
90480-06007-00
Unavailable
28
PLUNGER
341-28188-00-00
Unavailable
29
MOLD, SEAT
(1L9-24785-00-G3)
Unavailable
29
MOLD, SEAT
(1L9-24785-00-U4)
Unavailable
29
MOLD, SEAT
(1L9-24785-10-G3)
Unavailable
29
MOLD, SEAT
(1L9-24785-10-U4)
Unavailable
30
NUT, SPRING (1L9)
90183-04012-00
Unavailable
30
NUT, SPRING (1L9)
90183-04012-00
Unavailable
31
RIVET
(1L9-24789-00-00)
Unavailable
31
RIVET
(1L9-24789-00-00)
Unavailable
32
BOLT, LEVER FITTING
1J7-24777-00-00
Unavailable
32
BOLT, LEVER FITTING
1J7-24777-00-00
Unavailable
33
WASHER, SPECIAL
1J7-24722-00-00
Unavailable
34
NUT(6TA)
95307-04600-00
Unavailable
34
NUT(6TA)
95307-04600-00
Unavailable
