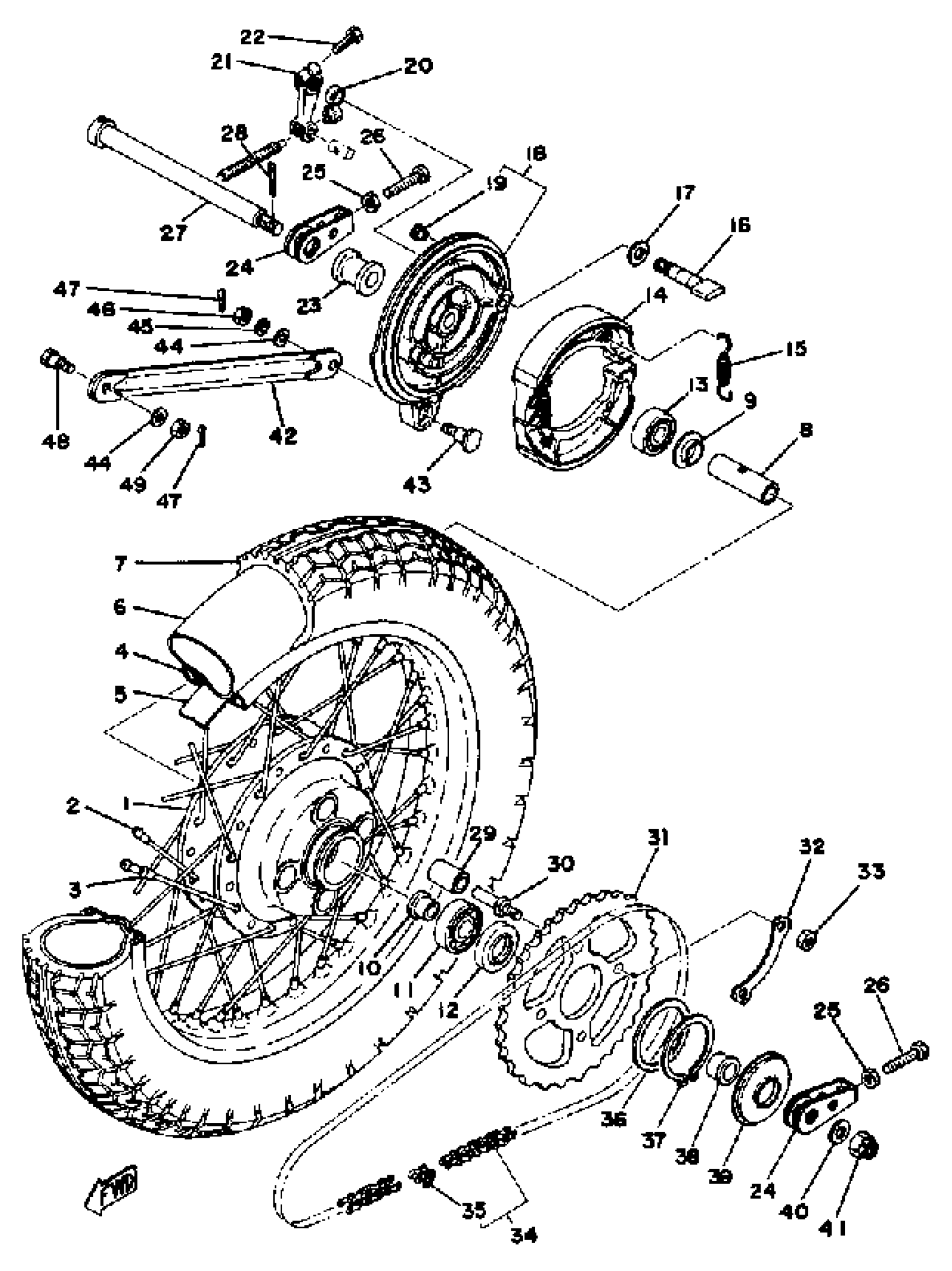

Yamaha XS360C (XS360) 1976 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(1L9-25311-00-00)

Unavailable

2

SPOKE SET, REAR

1L9-25304-00-00

Unavailable

3

BALANCER, WHEEL

3HT-25398-00-00

$7.99

4

RIM 1.85X18

94418-18026-00

Unavailable

5

BAND, RIM (2J4)

94340-18086-00

$17.99

6

TUBE (2RH)

94232-18113-00

$29.99

7

350X18 BS 21R

(94135-18360-00)

Unavailable

8

SPACER

90560-17162-00

Unavailable

9

FLANGE, SPACER

146-25315-00-00

$7.99

10

COLLAR, WHEEL

1A1-25377-00-00

Unavailable

11

BEARING(3BC)

93306-30437-00

$66.99

12

OIL SEAL (27X52X5-256)

93104-27026-00

$19.99

13

BEARING(4HM)

93306-30317-00

$39.99

14

BRAKE SHOE KIT

1HX-W253E-00-00

$36.99

15

SPRING, TENSION 2462533300

90507-20002-00

$8.49

16

CAMSHAFT

214-25351-01-00

Unavailable

17

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

18

BRAKE SHOE PLATE ASSEMBLY

(1L9-25320-00-00)

Unavailable

19

GROMMET (397)

90480-10068-00

Unavailable

20

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

21

LEVER, CAMSHAFT

1L9-25355-00-00

Unavailable

22

BOLT, HEXAGON

97017-06025-00

Unavailable

23

COLLAR, WHEEL

148-25383-00-00

Unavailable

24

PULLER,CHAIN 2

12R-25389-00-00

Unavailable

25

NUT, HEXAGON (509)

90170-08158-00

Unavailable

26

BOLT

90101-08060-00

Unavailable

27

AXLE, WHEEL

1J3-25381-00-00

Unavailable

28

PIN, COTTER

91490-30030-00

Unavailable
