Description

Price

1

MASTER CYLINDER ASSY

1J3-25850-02-00

Unavailable

2

CYLINDER KIT, MASTER

535-W0041-60-00

$144.99

3

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

4

. GASKET

1J3-25855-01-00

Unavailable

5

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

Unavailable

6

SCREW, FLAT

98707-05014-00

$9.49

7

BRACKET, MASTER

1J3-25867-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92995-06100-00

Unavailable

10

PLUG (341-26329-00)

90338-09012-00

$9.49

11

LEVER R

341-83922-00-00

Unavailable

12

SCREW

90146-06005-00

Unavailable

12

SCREW (2L0)

90149-06131-00

$8.49

13

NUT HEXAGON 306839270000

90170-06010-00

$8.49

14

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

15

BOLT (4L0)

90109-06577-00

Unavailable

15

BOLT (4L0)

90109-06577-00

Unavailable

16

NUT(650)

95380-06700-00

Unavailable

16

NUT, SELF-LOCKING

95617-06100-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

Unavailable

19

BOOT, MASTER CYLINDER

360-25862-00-00

Unavailable

20

HOSE, BRAKE

1L9-25872-00-00

Unavailable

21

HOLDER, BRAKE HOSE

1L9-95876-00-00

Unavailable

22

BOLT, HEXAGON

97017-06025-00

$4.24

23

WASHER, SPRING

92995-06100-00

Unavailable

24

BOOT, CALIPER

1L9-25862-00-00

Unavailable

25

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

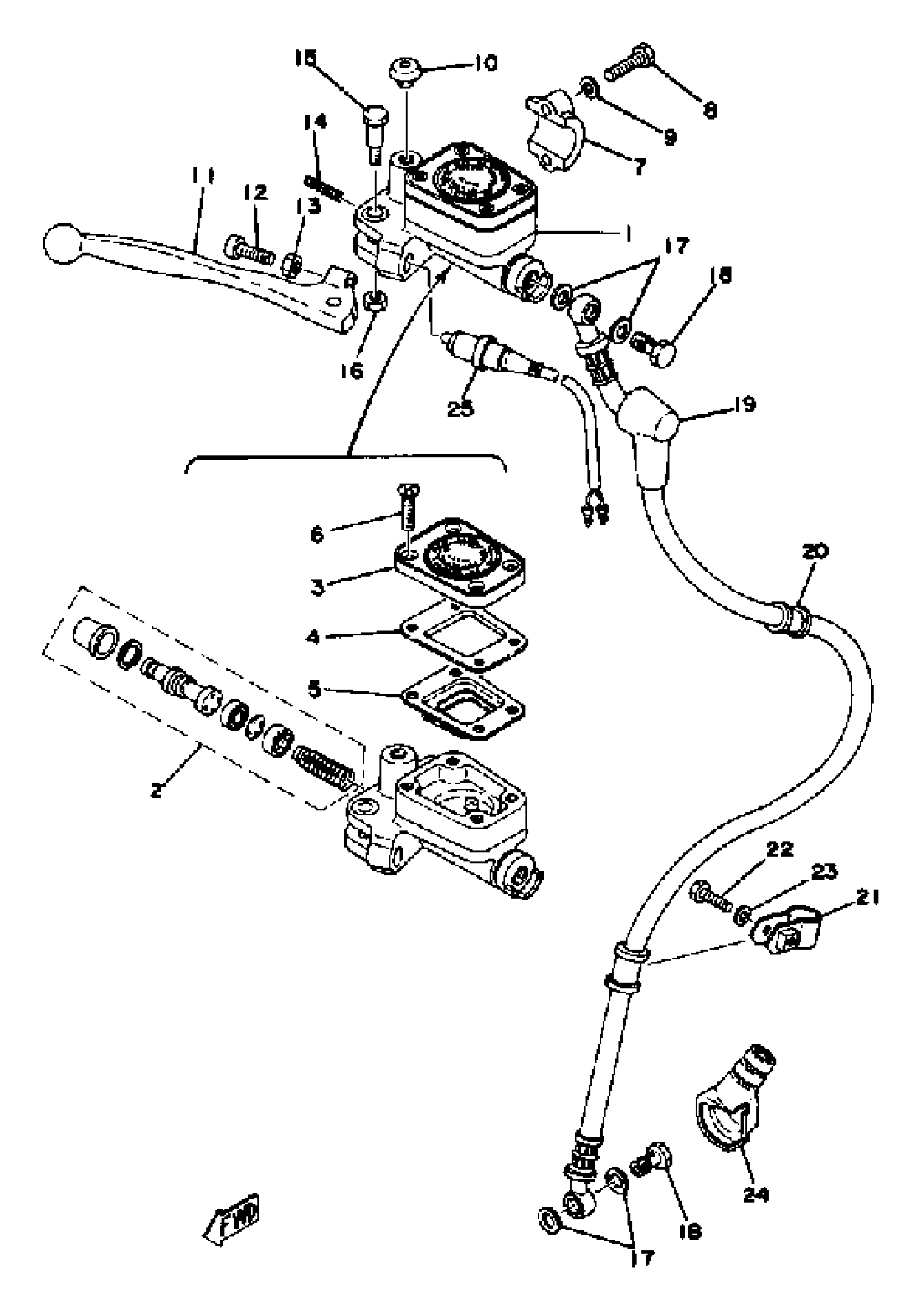

Yamaha XS360C (XS360) 1976 MASTER CYLINDER BRAKE HOSE Diagram

MASTER CYLINDER ASSY

CYLINDER KIT, MASTER

. RESERVOIR CAP ASSY

. GASKET

DIAPHRAGM, RESERVOIR

SCREW, FLAT

BRACKET, MASTER

BOLT, HEXAGON

WASHER, SPRING

PLUG (341-26329-00)

LEVER R

SCREW

SCREW (2L0)

NUT HEXAGON 306839270000

SPRING COMPRESSION306839240000

BOLT (4L0)

BOLT (4L0)

NUT(650)

NUT, SELF-LOCKING

WASHER, PLATE(481)

BOLT, UNION(3GM)

BOOT, MASTER CYLINDER

HOSE, BRAKE

HOLDER, BRAKE HOSE

BOLT, HEXAGON

WASHER, SPRING

BOOT, CALIPER

FRONT STOP SWITCH ASSY
