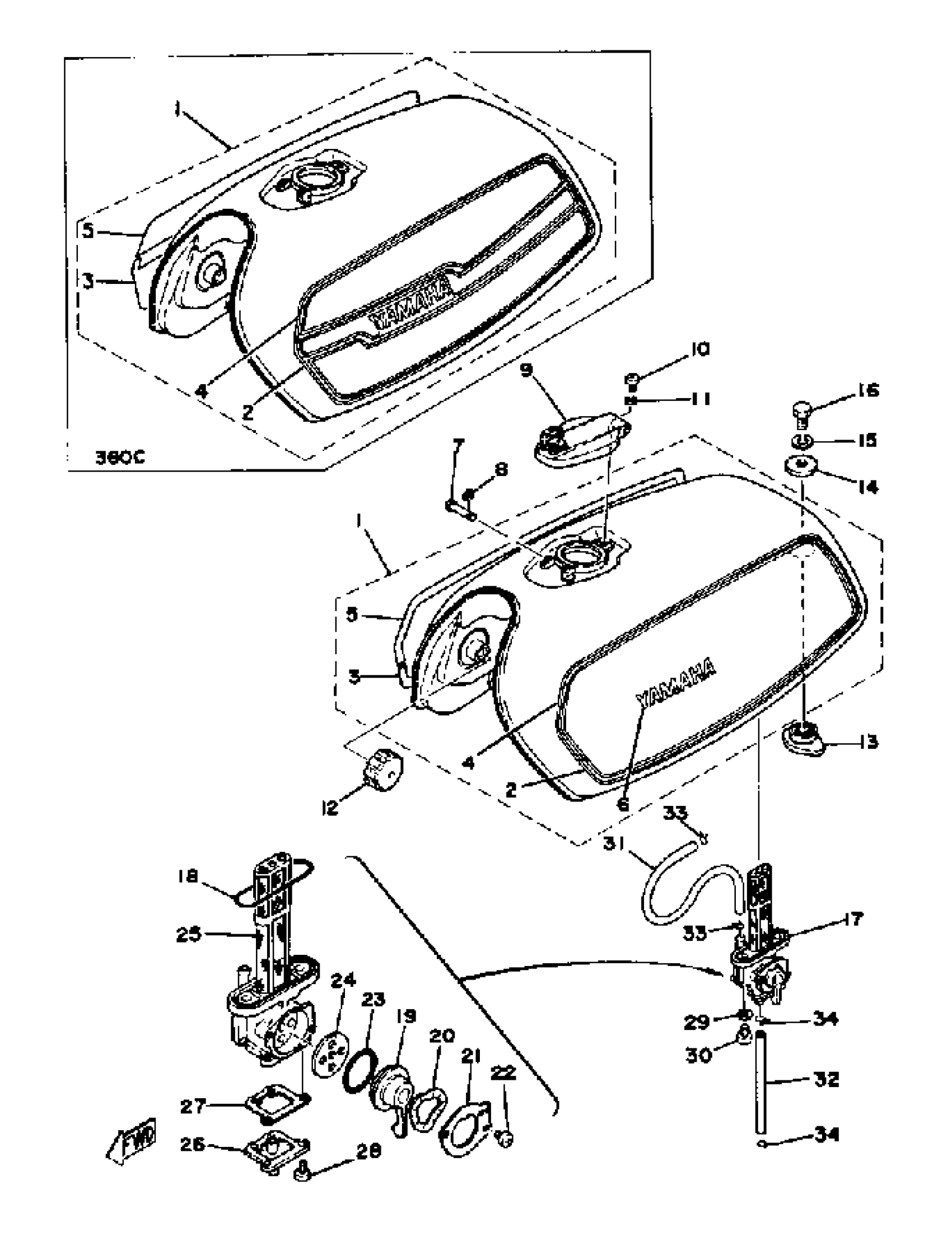

Yamaha XS360C (XS360) 1976 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(1L9-24110-00-01)

Unavailable

1

UNAVAILABLE IN PRICE BOOK

1L9-24110-00-66

Unavailable

2

GRAPHIC, FUEL TANK 1

(1L9-24244-00-00)

Unavailable

2

GRAPHIC, FUEL TANK 1

(1L9-24244-10-00)

Unavailable

3

GRAPHIC, FUEL TANK 2

(1L9-24245-00-00)

Unavailable

3

GRAPHIC, FUEL TANK 2

(1L9-24245-10-00)

Unavailable

4

GRAPHIC, FUEL TANK 3

(1L9-24246-00-00)

Unavailable

4

. GRAPHIC, FUEL TANK 3

1L9-24246-10-00

Unavailable

5

GRAPHIC, FUEL TANK 4

(1L9-24247-00-00)

Unavailable

5

. GRAPHIC, FUEL TANK 4

1L9-24247-10-00

Unavailable

6

. EMBLEM 1

1H2-24161-00-00

Unavailable

7

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

8

CIRCLIP (604)

93430-02001-00

$8.49

9

CAP ASSEMBLY

1E7-24602-00-00

Unavailable

10

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

12

DAMPER, LOCATING 1

1L9-24181-00-00

Unavailable

13

DAMPER, LOCATING 2

(1L9-24182-00-00)

Unavailable

14

WASHER

90209-08008-00

Unavailable

15

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

16

BOLT(JA9)

90101-08691-00

Unavailable

17

FUEL COCK ASY 1

3X8-24500-00-00

Unavailable

18

O-RING

1J7-24512-00-00

Unavailable

19

. LEVER, COCK

1J7-24524-00-00

Unavailable

20

. WASHER, WAVE

1J7-24518-00-00

Unavailable

21

. PLATE, LVR FITTING

1J7-24525-00-00

Unavailable

22

SCREW, OVAL HEAD

(98601-03010-00)

Unavailable

23

SEAL, FUEL COCK

1J7-24534-00-00

Unavailable

24

VALVE

16G-24523-00-00

Unavailable

25

. NET, FILTER 1

1J7-24514-02-00

Unavailable

26

CUP, FILTER

(1L9-24521-00-00)

Unavailable

27

GASKET, DRAIN COVER

1J7-24522-00-00

Unavailable

28

SCREW, FLAT

98707-04008-00

Unavailable

29

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

30

SCREW 366241430000

90149-06008-00

Unavailable

31

HOSE (L570)

90445-07MF1-00

Unavailable

32

HOSE (6-120) (813-24316-00)

90445-10132-00

Unavailable

33

CLIP (1J7)

90467-07029-00

Unavailable

34

CLIP

90467-090A2-00

Unavailable
