1976 Yamaha XS360 (XS360C) Front Wheel Diagram

← All diagrams

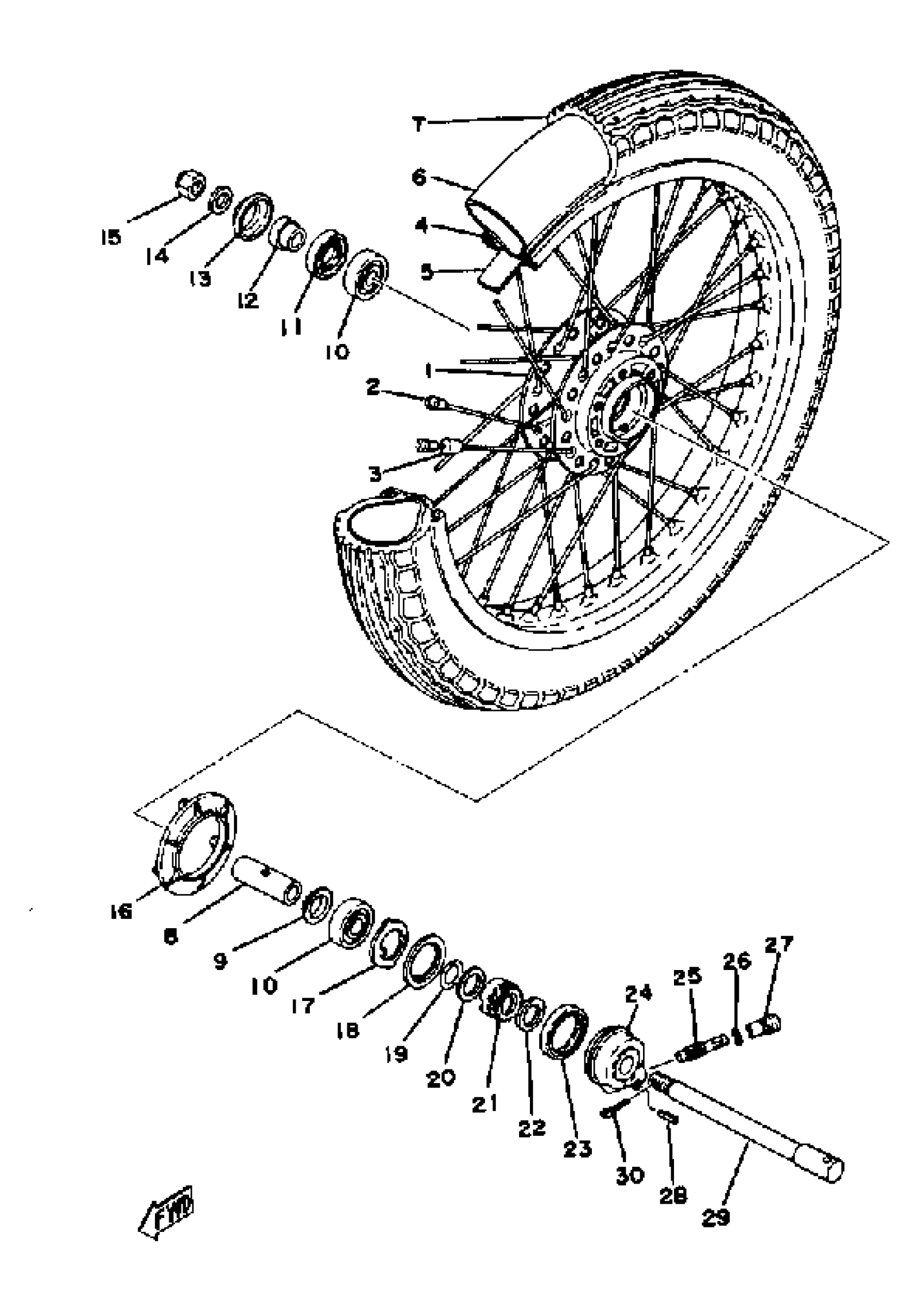

Find the part on the Front Wheel diagram for your 1976 Yamaha XS360 (XS360C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha XS360 (XS360C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(1L9-25111-00-00)

1
Out of stock

2

SPOKE SET, FRONT

351-25104-00-00

1
Out of stock

3

BALANCER, WHEEL

3HT-25398-00-00

1
Out of stock

4

RIM 1.85X18

(94418-18084-00)

1
Out of stock

5

UNAVAILABLE IN PRICE BOOK

95325-18043-00

1
Out of stock

6

TUBE (5H5)

94227-18195-00

1
Out of stock

7

YOKO 300S18 Y986

(94130-18363-00)

1
Out of stock

8

SPACER (1L9)

90560-15161-00

—
Out of stock

9

FLANGE, SPACER

146-25115-00-00

1
Out of stock

10

BEARING

93306-30212-00

1
Out of stock

11

OIL SEAL (22X42X7)

93102-22014-00

1
Out of stock

12

COLLAR (1L9)

90387-15550-00

1
Out of stock

13

COVER, DUST

401-25367-00-00

—
Out of stock

14

WASHER, PLAIN

92990-14200-00

1
Out of stock

15

NUT, CASTLE(2UJ)

90171-14056-00

1
Out of stock

16

COVER, HOUSING

1L9-25847-00-00

1
Out of stock

17

CLUTCH, METER (371,447)

341-25149-00-00

—
Out of stock

18

RETAINER, CLUTCH (371,447)

341-25846-00-00

—
Out of stock

19

RING, STOP

341-25137-00-00

1
Out of stock

20

WASHER PLATE 341251470000

90201-25286-00

—
Out of stock

21

GEAR, DRIVE

(351-25135-00-00)

1
Out of stock

22

WASHER PLATE 152172260000

90201-25490-00

—
Out of stock

23

OIL SEAL (45X56X6)

93105-45017-00

—
Out of stock

24

GEAR UNIT ASY

31A-25190-10-00

1
Out of stock

25

GEAR, METER

351-25138-00-00

1
Out of stock

26

SHIM, ROD

102-18416-00-00

1
Out of stock

27

BUSH

306-25136-00-00

1
Out of stock

28

PIN, SPRING (V60)

91609-20014-00

—
Out of stock

29

AXLE, WHEEL

1L9-25181-00-00

1
Out of stock

30

PIN, COTTER

91490-30030-00

—
Out of stock
